Product Specification

Overview

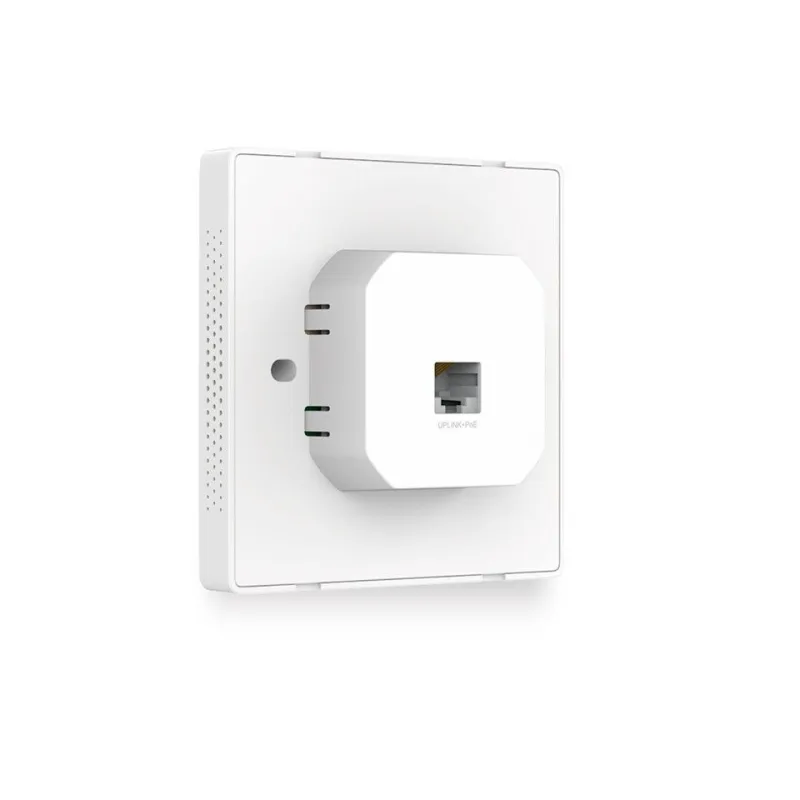

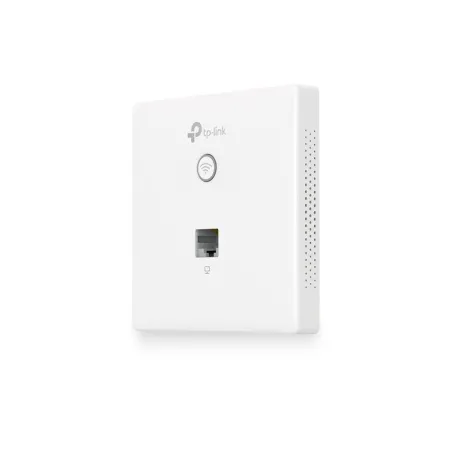

TP-LINK EAP115-WALL Wall-Plate Wireless Access Point มาตรฐาน 802.11N 2.4GHz ความเร็วสูงสุดรวม 300Mbps เสาภายใน 1.8dBi กระจายสัญญาณรอบทิศทาง รองรับ Omada Controller, Captive portal รองรับ POE 802.3af

10/100Mbps Ethernet (RJ-45) Port *2

LED/Wi-Fi Button、RESET

PoE(IEEE 802.3af)

2.8 W

3.4×3.4×1.2 in. (86.8*86.8*30.2 mm)

Internal 2*1.8dBi Omni

Wall Plate Mounting

-

Yes

IEEE 802.11n/g/b

2.4GHz

11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

CE：
≤20dBm(2.4GHz)

Multiple SSIDs（Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Local LAN port based VLAN
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK

Yes

Yes

Yes

Yes

v1,v2c

Local/Remote Syslog

Yes

HTTP/HTTPS

Yes

Yes

Yes

CE, RoHS

300Mbps Wireless N Wall-Plate Access Point EAP115-Wall
Installation Guide
Mounting Screw

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

รับประกัน

Limited lifetime
