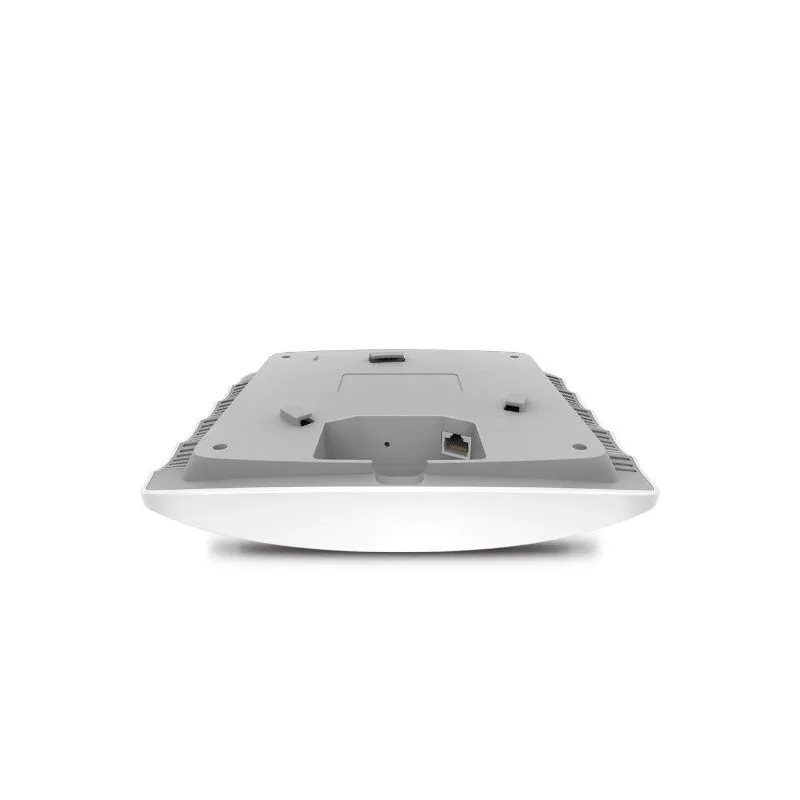

Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE)
Physical Security Lock
Yes
Button
Reset
Power Supply
802.3af/at PoE 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)
Power Consumption
EU: 9.7W US: 12.1W
Dimensions(WxDxH)
8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna Type
3 Internal Omni 2.4 GHz: 4 dBi 5 GHz: 5 dBi
Mounting

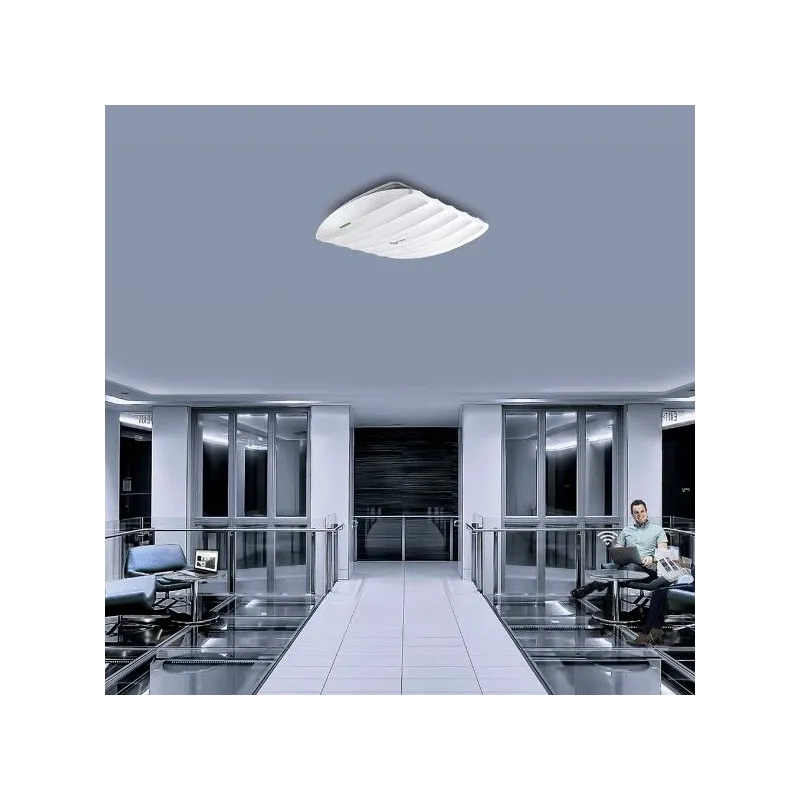

Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz:Up to 867 Mbps 2.4 GHz:Up to 450 Mbps
Wireless Functions
Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Seamless Roaming* Omada Mesh* Band Steering Load Balance MU-MIMO Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication* Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support

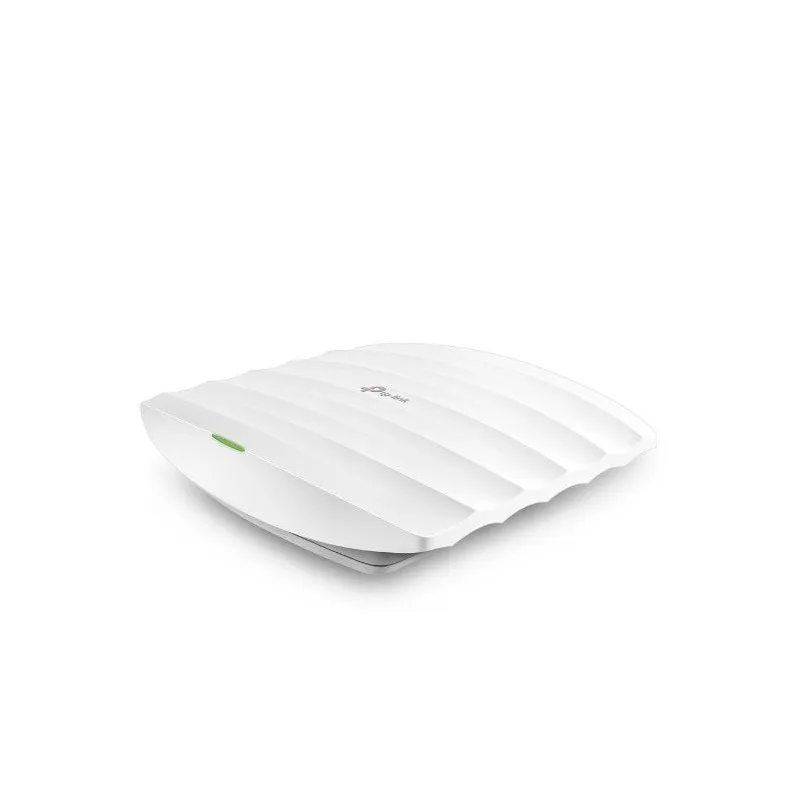

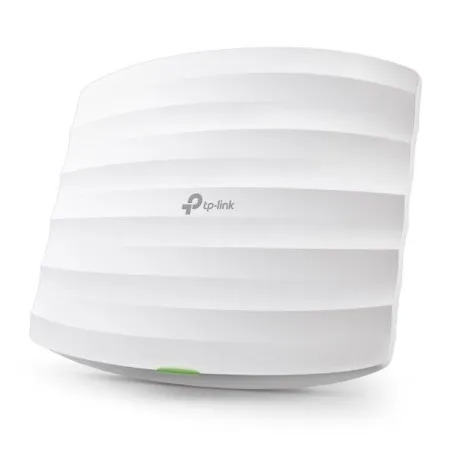

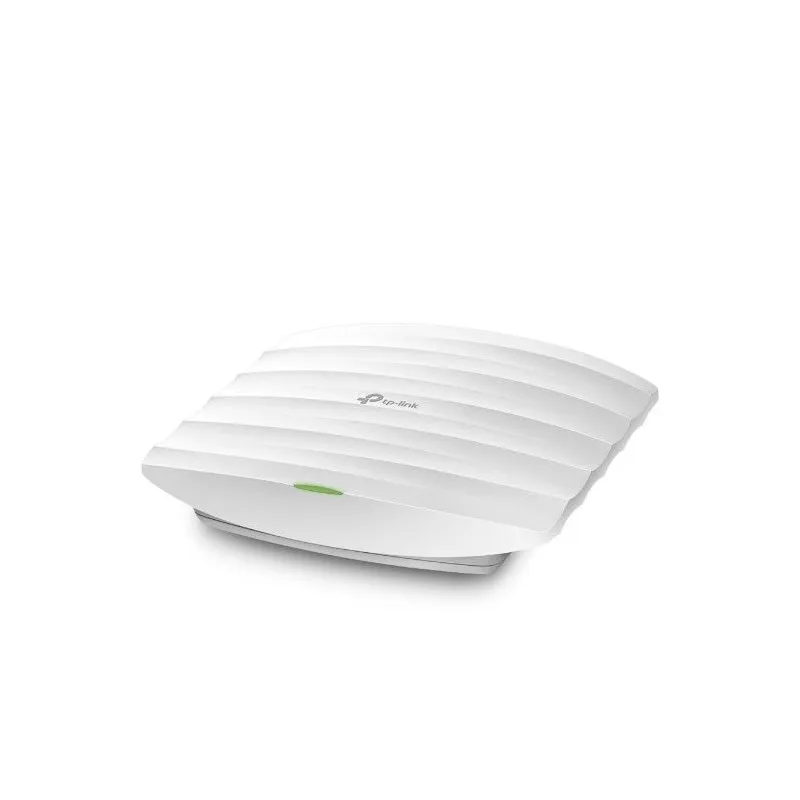

TP-Link EAP223 An Affordable Business-Class 802.11ac MU-MIMO Wi-Fi Solution
TP-Link EAP223 Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP223 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.†
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Secure Guest Network with Facebook Wi-Fi and SMS Authentication
The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.*
Multiple PoE Options for Easy Installation
EAP223 supports both 802.3af/at PoE and Passive PoE power supply, which can be either powered by a PoE switch or the PoE adapter, making deployment effortless and flexible.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
