Product Specification
|
|
Overview
|

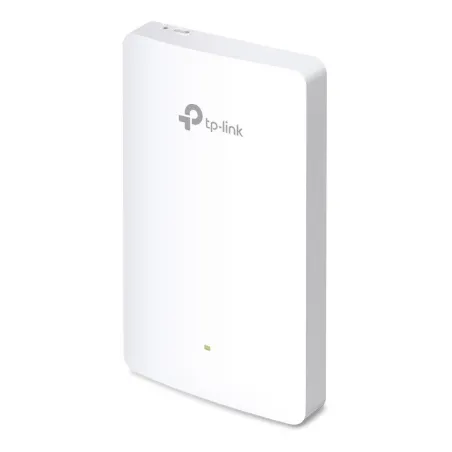

TP-LINK EAP225-WALL Omada AC1200 Wireless MU-MIMO Wall-Plate Dual-Radio กระจายสัญญาณ 2 ย่านความถี่ 2.4/5GHz มาตรฐาน AC ความเร็วสูงสุดรวม 1200Mbps เสาภายใน 3dBi/ 4dBi กระจายสัญญาณรอบทิศทาง รองรับ Omada Controller, Captive portal รองรับ POE มาตรฐาน 802.3af/af
|
|
Interface
|
Uplink: 10/100Mbps Ethernet Port*1
Downlink: 10/100Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.)
|
|
Power Supply
|
802.3af/802.3at PoE
|
|
Power Consumption
|
9 watts /25.5 watts (PoE Out Included)
|
|
Dimensions
|
143 × 86 × 19.7mm (5.6 × 3.4 × 0.8 in)
|
|
Antenna
|
2 Dual-Band Antennas
2.4GHz: 2*3dBi
5GHz: 2*4dBi
|
|

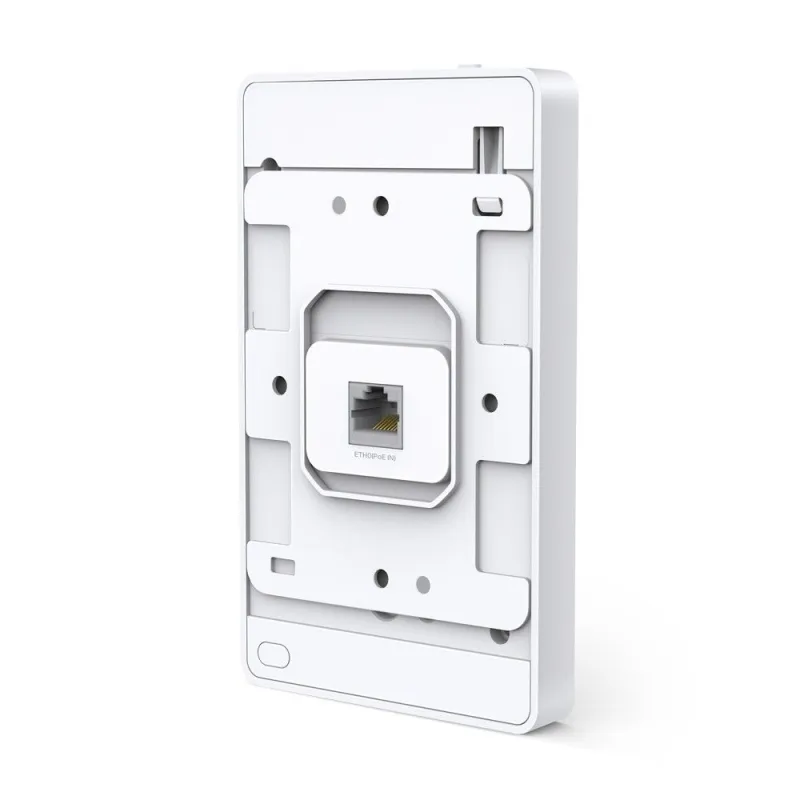

Mounting
|
Wall Plate Mounting
|
|
Wireless Standards
|
IEEE 802.11n/g/b/ac
|
|
Frequency
|
2.4GHz and 5GHz
|
|
Wireless Functions
|
16 SSIDs（Up to 8 SSIDs on each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
|
|
Wireless Security
|
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Local LAN port based VLAN
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
|
|
Omada Cloud Access
|
Yes
|
|
Omada Cloud Controller
|
Yes
|
|
Omada Controller Software
|
Yes
|
|
Email Alerts
|
Yes
|
|
LED ON/OFF Control
|
Yes
|
|
Management MAC Access Control
|
Yes
|
|
SNMP
|
v1,v2c
|
|
System Logging Local/Remote Syslog
|
Local/Remote Syslog
|
|
Telnet
|
Yes
|
|
Web-based Management
|
HTTP/HTTPS
|
|
L3 Management
|
Yes
|
|
Multi-site Management
|
Yes
|
|
Management VLAN
|
Yes
|
|
Certification
|
CE, FCC, RoHS
|
|
Package Contents
|
AC1200 MU-MIMO Wall-Plate Access Point
EAP225-Wall
Installation Guide
Mounting Screw
|
|
System Requirements
|
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
|
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
|
รับประกัน
|
Limited lifetime
|
