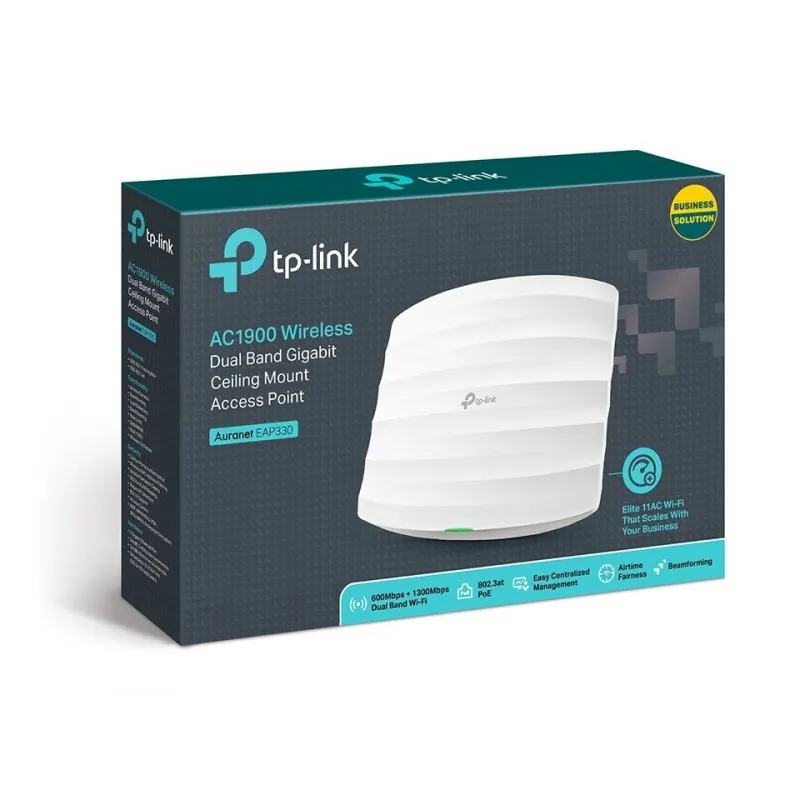

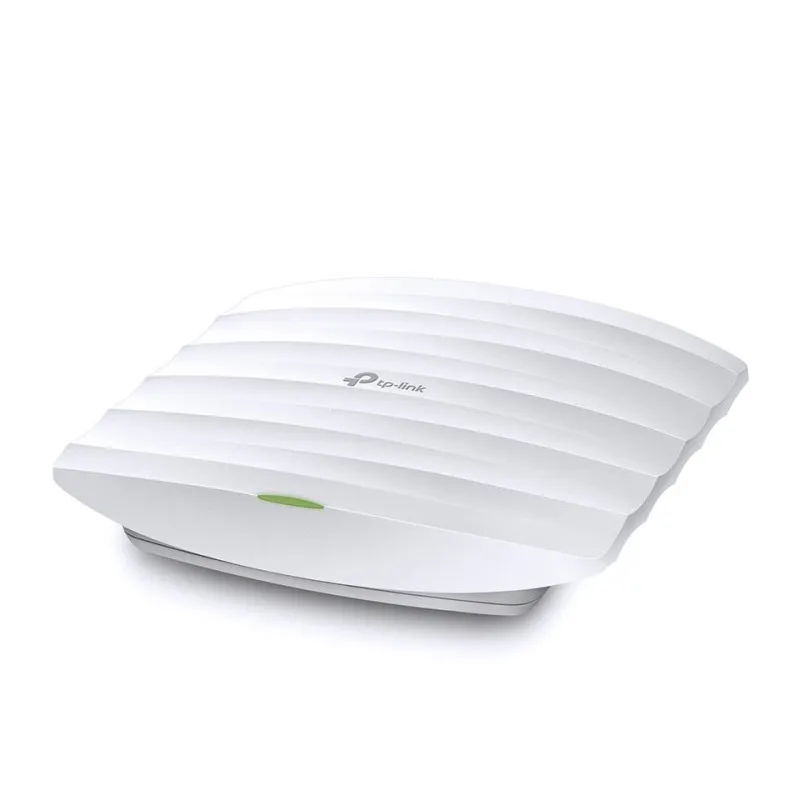

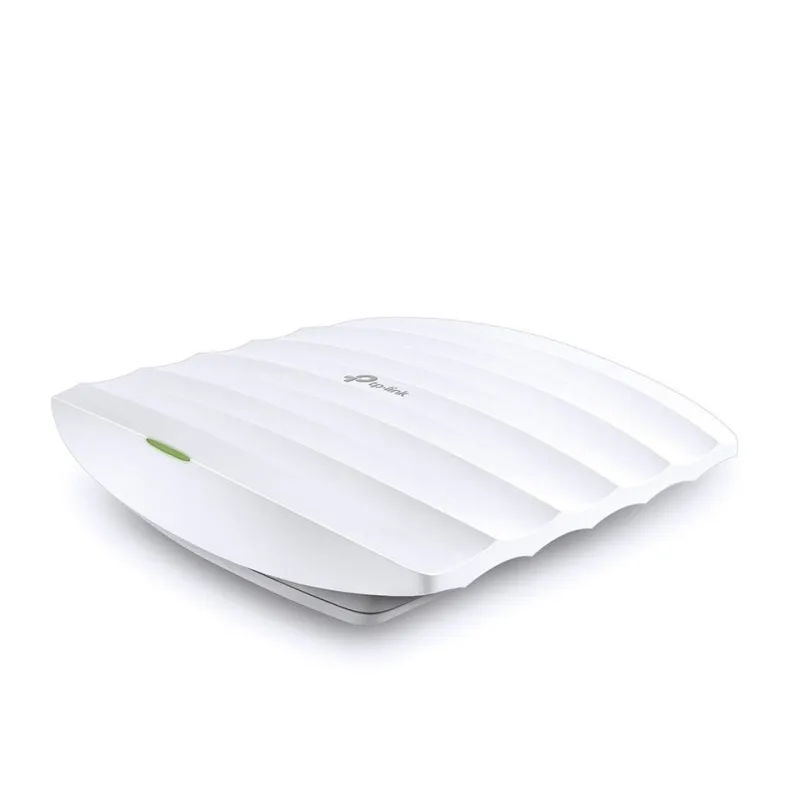

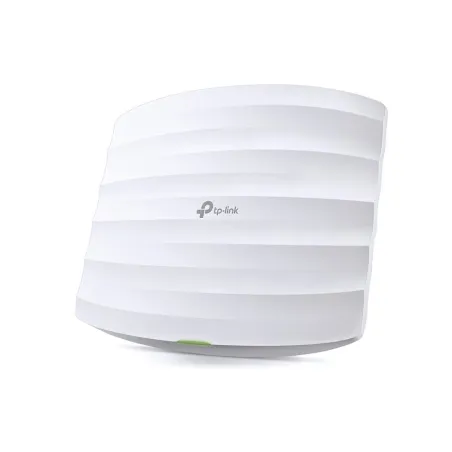

    TP-LINK EAP330 AC1900 Wireless Access Point Dual-Band Gigabit Ceiling Mount, OMADA Controller
    • TP-LINK EAP330 AC1900 Wireless Access Point Dual-Band Gigabit Ceiling Mount, OMADA Controller
    • TP-LINK EAP330 AC1900 Wireless Access Point Dual-Band Gigabit Ceiling Mount, OMADA Controller
    • TP-LINK EAP330 AC1900 Wireless Access Point Dual-Band Gigabit Ceiling Mount, OMADA Controller
    • TP-LINK EAP330 AC1900 Wireless Access Point Dual-Band Gigabit Ceiling Mount, OMADA Controller

    TP-LINK EAP330 AC1900 Wireless Access Point Dual-Band Gigabit Ceiling Mount, OMADA Controller

    TP-Link
    TP-LINK EAP330 Wireless Access Point Dual-Radio มาตรฐาน AC 1900Mbps เสาภายใน 7dBi กระจายรอบทิศทาง รองรับ Omada Controller
    ฿6,990.00
    ยังไม่ได้รวมภาษี
    จำนวน
    Out-of-Stock


    Support / ติดตั้งด้วยทีมงาน
    Certificate


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

    TP-Link Omada EAP Datasheet
    TP-Link EAP Controller 2.5_User Guide

    TP-Link EAP Controller_V2.4.8_User Guide

    TP-Link EAP330(US)_V2_Installation Guide

    TP-Link EAP330(UN)_V2_User Guide

    คู่มือการ Config TP-Link Omada Series

    คู่มือการ Config TP-Link Access Point

    TP-Link EAP330

    AC1900 Wireless Dual Band Gigabit Ceiling Mount Access Point

    •  Speeds of up to 1.9Gbps over concurrent dual band 802.11ac Wi-Fi with MIMO and TurboQAM technologies
    •  Airtime Fairness, Beamforming, and Band Steering Technologies guarantee optimal RF performance for business-level applications
    •  Link aggregation joins two gigabit Ethernet ports to break the bottleneck in network backhaul capacity
    •  Free EAP Controller Software lets administrators easily manage hundreds of EAPs
    •  Captive portal provides a convenient method for guest authentication
    •  Power over Ethernet (802.3at) support and simple mounting design allow for flexible deployment and convenient installation

    Product Specification

    Overview

    TP-LINK EAP330 Wireless Access Point Dual-Radio กระจายสัญญาณ 2 ย่านความถี่ 2.4/5GHz มาตรฐาน AC ความเร็วสูงสุดรวม 1900Mbps เสาภายใน 6dBi/ 7dBi กระจายสัญญาณรอบทิศทาง รองรับ Omada Controller, Captive portal รองรับ POE มาตรฐาน 802.3af

    Interface

    Gigabit Ethernet (RJ-45) Port *2
    (ETH1 Support IEEE802.3at PoE)

    Button

    Reset

    Power Supply

    PoE or External 12VDC / 2.5A Power Supply

    Power Consumption

    14 W

    Dimensions ( W x D x H )

    8.7 x 7.6 x 1.4 in. (220.5*193.5*36.5mm)

    Antenna Type

    Internal Omni
    2.4GHz: 3* 6dBi
    5GHz: 3*7dBi

    Mounting

    Ceiling /Wall Mounting (Kits included)

    Physical Security Lock

    Kensington Lock Slot

    Watch Dog

    Yes

    Hardware Watch Dog

    Yes

    Wireless Standards

    IEEE 802.11ac/n/g/b/a

    Frequency

    2.4GHz and 5GHz

    Signal Rate

    5GHz:Up to 1300Mbps
    2.4GHz:Up to 600Mbps

    Transmit Power

    CE:
    <20dBm(2.4GHz)
    <23dBm(5GHz)
    FCC:
    <27dBm

    Wireless Functions

    Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust Transmit Power on dBm)
    QoS(WMM)
    Airtime Fairness
    Beamforming
    Band Steering
    Load Balance
    Rate Limit
    Link Aggregation
    Reboot Schedule
    Wireless Schedule
    Wireless Statistics based on SSID/AP/Client

    Wireless Security

    Captive Portal Authentication
    Access Control
    Wireless Mac Address Filtering
    Wireless Isolation Between Clients
    SSID to VLAN Mapping
    Rogue AP Detection
    802.1X Support
    64/128/152-bit WEP / WPA / WPA2-Enterprise,
    WPA-PSK / WPA2-PSK

    EAP Controller Software

    Yes

    Email Alerts

    Yes

    LED ON/OFF Control

    Yes

    Management MAC Access Control

    Yes

    SNMP

    v1,v2c

    System Logging Local/Remote Syslog

    Local/Remote Syslog

    Telnet

    Yes

    Web-based Management

    HTTP/HTTPS

    L3 Management

    Yes

    Multi-site Management

    Yes

    Management VLAN

    Yes

    Certification

    CE, FCC, RoHS

    Package Contents

    AC1900 Wireless Dual Band Gigabit Access Point EAP330
    Power Adapter
    Mounting Kits
    Installation Guide

    System Requirements

    Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

    Environment

    Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing

    รับประกัน

    Limited lifetime



    รายละเอียดสินค้า

    ข้อมูลสินค้า

    ลักษณะงาน Wireless
    กระจายสัญญาณ WIFI
    ความเร็ว มาตรฐาน WIFI
    WIFI-5 (ac) 1.2Gbps+
    ย่านความถี่
    Dual-Band 2.4/5GHz
    รองรับ Controller
    Hardware Controller
    รองรับ POE
    Yes
    High-Power
    กำลังส่งสูง
