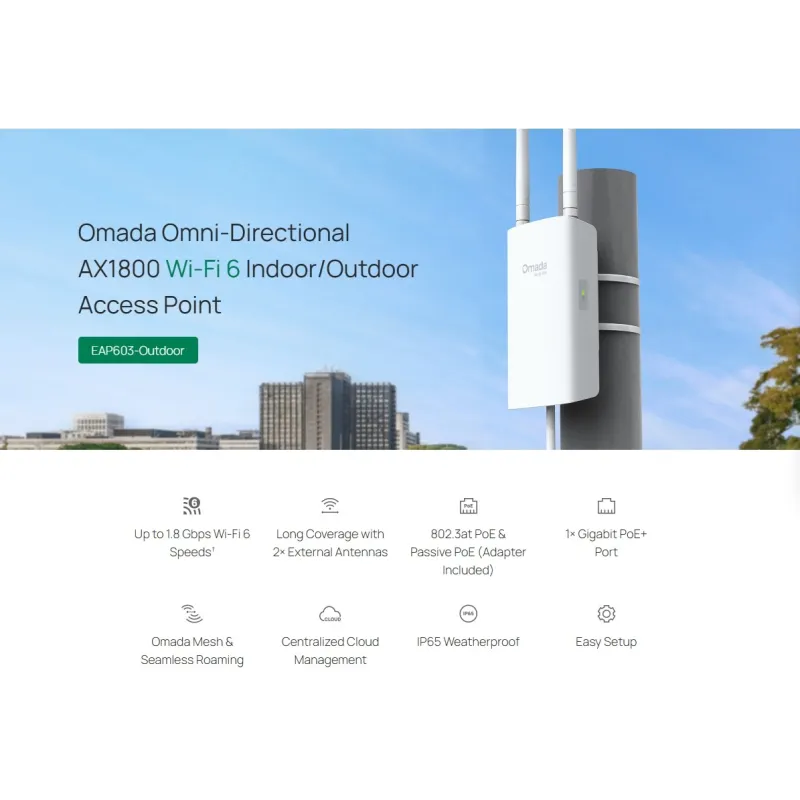

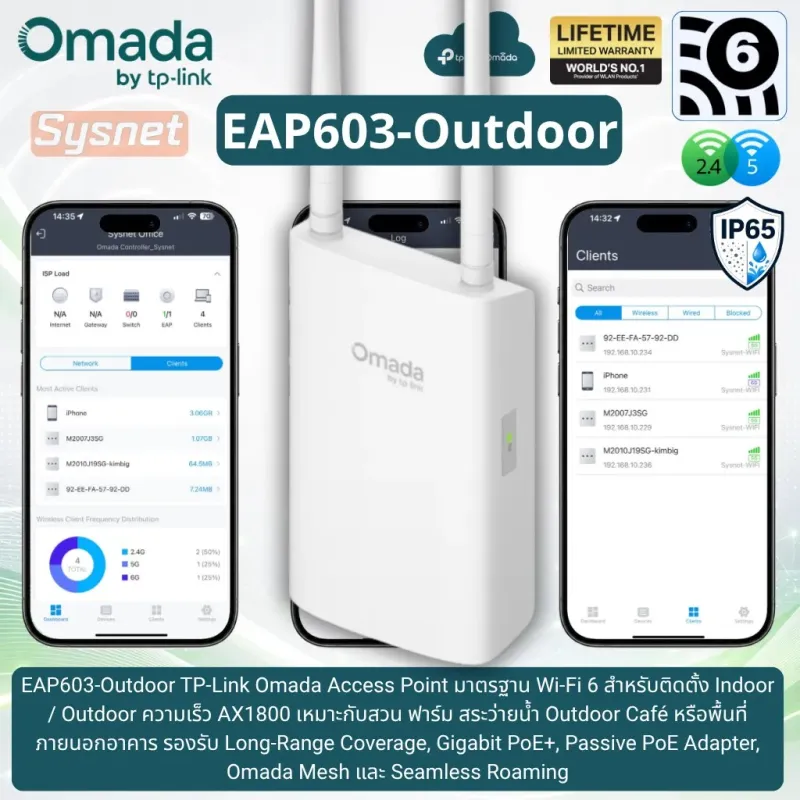

EAP603-Outdoor OMADA by TP-LINK AX1800 Indoor/Outdoor WiFi 6 Access Point

Product Specification

Overview

TP-LINK EAP603-Outdoor AX1800 Indoor/Outdoor WiFi 6 Access Point,  เสาภายใน 2.4 GHz: 2x4 dBi ,5 GHz: 2x5 dBi กระจายรอบทิศทาง
Port Lan Gigabit
กันน้ำกันฝุ่น IP65
รองรับ Omada SDN Controller Software และ Omada Cloud App

1× Gigabit Ethernet (RJ-45) Port Supports both 802.3at PoE and Passive PoE

• 1× Grounding Termina

Reset

• 802.3at PoE
• Passive PoE ( มีแถมให้ในกล่อง )

• 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up
to 1 Gbps, etc.
• Idle mode: 4.8W(PoE)

• Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.)
• Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.)

Wi-Fi
• 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas
• 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas
*Note: The gains above are the single-antenna peak gains.

IoT
• Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional
antennas

• Pole Mount (Kits included)
• Wall Mount (Kits included)

5 GHz: IEEE 802.11a/n/ac/ax
2.4 GHz: IEEE 802.11b/g/n/ax

2.4 GHz and 5 GHz

• 2.4 GHz: up to 573 Mbps
• 5 GHz: up to 1201 Mbps
*Note: Country-Specific Restriction Apply

• Maximum number of BSSIDs: 16 (8 on each band)
• Maximum number of associated STAs: 250+
• Guest Network
• ACS (Automatic Channel Selection)
• Airtime Fairness
• Band Steering
• 802.11 Rate Control
• Rogue AP Detection
• URL Filtering
• WLAN Optimization
• Lock to AP
• SSID/Client Rate Limit
• Load Balance
• Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming)^§
• Multicast/Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversation, Multicast Filtering, Multicast/Broadcast Rate Limit)
• QoS (Quality of Service)

• ACL
• MAC Filter
• 802.1X Authentication
• MAC-Based Authentication
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None
• Radius Accounting
• PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC)
• Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client
• EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1

Maximum transmit power:
CE (ERIP)
• 2.4 GHz: 20 dBm
• 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C,
FCC (Conducted Power)
• 2.4 GHz: 25 dBm
• 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3

Minimum transmit power
CE (ERIP)
• 2.4 GHz: 7 dBm
• 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6
dBm in U-NII-3
FCC (Conducted Power)
• 2.4 GHz: 4 dBm
• 5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C,
4dBm in U-NII-3

Adjustable power increment: 1 dBm

*Note: MIMO combined power, excluding antenna gains. The actual
transmit power depends on local laws and regulations

Yes

• Omada Hardware Controller
• Omada Software Controller
• Omada Central (Cloud-Based)
• Omada App

Yes. Require the use of an Omada controller.

Yes

Yes

Yes

v1, v2c, v3

Local/Remote Syslog

Yes

HTTP/HTTPS

Yes

CE, FCC, RoHS

• EAP603-Outdoor
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit
• Waterproof Kit

• Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing

รับประกัน

Limited lifetime
