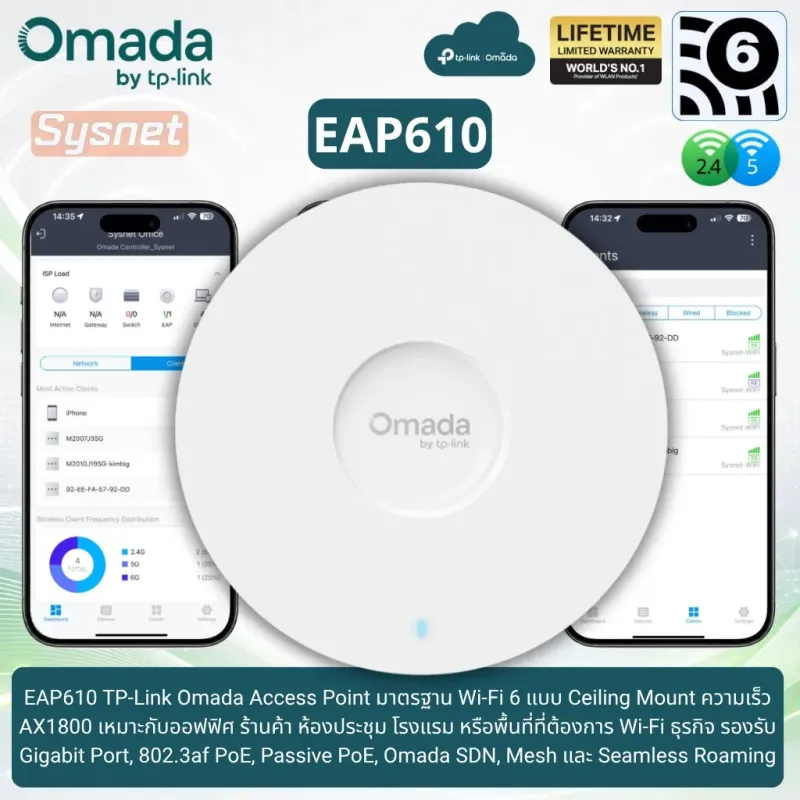

    TP-LINK EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point

    TP-Link
    TP-LINK EAP610 AX1800 WIFI6 AX Access Point, Port Lan Gigabit เสาภายใน 2x5dBi 5GHz, 2x4dBi 2.4GHz กระจายรอบทิศทาง รองรับ Omada SDN Controller Software
    ฿4,250.00
    ยังไม่ได้รวมภาษี
    จำนวน

    รายละเอียด

    TP-Link EAP610

    AX1800 Wireless Dual Band Ceiling Mount Access Point

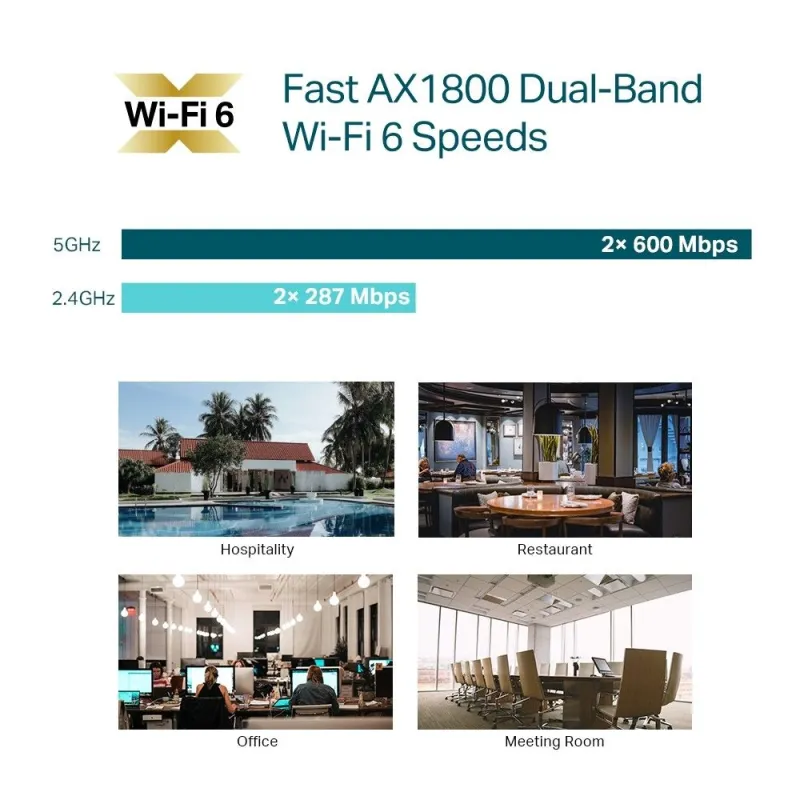

    • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
    • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

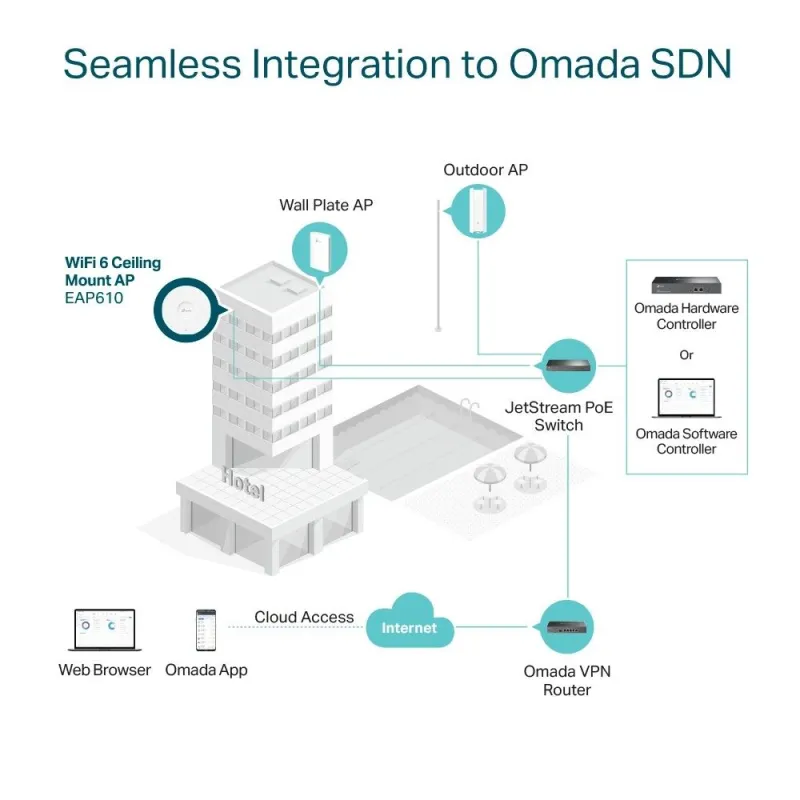

    • Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.

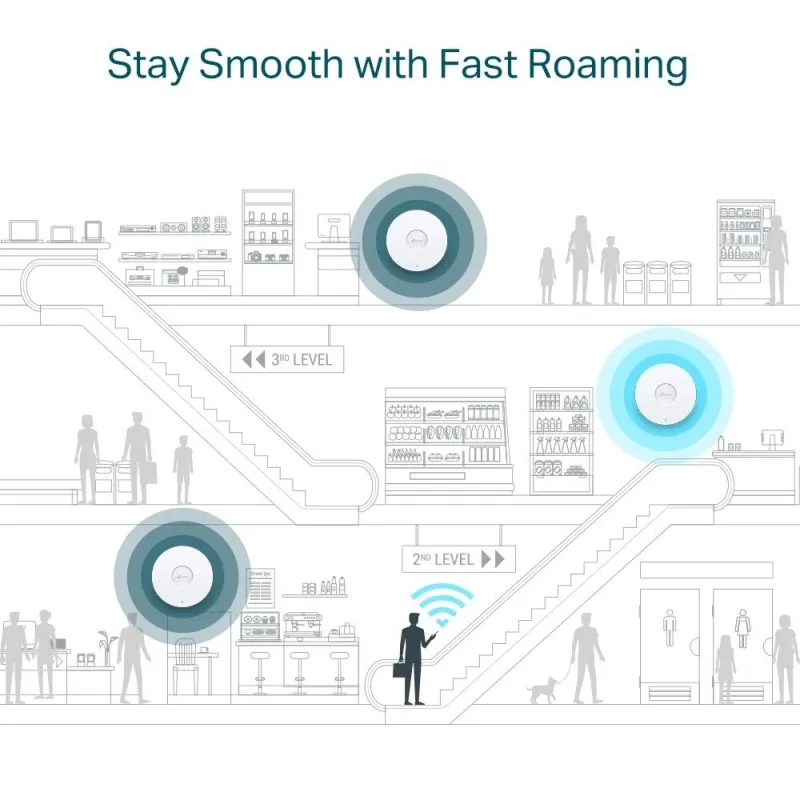

    • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
    • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
    • PoE+ Powered: Supports both Power over Ethernet (802.3at) and DC power supply for flexible installations.
    • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

    What is Omada Cloud SDN?



    How to Set up a TP-Link EAP via Web browser



    TP-LINK EAP610(US) Datasheet
    TP-LINK EAP610(US) Installation Guide

    Omada SDN Controller Software 4.1.5Windows/Linux_User Guide

    Omada Access Points_User Guide



    Product Specification

    Overview

    TP-LINK EAP610 AX1800 WIFI6 AX Access Point, Port Lan Gigabit เสาภายใน 2x5dBi 5GHz, 2x4dBi 2.4GHz กระจายรอบทิศทาง รองรับ Omada SDN Controller Software

    HARDWARE FEATURES

    Interface

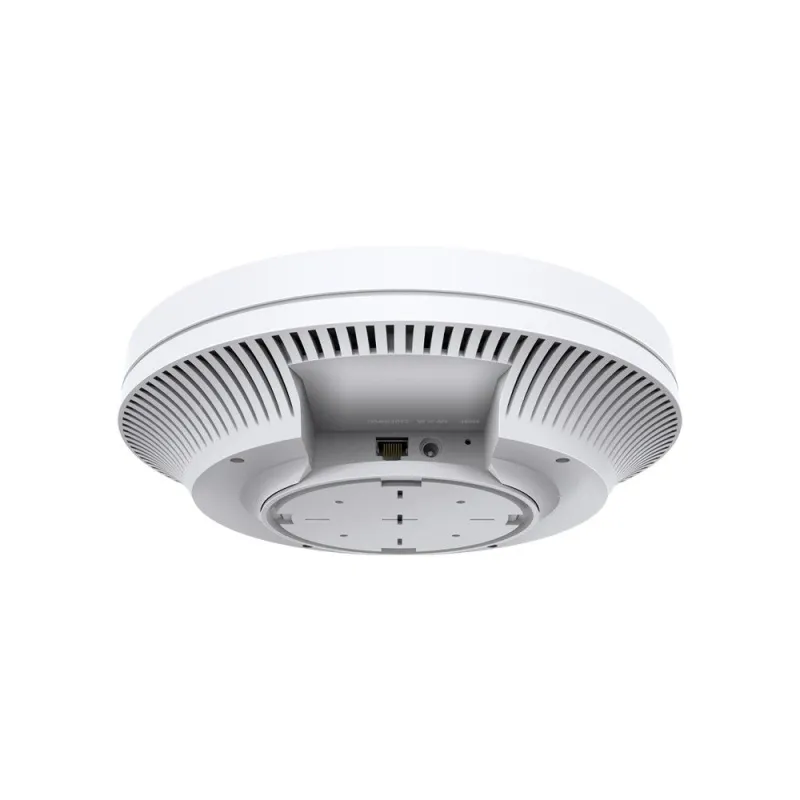

    1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

    Button

    Reset

    Power Supply

    • 802.3at PoE
    • 12 V / 1 A DC

    Power Consumption

    • EU: 12.8 W (For PoE); 10.8 W (for DC)
    • US: 13.9W (For PoE); 11.8 W (for DC)

    Dimensions ( W x D x H )

    9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)

    Antenna Type

    Internal Omni
    • 2.4 GHz: 2× 4 dBi
    • 5 GHz: 2× 5 dBi

    Mounting

    Ceiling /Wall Mounting (Kits included)

    WIRELESS FEATURES

    Wireless Standards

    IEEE 802.11ax/ac/n/g/b/a

    Frequency

    2.4 GHz and 5 GHz

    Signal Rate

    5 GHz: Up to 1201 Mbps
    2.4 GHz: Up to 574 Mbps

    Wireless Functions

    • 1024-QAM
    • 4× Longer OFDM Symbol
    • OFDMA
    • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    • Enable/Disable Wireless Radio
    • Automatic Channel Assignment
    • Transmit Power Control (Adjust Transmit Power on dBm)
    • QoS(WMM)
    • MU-MIMO
    • Seamless Roaming §
    • Omada Mesh§
    • Band Steering
    • Load Balance
    • Airtime Fairness
    • Beamforming
    • Rate Limit
    • Reboot Schedule
    • Wireless Schedule
    • Wireless Statistics based on SSID/AP/Client

    Wireless Security

    • Captive Portal Authentication§
    • Access Control
    • Wireless Mac Address Filtering
    • Wireless Isolation Between Clients
    • SSID to VLAN Mapping
    • Rogue AP Detection
    • 802.1X Support
    • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

    Transmission Power

    • CE:
    <20 dBm(2.4 GHz, EIRP)
    <23 dBm(5 GHz, EIRP)

    • FCC:
    <25 dBm (2.4 GHz)
    <25 dBm (5 GHz)

    MANAGEMENT

    Omada App

    Yes

    Centralized Management

    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller

    Cloud Access

    Yes (Through OC300, OC200, or Omada Software Controller)

    Email Alerts

    Yes

    LED ON/OFF Control

    Yes

    Management MAC Access Control

    Yes

    SNMP

    v1, v2c, v3

    System Logging Local/Remote Syslog

    Local/Remote Syslog

    SSH

    Yes

    Web-based Management

    HTTP/HTTPS

    L3 Management

    Yes

    Multi-site Management

    Yes

    Management VLAN

    Yes

    OTHERS

    Certification

    CE, FCC, RoHS

    Package Contents

    • EAP610
    • Power Adapter
    • Ceiling/Wall Mounting Kits
    • Installation Guide

    System Requirements

    Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

    Environment

    • Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing

    รับประกัน

    Limited lifetime



    รายละเอียดสินค้า
    10 รายการ

    Data sheet

    ลักษณะงาน Wireless
    กระจายสัญญาณ WIFI
    ความเร็ว Wireless
    WIFI-6 (802.11ax: 1.2Gbps+)
    ย่านความถี่
    Dual-Band 2.4/5GHz
    รองรับ Controller
    Hardware Controller
    รองรับ POE
    Yes
