EAP613 TP-LINK AX1800 Ceiling Mount WiFi 6 Access Point

EAP613

TP-LINK Wireless Access Point AX Dual-Radio WIFI-6 1800Mbps เสาภายใน 5dBi กระจายรอบทิศทาง รองรับ Omada Controller

฿3,790.00
ยังไม่ได้รวมภาษี
จำนวน


ต้องการรายละเอียดสินค้าเพิ่มเติม LINE:
@sysnet

รายละเอียด

Review TP-Link OC200 Cloud Controller

คู่มือการ Config TP-Link Omada Series

คู่มือการ Config TP-Link Access Point

Omada EAP Datasheet
Omada Access Points_User Guide(EU&US)
EAP613(US)_V1_Installation Guide

TP-Link EAP613AX1800 Wireless WIFI 6 (AX)Ceiling Mount Access Point

  • Ultra-Fast WiFi 6 Speeds:Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
  • Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
  • PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.
  • Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Product Specification

Overview

TP-LINK EAP613 Wireless Access Point Dual-Radio กระจายสัญญาณ 2 ย่านความถี่ Dual-Band 2.4/5GHzมาตรฐาน WIFI 6 (ax) ความเร็วสูงสุดรวม1800Mbps เสาภายใน 4dBi/ 5dBi กระจายสัญญาณรอบทิศทาง รองรับ Omada Controller, ทำ Captive portal, รองรับ POE มาตรฐาน802.3af/at

HARDWARE FEATURES

Interface

1 Port Gigabit Ethernet (RJ-45)

Button

Reset

Power Supply

802.3at PoE
48 V Passive PoE
12 V / 1 A DC (Power Adapter IS NOT included)

Power Consumption

11.0W (For PoE);
9.9W (For DC)

Dimensions ( W x D x H )

V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)

Antenna Type

เสาอากาศภายในกระจายสัญญาณรอบทิศทาง Internal Omni Antenna
2.4 GHz: 2× 4 dBi
5 GHz: 2× 5 dBi

Mounting

Ceiling /Wall Mounting (Kits included)
Junction Box Mounting

WIRELESS FEATURES

Wireless Client Capacity

250+**

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps

Wireless Functions

1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming §
Omada Mesh§
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security

Captive Portal Authentication§
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)

FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)

MANAGEMENT

Omada App

Yes

Centralized Management

Omada Cloud-Based Controller
Omada Hardware Controller OC300
Omada Hardware Controller OC200
Omada Software Controller

Cloud Access

Yes, through
OC300
OC200
Omada Software Controller
Omada Cloud-Based Controller

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

Certification

CE, FCC, RoHS

Package Contents

EAP613
Ceiling/ Wall Mounting Kits
Installation Guide

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

รับประกัน

Limited lifetime







Easily Upgrade to Business WiFi 6 Network

AX1800 Ceiling Mount WiFi 6 Access Point

Easily Upgrade to Business WiFi 6 Network



Superior WiFi 6 Speeds

Upgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5. Every application feels more fluid with drastically improved Wi-Fi speeds.

Upgrade to WiFi 6, Power up Your Business



Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Seamless Integration into Omada SDN



Auto Channel Selection and Power Adjustment to Optimize Overall Performance*

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Auto Channel Selection and Power Adjustment to Optimize



Easy Deployment & Higher Performance by Omada Mesh §

Easy Pairing, Less Wiring

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Easy Deployment & Higher Performance by Omada Mesh



Optimized Network Performance

Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Optimized Network Performance



Always Stay Smooth with Fast Roaming§

Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Always Stay Smooth with Fast Roaming

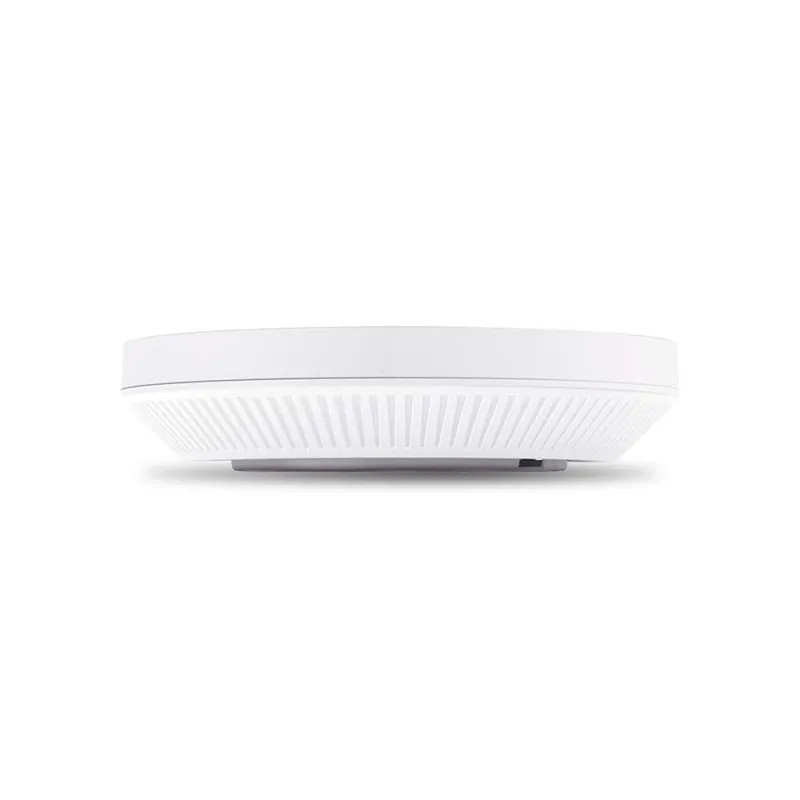

Ultra-Slim Design Brings More Agility

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP613 perfectly blend into any modern office, hotel, classroom, or café.

Ultra-Slim Design Brings More Agility

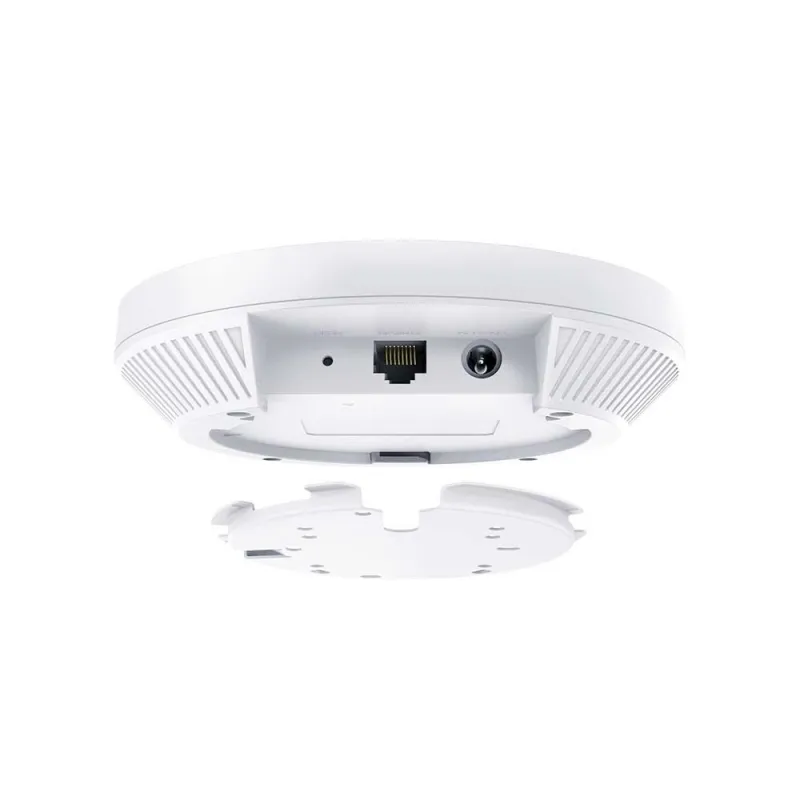

Easy to Mount with Refined Industrial Design

Easy to Mount with Refined Industrial Design

รายละเอียดสินค้า
50 รายการ

ข้อมูลสินค้า

ลักษณะงาน Wireless
กระจายสัญญาณ WIFI
ความเร็ว มาตรฐาน WIFI
WIFI-6 (ax) 1.7Gbps+
ย่านความถี่
Dual-Band 2.4/5GHz
รองรับ Controller
Hardware Controller
Mode Repeate/WDS/MESH
MESH
รองรับ POE
Yes
