EAP615-Wall TP-LINK AX1800 Wall Plate WiFi-6 Access Point

Product Specification

Overview

TP-LINK EAP615-Wall Wireless Access Point WIFI-6 Dual-Radio มาตรฐาน AX 1775Mbps แบบ Wall Plate, เสาภายใน 4dBi กระจายรอบทิศทาง

4 Port Gigabit รองรับทำ Port VLANรองรับการ Manage ผ่าน Omada SDN Cloud Controller

1 Port POE Pass-Through 13W (เมื่อใช้ร่วมกับ POE มาตรฐาน 802.3at)

HARDWARE FEATURES

Interface

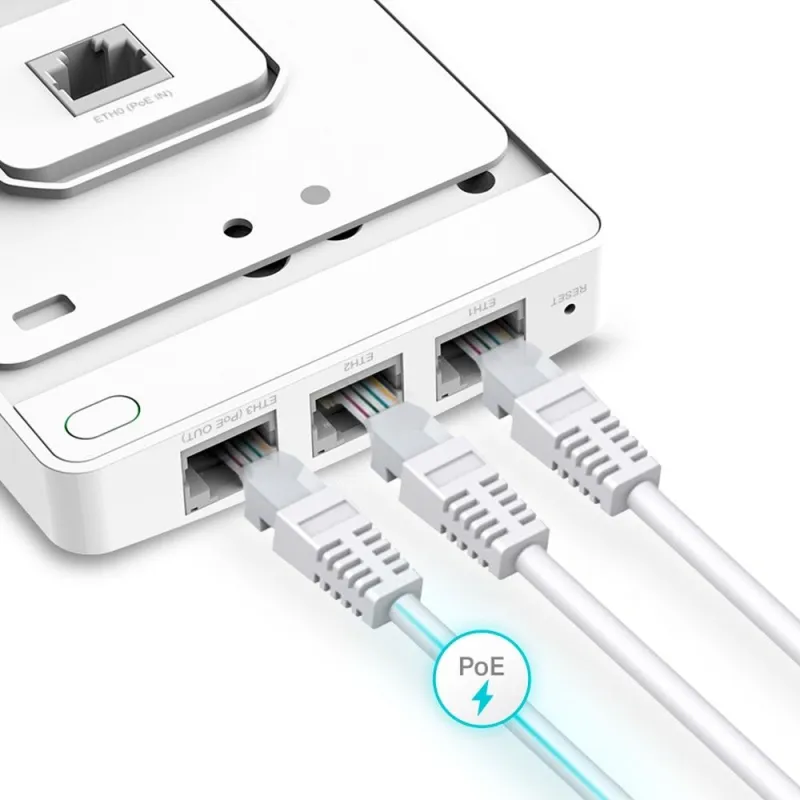

• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)

Physical Security Lock

Yes

Button

Reset

Power Supply

802.3af/at PoE

Power Consumption

EU: 10W (802.3at PoE, PoE Out off)
US: 11.5W (802.3at PoE, PoE Out off)

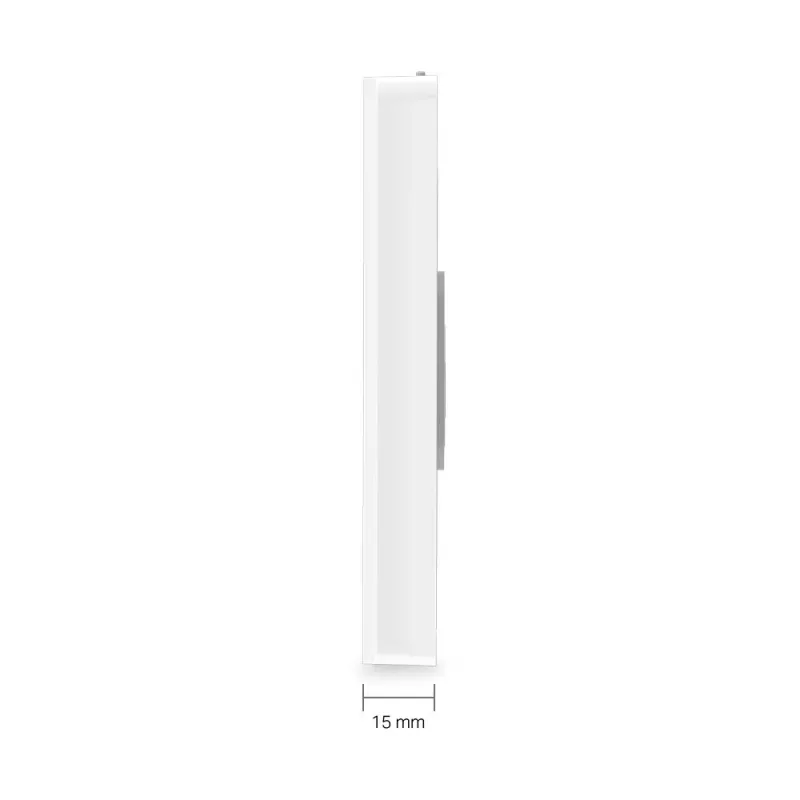

Dimensions ( W x D x H )

143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

Dimensions

143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

Antenna

2 Dual-Band Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi

Mounting

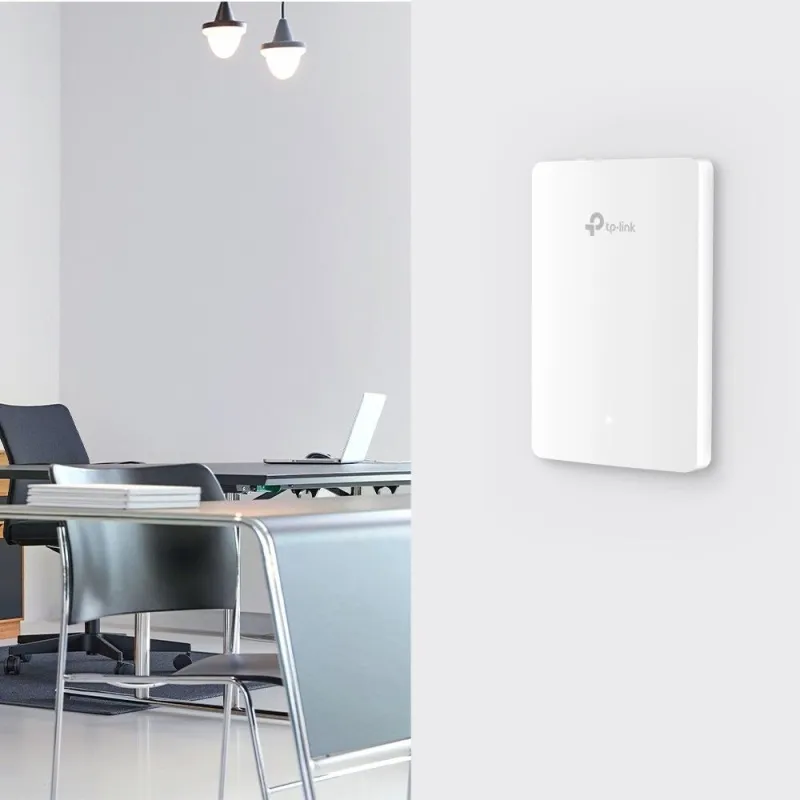

Wall Plate Mounting

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps

Wireless Functions

• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming†
• Beamforming
• MU-MIMO
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP

Wireless Security

• Captive Portal Authentication†
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE:
< 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, EIRP)

• FCC:
< 21 dBm (2.4 GHz)
< 21 dBm (5 GHz)

MANAGEMENT

Omada App

Yes

Centralized Management

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access

Yes (Through OC300, OC200, or Omada Software Controller)

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification

CE, FCC, RoHS

Package Contents

• AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
• Installation Guide
• Mounting Kits

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

รับประกัน

Limited lifetime
