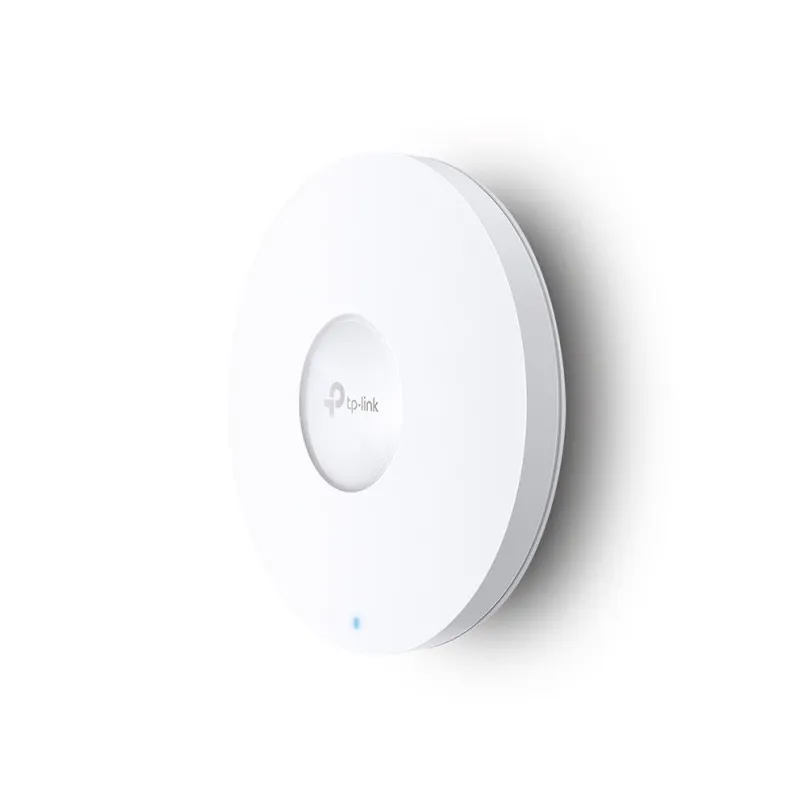

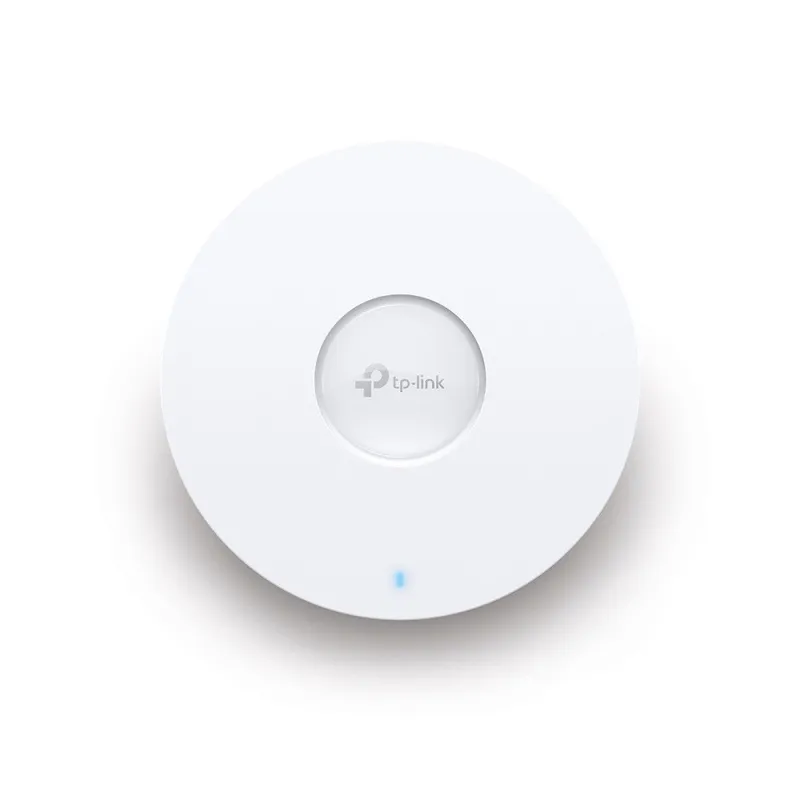

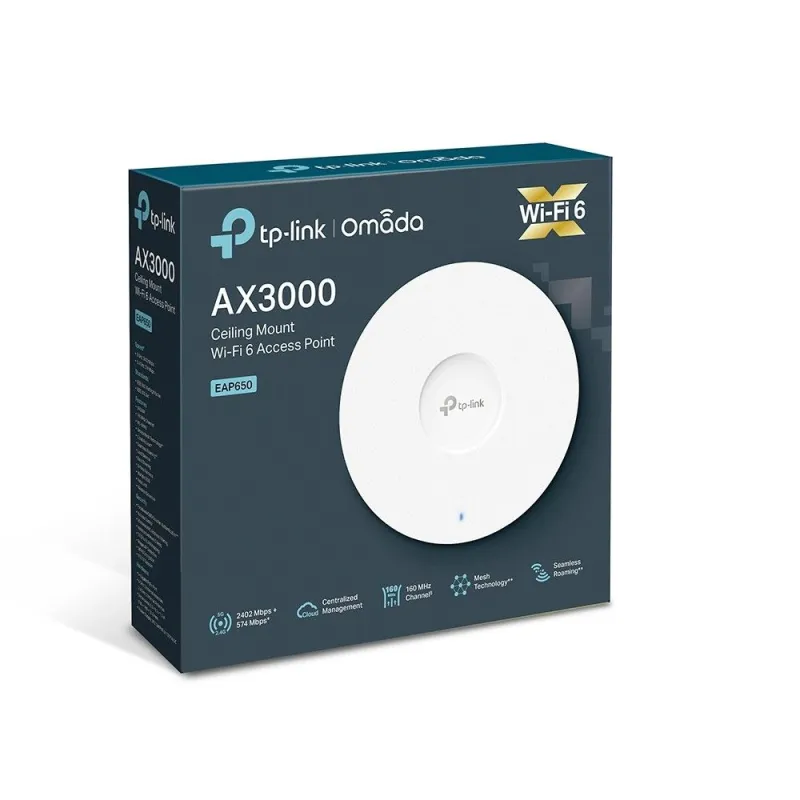

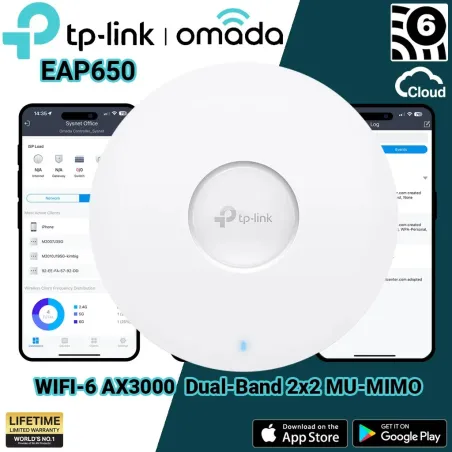

TP-Link EAP650
AX3000 Ceiling Mount WiFi 6 Access Point
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡

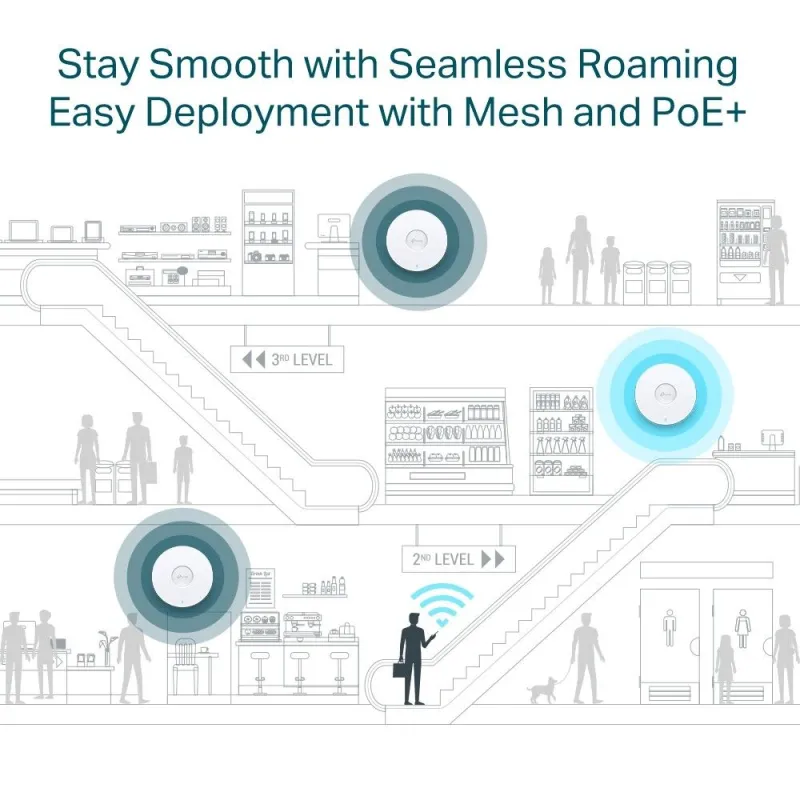

- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.

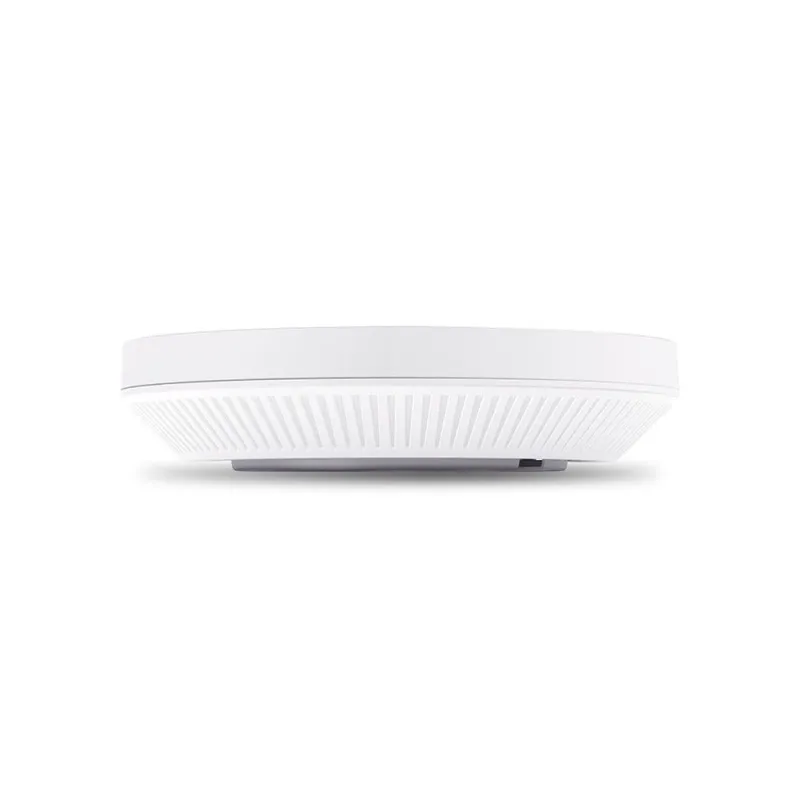

- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Product Specification
|
|
Overview
|

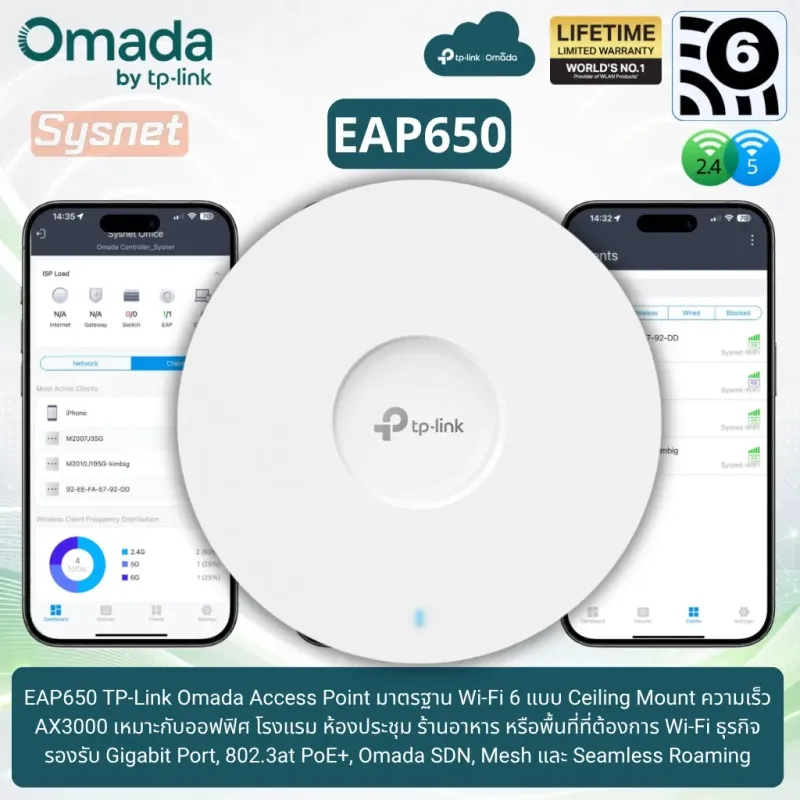

TP-LINK EAP650 Wireless Access Point มาตรฐาน WIFI6 AX3000 Channel Width 160MHz, เสาภายใน 4x5dBi 5GHz, 2x4dBi 2.4GHz กระจายรอบทิศทาง
รองรับ Omada SDN Controller Software, รองรับ POE 802.3at
|
|
|
|
Interface
|

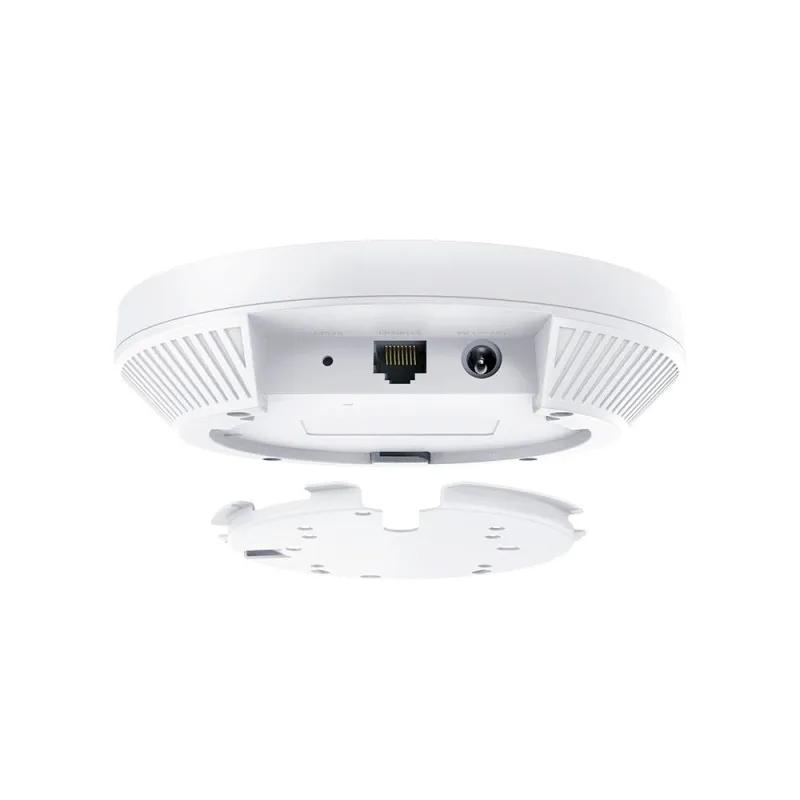

1 Port Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
|
|
Button
|
Reset
|
|
Power Supply
|
• 802.3at PoE
• 12V DC (Power Adapter included)
(EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC).
|
|
Power Consumption
|
• EU: 13.5 W
• US: 14.7 W
|
|
Dimensions ( W x D x H )
|
6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
|
|
Antenna Type
|
Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
|
|
Mounting
|

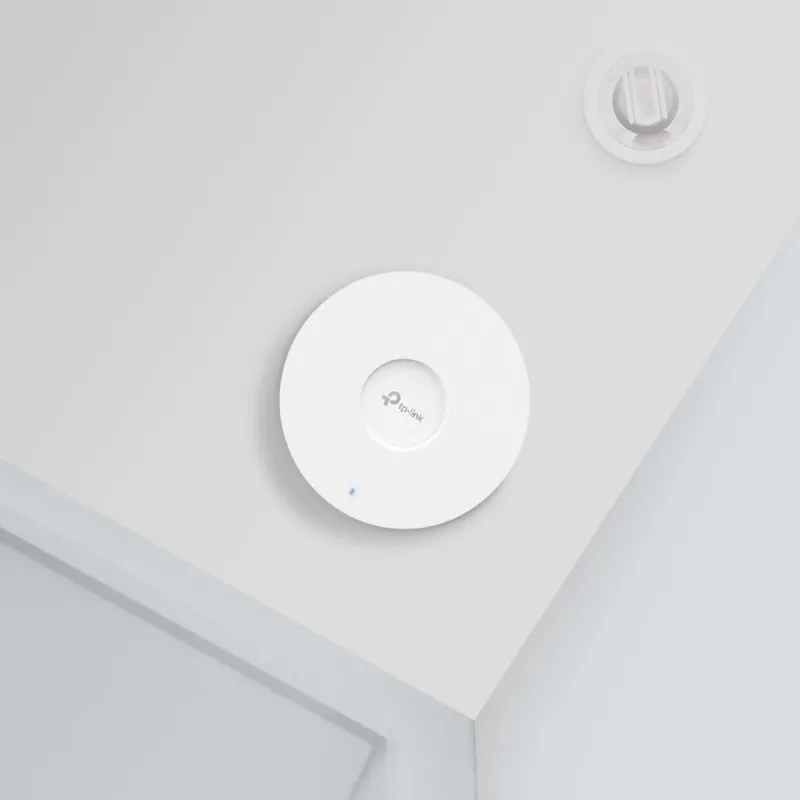

• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting
|
|
|
|
Wireless Standards
|
IEEE 802.11ax/ac/n/g/b/a
|
|
Frequency
|
2.4 GHz and 5 GHz
|
|
Signal Rate
|
• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps
|
|
Wireless Functions
|
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
|
|
Wireless Security
|
• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
|
|
Transmission Power
|
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP)
• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
|
|
|
|
Omada App
|
Yes
|
|
Centralized Management
|
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
|
|
Cloud Access
|
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
|
|
Email Alerts
|
Yes
|
|
LED ON/OFF Control
|
Yes
|
|
Management MAC Access Control
|
Yes
|
|
SNMP
|
v1, v2c, v3
|
|
System Logging Local/Remote Syslog
|
Local/Remote Syslog
|
|
SSH
|
Yes
|
|
Web-based Management
|
HTTP/HTTPS
|
|
L3 Management
|
Yes
|
|
Multi-site Management
|
Yes
|
|
Management VLAN
|
Yes
|
|
Zero-Touch Provisioning
|
Yes. Requiring the use of Omada Cloud-Based Controller.
|
|
|
|
Certification
|
CE, FCC, RoHS
|
|
Package Contents
|
• EAP650
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
|
|
System Requirements
|
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
|
|
Environment
|
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
|
|
รับประกัน
|
Limited lifetime
|
