แบรนด์: TP-Link
TP-Link EAP653Datasheet
Omada SDN Controller Software 4.1.5Windows/Linux_User Guide
Omada Access Points_User Guide
คู่มือการ Config TP-Link Omada Series
คู่มือการ Config TP-Link Access Point
Product Specification |
|
Overview |
TP-LINK EAP653 Wireless Access Pount มาตรฐาน WIFI6 AX3000 รองรับ Channel Width ได้ถึง 160MHz เพื่อได้ความเร็วสูงสุด เสาอากาศภายใน 2x5dBi 5GHz, 2x4dBi 2.4GHz กระจายรอบทิศทาง รองรับ Omada SDN Controller Software |
HARDWARE FEATURES |
|
---|---|
Interface |

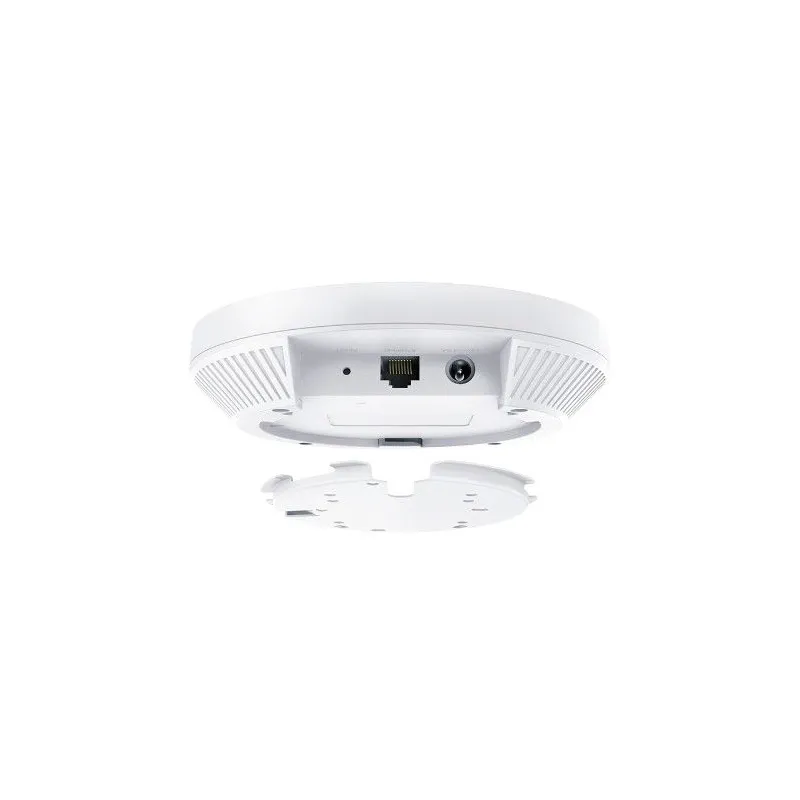

1 Port Gigabit Ethernet (RJ-45) Port (รองรับ POE IEEE802.3at) |
Button |
Reset |
Power Supply |
802.3at PoE |
Power Consumption |
EU: 13.5 W |
Dimensions ( W x D x H ) |
6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
Antenna Type |
เสาอากาศภายในแบบ Omni กระจายสัญญาณรอบทิศทาง |
Mounting |
Ceiling /Wall Mounting (Kits included) |
WIRELESS FEATURES |
|
Wireless Standards |
IEEE 802.11ax/ac/n/g/b/a |
Frequency |
2.4 GHz and 5 GHz |
Signal Rate |
5 GHz: Up to 2402 Mbps |
Wireless Functions |
1024-QAM |
Wireless Security |
Captive Portal Authentication |
Transmission Power |
CE: |
MANAGEMENT |
|
Omada App |
Yes |
Centralized Management |
Omada Hardware Controller (OC300) |
Cloud Access |
Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller) |
Email Alerts |
Yes |
LED ON/OFF Control |
Yes |
Management MAC Access Control |
Yes |
SNMP |
v1, v2c, v3 |
System Logging Local/Remote Syslog |
Local/Remote Syslog |
SSH |
Yes |
Web-based Management |
HTTP/HTTPS |
L3 Management |
Yes |
Multi-site Management |
Yes |
Management VLAN |
Yes |
Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller. |
OTHERS |
|
Certification |
CE, FCC, RoHS |
Package Contents |
TP-Link EAP653 |
System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
Environment |
Operating Temperature: 0–40 ℃ (32–104 ℉) |
รับประกัน |
Limited lifetime |

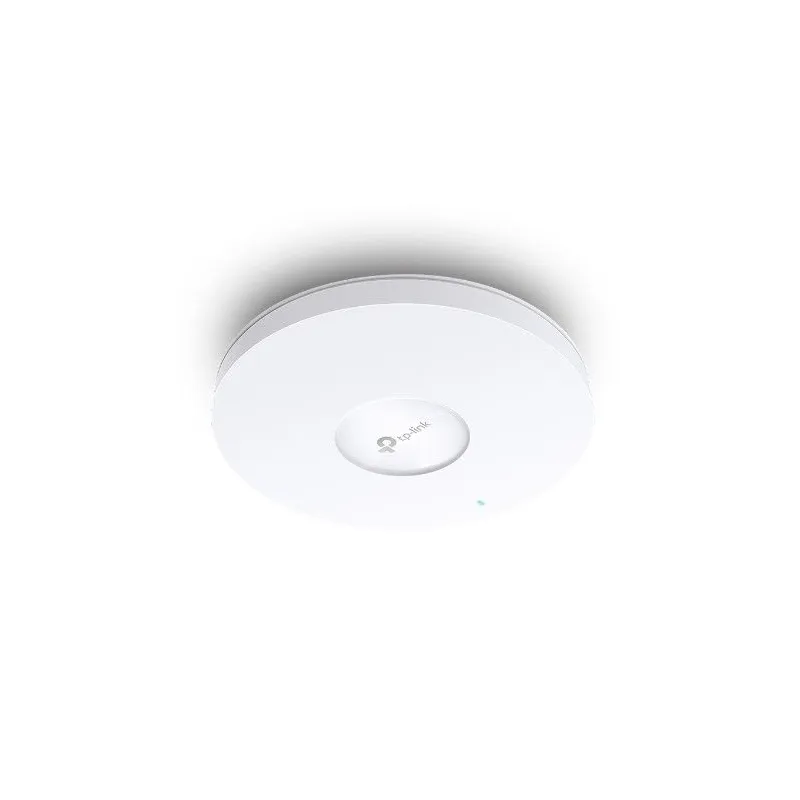

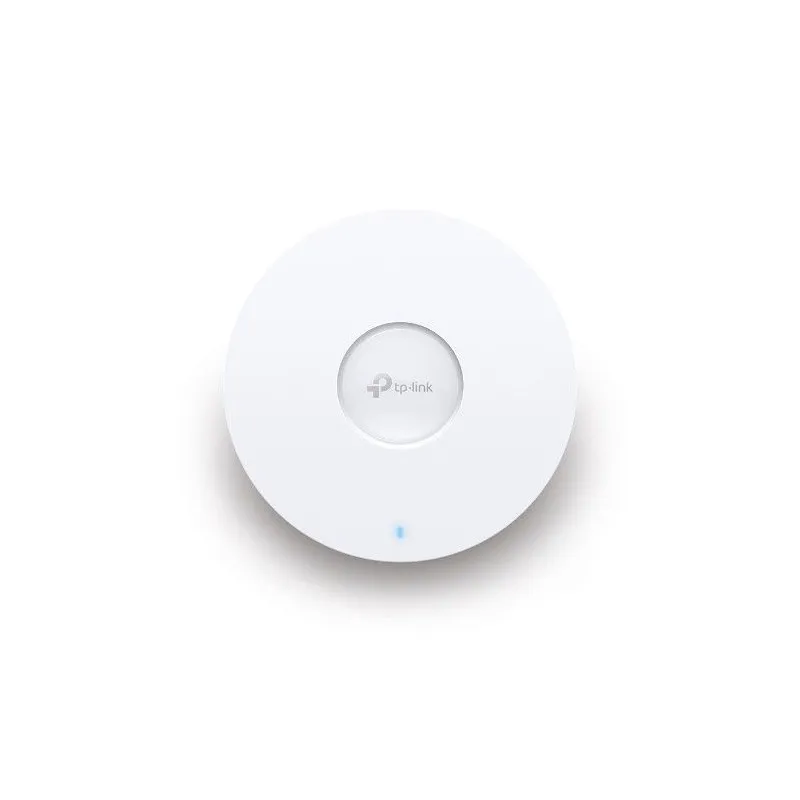

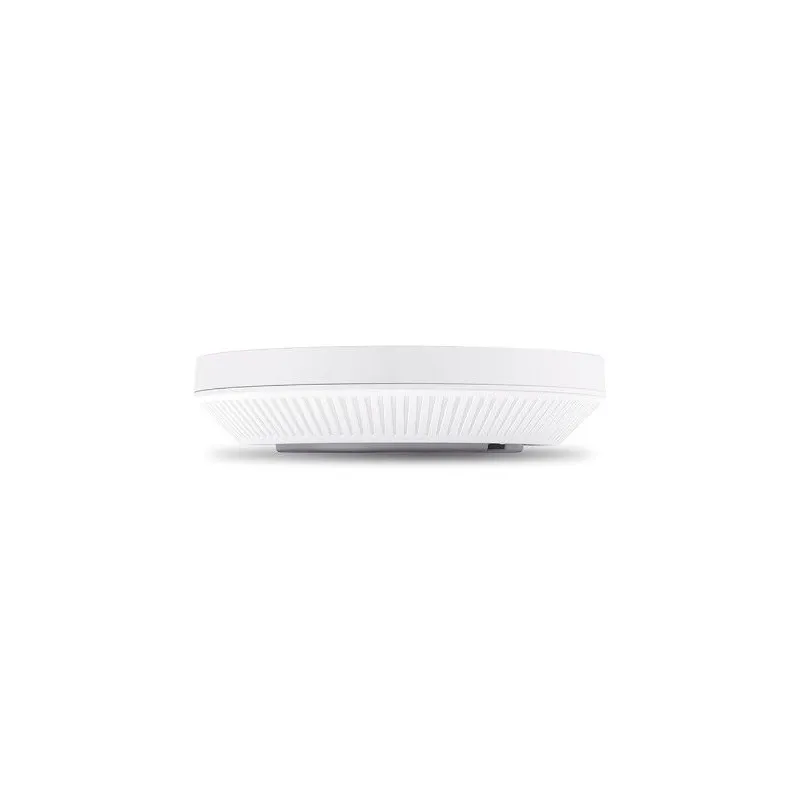

AX3000 Ceiling Mount WiFi 6 Access Point
TP-Link EAP653 WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.
New-era business WiFi 6 with speeds up to 2976 Mbps brings more than twice the speed of WiFi 5.† Every application feels more fluid with drastically improved WiFi speeds.
WiFi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag

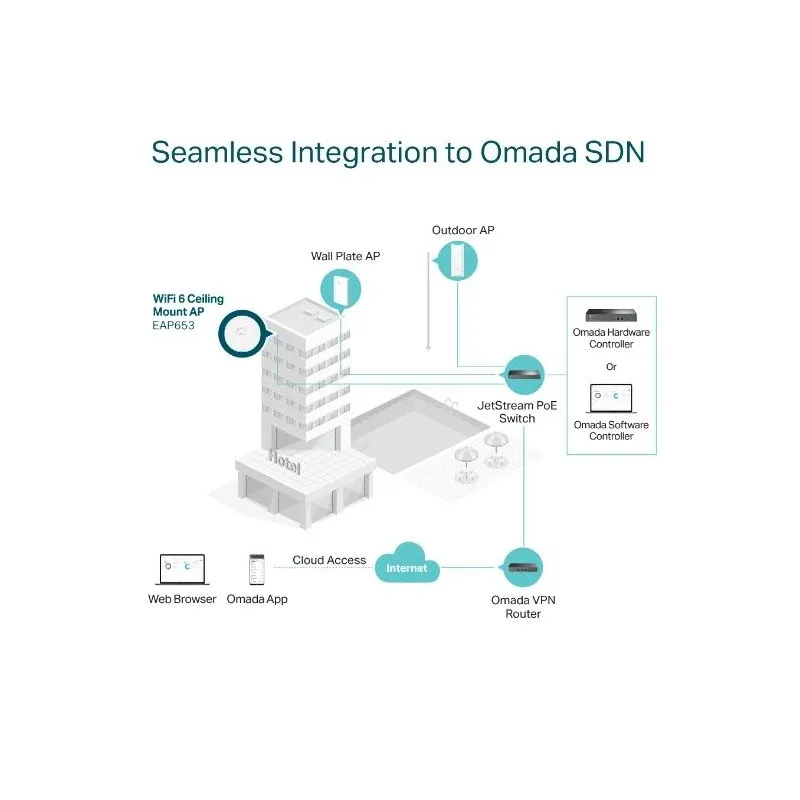

The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

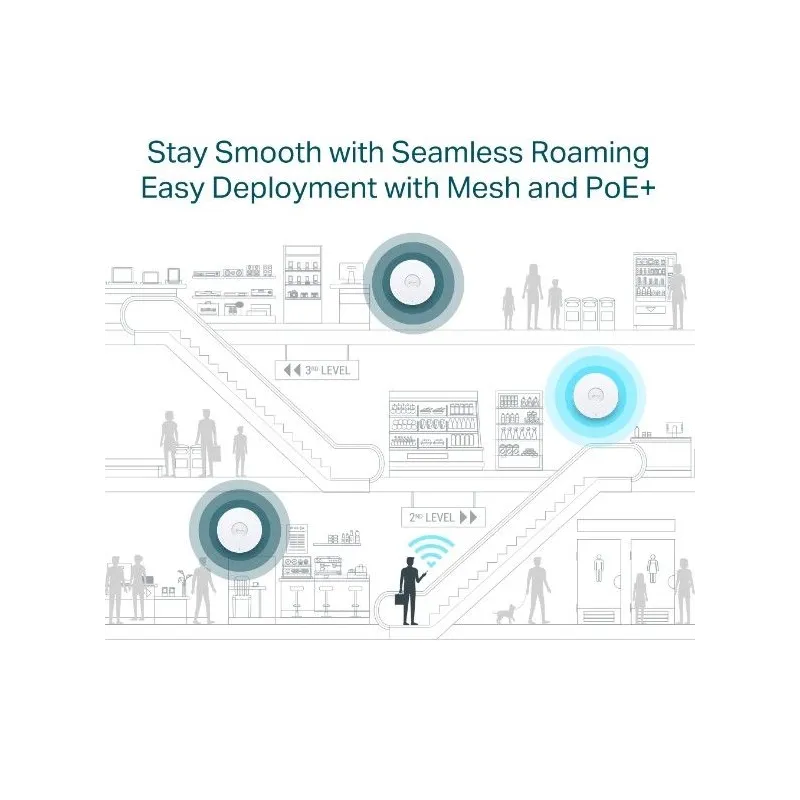

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

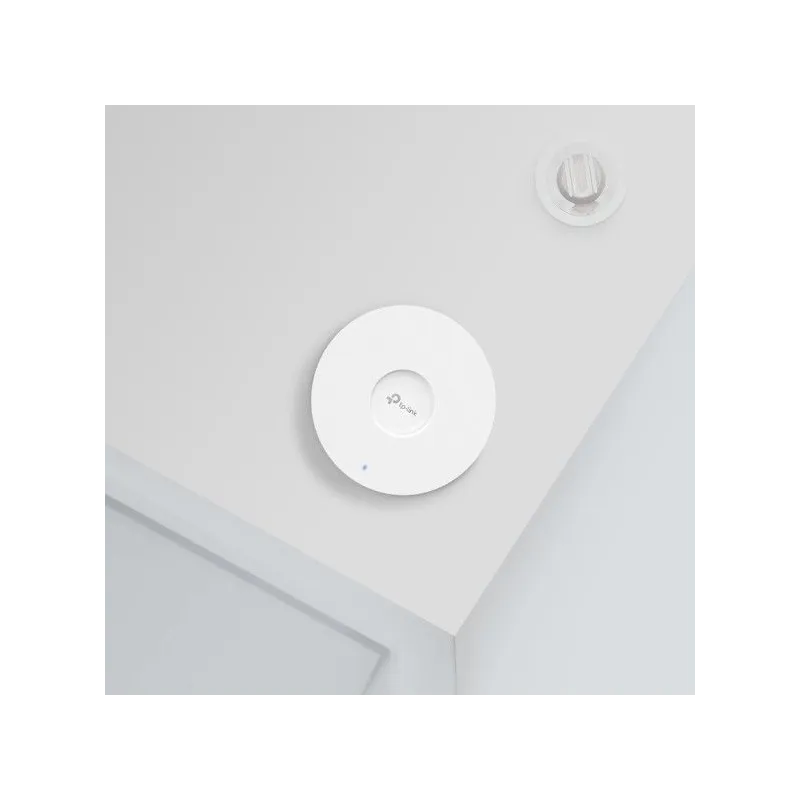

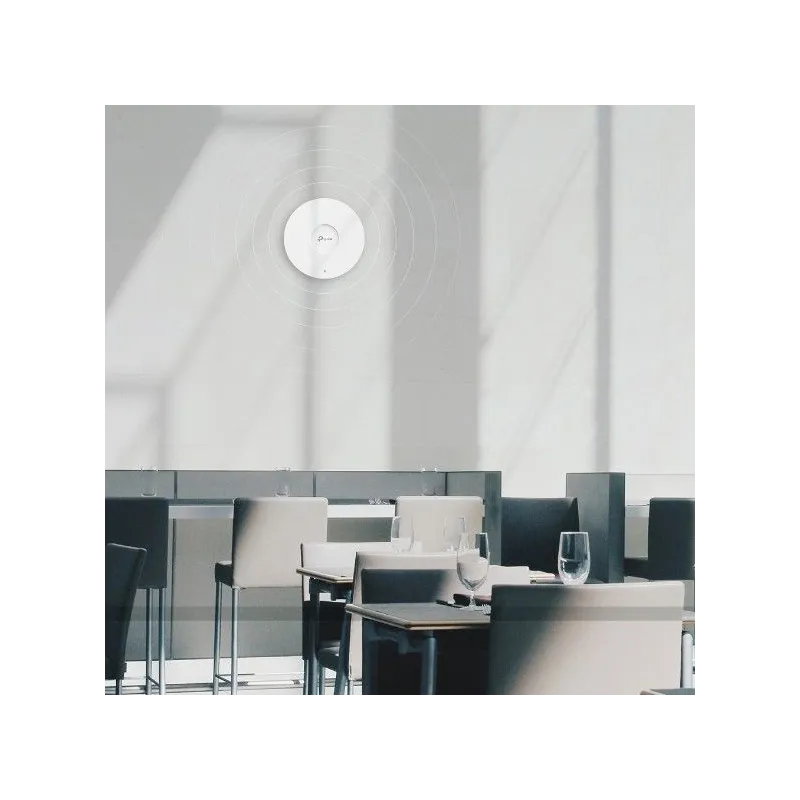

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.
