Product Specification
|
|
Overview
|

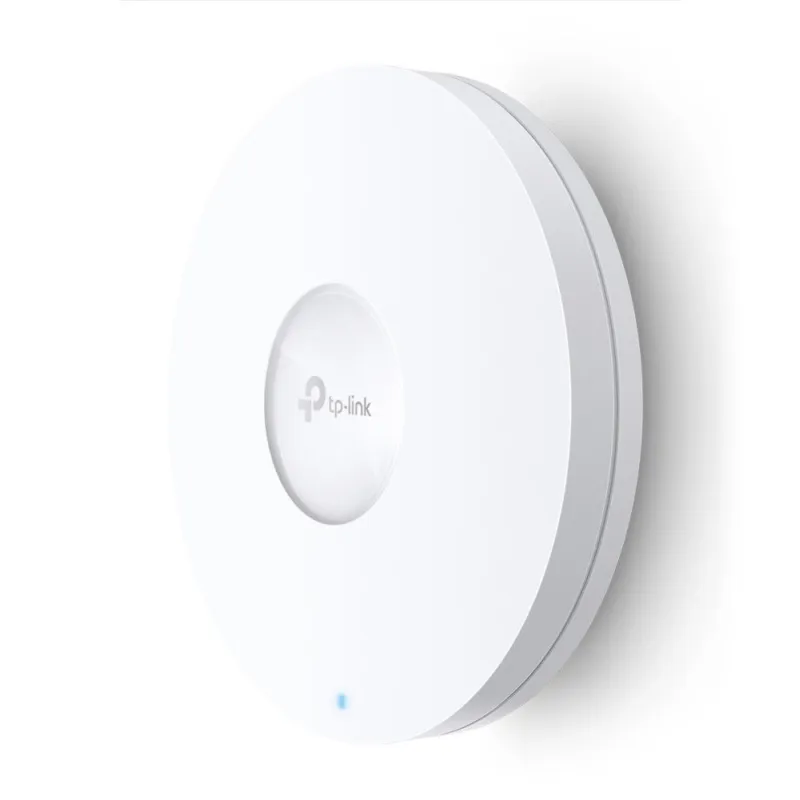

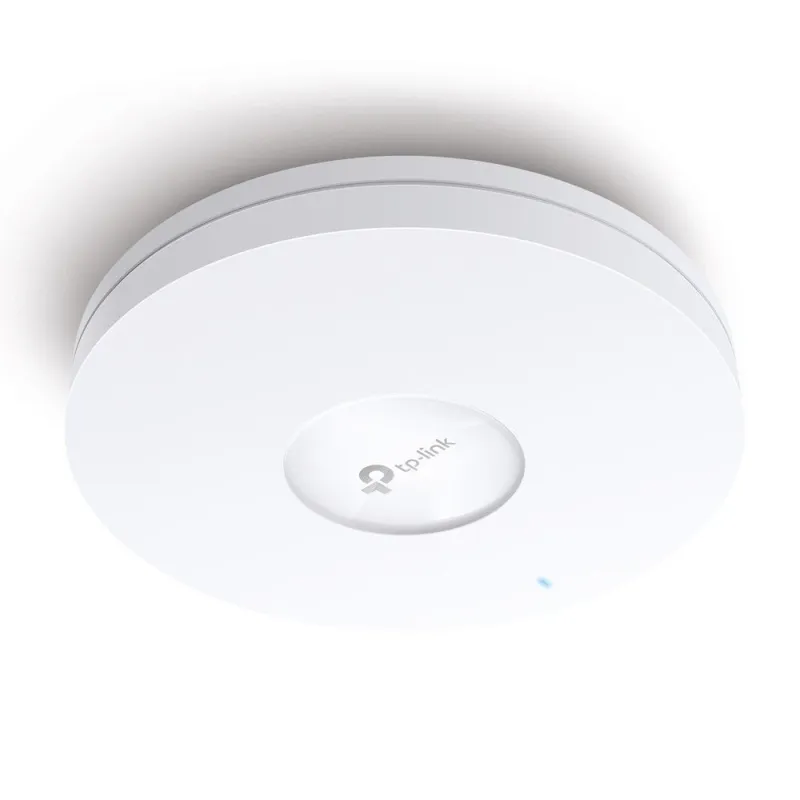

TP-LINK EAP660 HD Wireless AP WIFI6 AX 3550Mbps เสาภายใน 4x6dBi 5GHz, 4x5dBi 2.4GHz กระจายรอบทิศทาง, Port Lan 2.5Gbps
รองรับ Omada SDN Controller Software
|
HARDWARE FEATURES
|
|
Interface
|
1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
|
|
Button
|
Reset
|
|
Power Supply
|
• 802.3at PoE
• 12 V DC
|
|
Power Consumption
|
• EU: 18.5 W
• US: 21.5 W
|
|
Dimensions ( W x D x H )
|
9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
|
|
Antenna Type
|
Internal Omni
• 2.4 GHz: 4× 5 dBi
• 5 GHz: 4× 6 dBi
|
|
Mounting
|
Ceiling /Wall Mounting (Kits included)
|
WIRELESS FEATURES
|
|
Wireless Standards
|
IEEE 802.11ax/ac/n/g/b/a
|
|
Frequency
|
2.4 GHz and 5 GHz
|
|
Signal Rate
|
• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 1148 Mbps
|
|
Wireless Functions
|
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
|
|
Wireless Security
|
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
|
|
Transmission Power
|
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, EIRP)
• FCC:
<26 dBm (2.4 GHz)
<26 dBm (5 GHz)
|
MANAGEMENT
|
|
Omada App
|
Yes
|
|
Centralized Management
|
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
|
|
Cloud Access
|
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
|
|
Email Alerts
|
Yes
|
|
LED ON/OFF Control
|
Yes
|
|
Management MAC Access Control
|
Yes
|
|
SNMP
|
v1, v2c, v3
|
|
System Logging Local/Remote Syslog
|
Local/Remote Syslog
|
|
SSH
|
Yes
|
|
Web-based Management
|
HTTP/HTTPS
|
|
L3 Management
|
Yes
|
|
Multi-site Management
|
Yes
|
|
Management VLAN
|
Yes
|
OTHERS
|
|
Certification
|
CE, FCC, RoHS
|
|

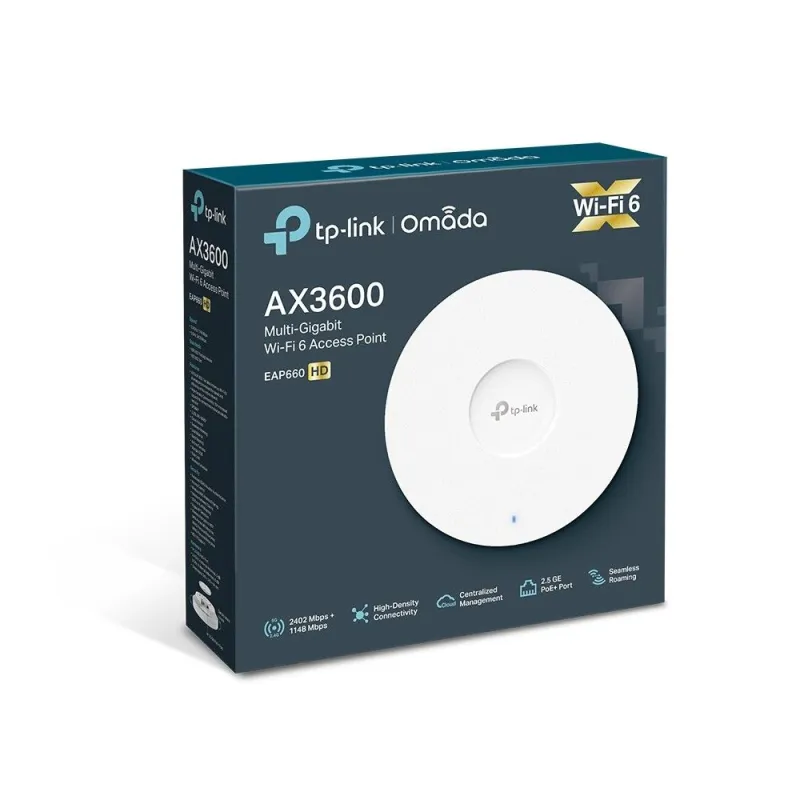

Package Contents
|
• EAP660 HD
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
|
|
System Requirements
|
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
|
|
Environment
|
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
|
|
รับประกัน
|
Limited lifetime
|
