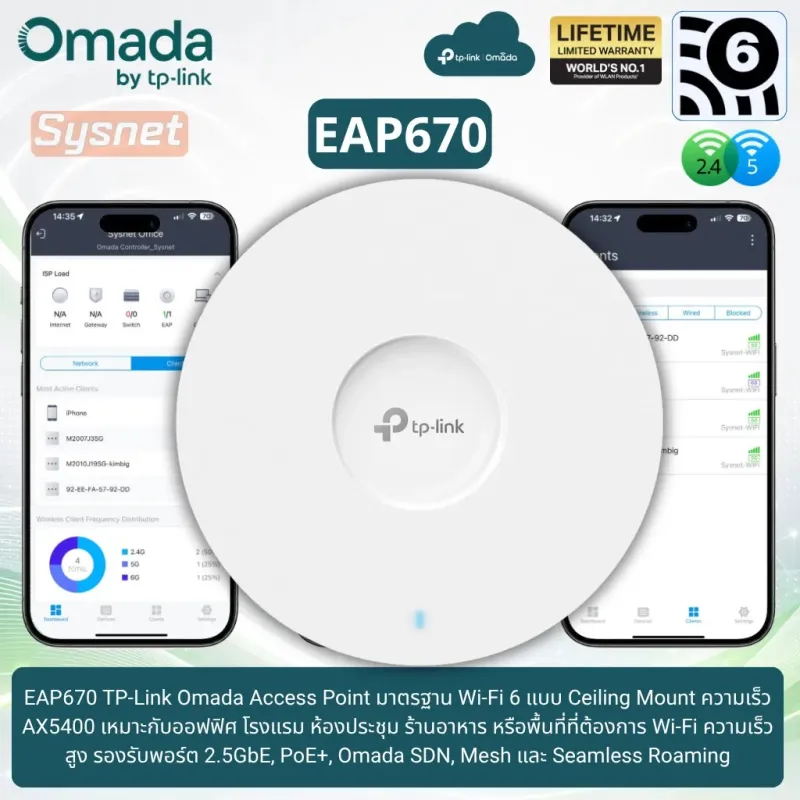

TP-Link EAP670

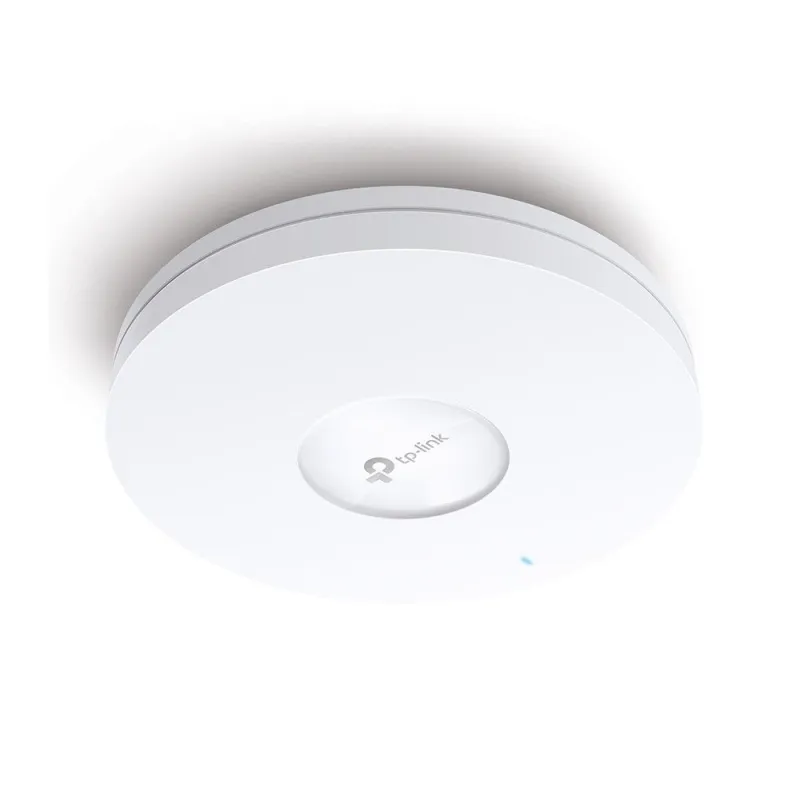

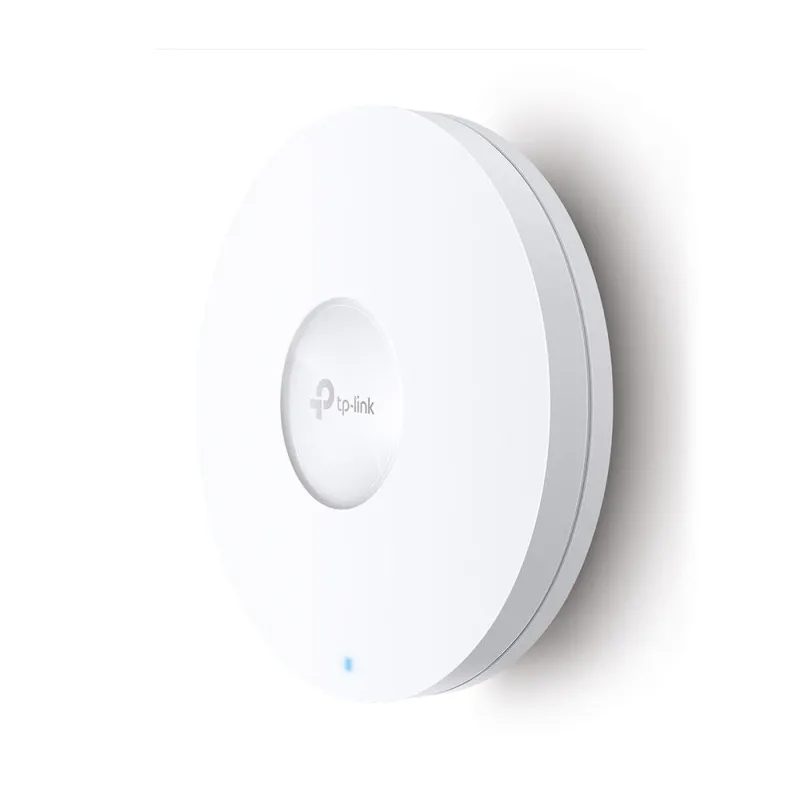

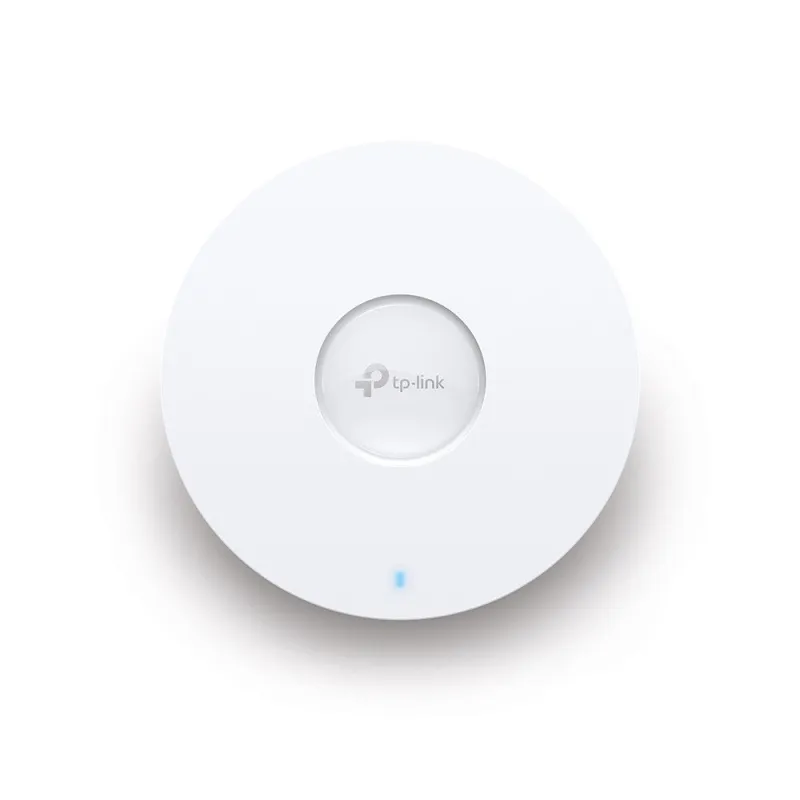

AX5400 Ceiling Mount WiFi 6 Access Point
- Blazing-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.†
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

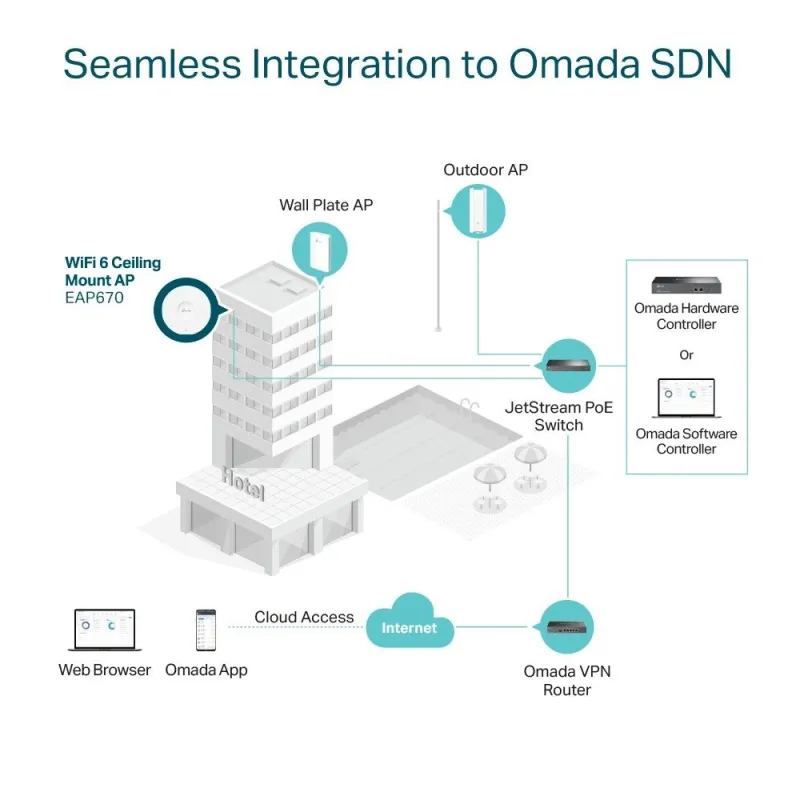

- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡

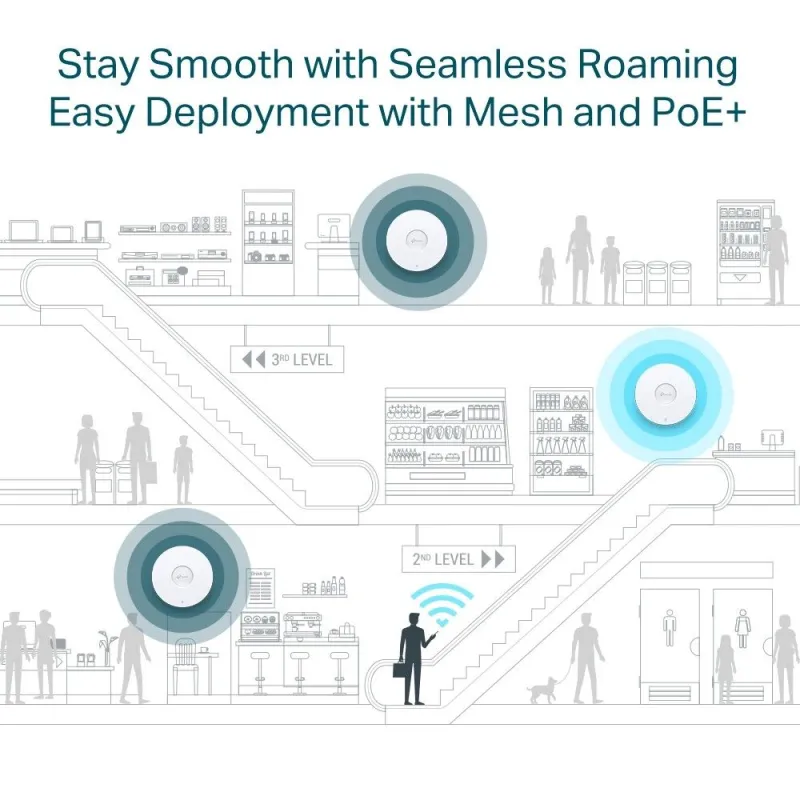

- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
Product Specification |
Overview | TP-LINK EAP670 Wireless Access Point มาตรฐาน WIFI6 AX5400, รองรับ Channel Width 160MHz, Port Lan ความเร็ว 2.5Gbps เสาภายใน 4x5dBi 5GHz, 2x4dBi 2.4GHz กระจายรอบทิศทาง รองรับ Omada SDN Controller Software |
|
|---|
Interface | 1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
|---|
Button | Reset |
|---|
Power Supply | • 802.3at PoE
• 12 V / 1.5 A DC |
|---|
Power Consumption | • EU: 18.1 W
• US: 19.8 W |
|---|
Dimensions ( W x D x H ) | 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm) |
|---|
Antenna Type | Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 4× 5 dBi |
|---|
Mounting | Ceiling /Wall Mounting (Kits included) |
|---|
|
|---|
Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
|---|
Frequency | 2.4 GHz and 5 GHz |
|---|
Signal Rate | • 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 574 Mbps
|
|---|
Wireless Functions | • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client |
|---|
Wireless Security | • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
|---|
Transmission Power | • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, , band1 & band2, EIRP)
<30 dBm(5 GHz, , band3, EIRP)
• FCC:
<25 dBm (2.4 GHz)
<28 dBm (5 GHz) |
|---|
|
|---|
Omada App | Yes |
|---|
Centralized Management | • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller |
|---|
Cloud Access | Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller) |
|---|
Email Alerts | Yes |
|---|
LED ON/OFF Control | Yes |
|---|
Management MAC Access Control | Yes |
|---|
SNMP | v1, v2c, v3 |
|---|
System Logging Local/Remote Syslog | Local/Remote Syslog |
|---|
SSH | Yes |
|---|
Web-based Management | HTTP/HTTPS |
|---|
L3 Management | Yes |
|---|
Multi-site Management | Yes |
|---|
Management VLAN | Yes |
|---|
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
|---|
|
|---|
Certification | CE, FCC, RoHS |
|---|
Package Contents | • EAP670
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
|
|---|
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
|---|
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
|---|
รับประกัน | Limited lifetime |
รายละเอียดสินค้า
20 รายการ
ข้อมูลสินค้า
- ลักษณะงาน Wireless
- กระจายสัญญาณ WIFI
- ความเร็ว มาตรฐาน WIFI
- WIFI-6 (ax) 1.7Gbps+
- ย่านความถี่
- Dual-Band 2.4/5GHz
- รองรับ Controller
- Hardware Controller
- รองรับ POE
- Yes
