| Product Specification |

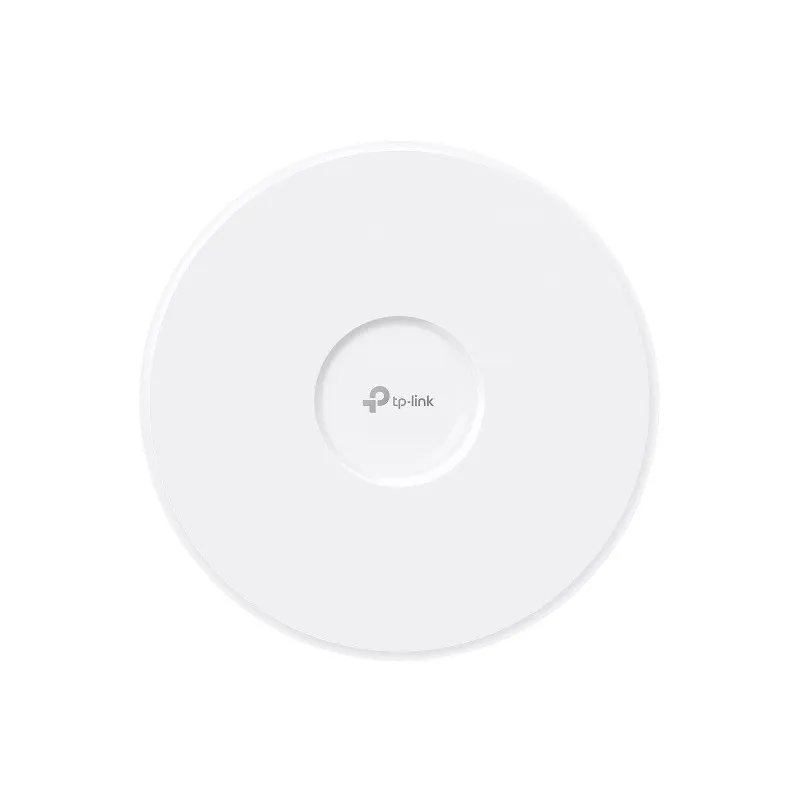

| Overview | TP-LINK EAP783 Wireless AP WIFI7 BE22000 Tri-Band 2.4/5/6GHz, Port Lan 10Gbps 2 Port, Bandwidth 320MHz กระจายรอบทิศทาง รองรับ Omada SDN Controller Software |
| GENERAL |
| Weight | Net Weight:1384.6g |
| HARDWARE FEATURES |
| Interface | 2× 10G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3bt PoE++ or 12V DC |
| Power Consumption | 39W |
| Dimensions ( W x D x H ) | 11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm) |
| Antenna Type | Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5.5 dBi
• 6 GHz: 4× 5 dBi |

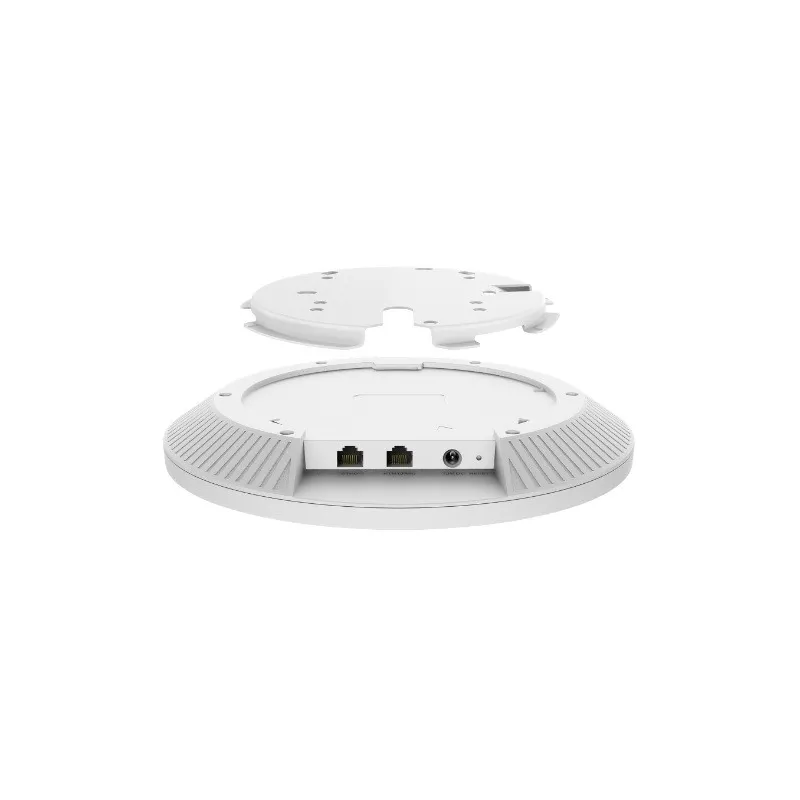

| Mounting | Ceiling / Wall Mounting (Kits Included) |
| WIRELESS FEATURES |
| Concurrent Clients | 640** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | • 6 GHz: Up to 11520 Mbps
• 5 GHz: Up to 8640 Mbps
• 2.4 GHz: Up to 1376 Mbps |
| Wireless Functions | • MLO
• 4K-QAM
• MU-MIMO
• HE320
• Mesh
• Automatic Channel Selection and Power Adjustment
• BBS Coloring
• OFDMA
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS
• Wireless Schedule
• Reboot Schedule |
| Wireless Security | • PPSK
• Captive Portal Authentication
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise,WPA3-Personal/Enterprise |
| Transmission Power | • FCC: <28 dBm (2.4 GHz)
<28 dBm (5G band 1&band 4)
<24 dBm (5G band 2&band 3)
<28 dBm (6 GHz) |
| MANAGEMENT |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
|
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS |
| Certification | CE, FCC, RoHS, IC |
| Package Contents | • EAP783
• Installation Guide
• Ceiling/Wall Mounting Kits |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing |
| รับประกัน | Limited lifetime |
|
| |
