Product Specification |

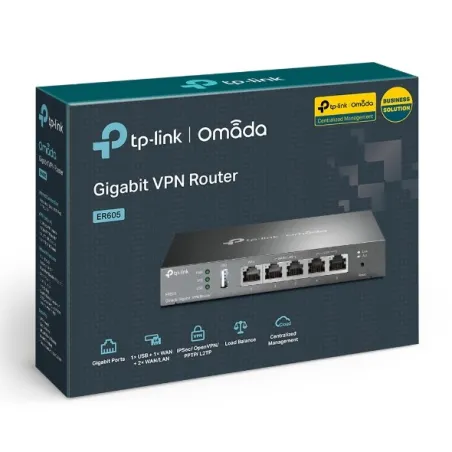

Overview | TP-LINK ER605 (TL-R605) V2 Omada Gigabit VPN Router, IPSec VPN PPTP, L2TP รองรับ Loadbalance ได้ 4 WAN, Managed ได้ทั้งแบบ Controller Mode (ผ่าน Omada Controller) และ Standalone Mode |
HARDWARE FEATURES |
|---|
Standards and Protocols | • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
|---|
Interface | • 1 Fixed Gigabit WAN Port
• 2 Fixed Gigabit LAN Ports
• 2 Changeable Gigabit WAN/LAN Ports
• 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup‡) |
|---|
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
|---|
Button | Reset Button |
|---|
Power Supply | External 9V/0.85A DC Adapter |
|---|
Flash | SPI 16MB |
|---|
DRAM | 128 MB |
|---|
LED | PWR, SYS, WAN, LAN |
|---|
Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm) |
|---|
PERFORMANCE |
|---|
Concurrent Session | 25,000 |
|---|
IPsec VPN Throughput | 41.5 Mbps |
|---|
BASIC FUNCTIONS |
|---|
WAN Connection Type | • Static/Dynamic IP
• PPPoE
• PPTP
• L2TP |
|---|
MAC Clone | Modify WAN/LAN MAC Address† |
|---|
DHCP | • DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP*
• Multi-IP Interfaces* |
|---|
IPv6 | Developing† |
|---|
VLAN | 802.1Q VLAN |
|---|
IPTV | IGMP v2/v3 Proxy |
|---|
ADVANCED FUNCTIONS |
|---|
ACL | IP/Port/Protocol/Domain Name Filtering |
|---|
Advanced Routing | • Static Routing
• Policy Routing |
|---|
Bandwidth Control | • IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth |
|---|
Load Balance | • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection |
|---|
NAT | • One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
|---|
Security | • SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management |
|---|
Session Limit | IP-based Session Limit |
|---|
VPN |
|---|

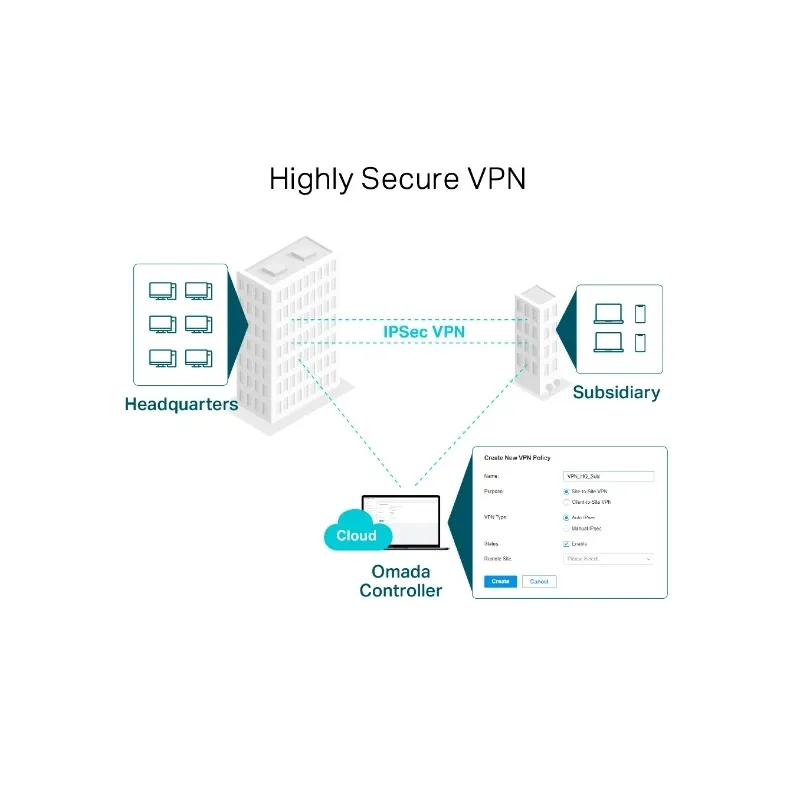

IPsec VPN | • 20 IPsec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2*
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
*These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller |
|---|
PPTP VPN | • PPTP VPN Server
• 10 PPTP VPN Clients△
• 16 Tunnels
• PPTP with MPPE Encryption |
|---|
L2TP VPN | • L2TP VPN Server
• 10 L2TP VPN Clients△
• 16 Tunnels
• L2TP over IPSec |
|---|
OpenVPN | • OpenVPN Server*
• 10 OpenVPN Clients*
• 16 OpenVPN Tunnels* |
|---|
SECURITY |
|---|
Filtering | WEB Group Filtering§
URL Filtering
Web Security§ |
|---|
ARP Inspection | • Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§ |
|---|
Attack Defense | • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN |
|---|
Access Control | Source/Destination IP Based Access Control |
|---|
AUTHENTICATION |
|---|
Web Authentication | • No Authentication
• Simple Password*
• Hotspot（Local User / Voucher* / SMS* / Radius*）
• External Radius Sever
• External Portal Sever*
• Facebook* |
|---|
MANAGEMENT |
|---|
Omada App | Yes |
|---|
Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller |
|---|
Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
|---|
Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
|---|
Maintenance | • Time Setting
• Diagnostic
• Firmware Upgrade
• Factory Defaults/Reboot
• Backup&Restore
• System Log
• Remote Management
• Statistics
• Controller Settings
• SNMP |
|---|
Management Features | • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• ZTP (Zero-Touch Provisioning)** |
|---|
OTHERS |
|---|
Certification | CE, FCC, RoHS |
|---|
Package Contents | • Gigabti VPN Router ER605 V2
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide |
|---|
System Requirements | Microsoft® Windows® 10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
|---|
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
|---|
รับประกัน | Limited Lifetime *** รบกวนสอบถามก่อนทำการสั่งซื้อทุกครั้ง กรณีไม่ได้แจ้งรายละเอียด ทางร้านขออนุญาติไม่รับ Support ทุกกรณีครับ*** |
| |
