Product Specification |

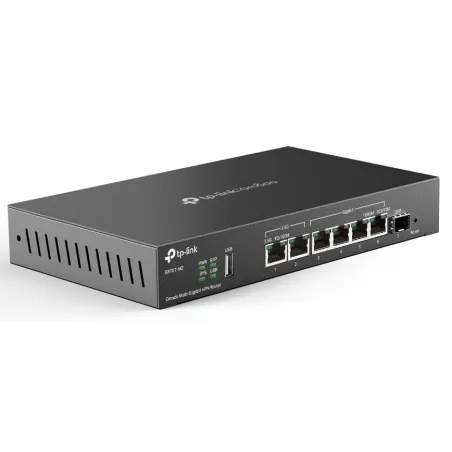

Overview | TP-LINK ER707-M2 Omada Multi-Gigabit VPN Router, IPSec VPN , L2TP, WireGuard พร้อม 2 Port Lan ความเร็ว 1/2.5Gbps, 1 Port SFP รองรับ Loadbalance ได้ 6 WAN Managed ได้ทั้งแบบ Controller Mode (ผ่าน Omada Controller) และ Standalone Mode |
HARDWARE FEATURES |
|---|

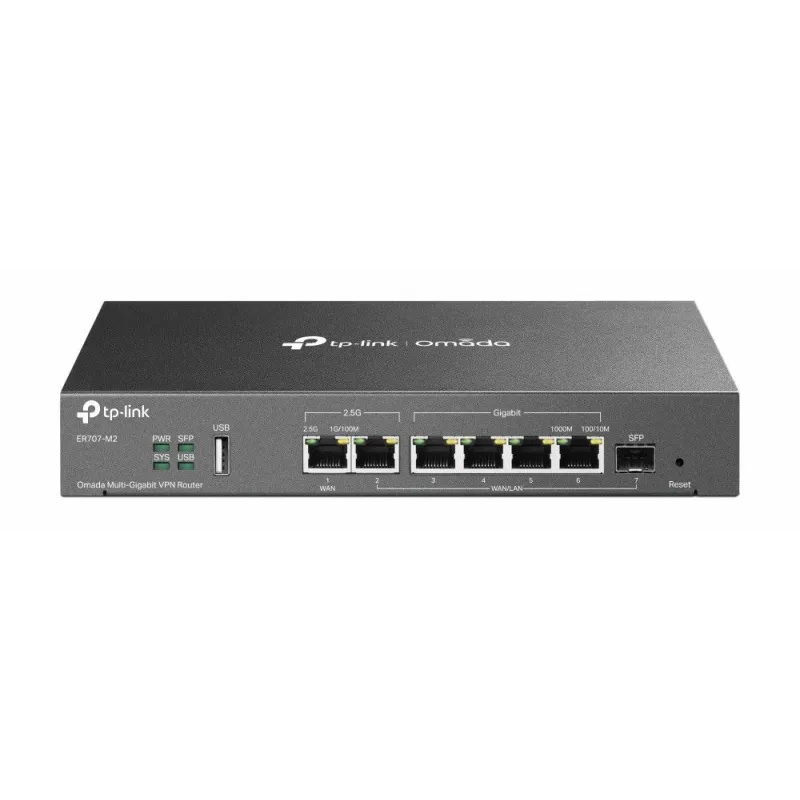

Interface | • 1× 2.5G RJ45 WAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 1× Gigabit SFP WAN/LAN Port
• 4× Gigabit RJ45 WAN/LAN Ports
• 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle) |
|---|
Button | Reset Button |
|---|

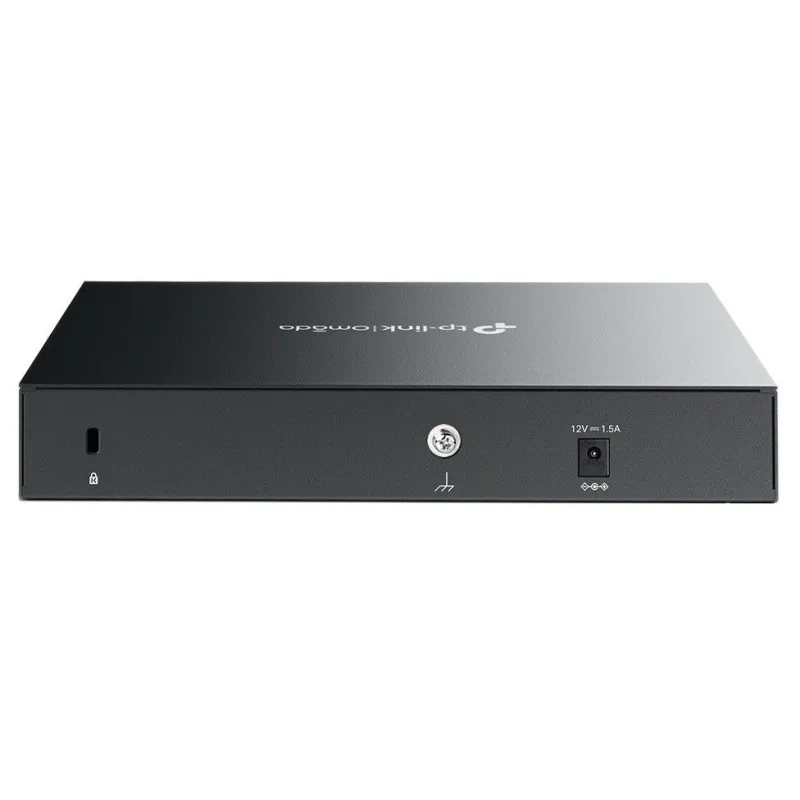

Power Supply | 12V/1.5A Adapter |
|---|
Flash | 128MB NAND |
|---|
DRAM | 1 GB DDR4 |
|---|
Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
|
|---|
Mounting | Desktop/Wall Mounting |
|---|
Max Power Consumption | 14.2 W (with USB2.0 connected)
7.1 W (without USB2.0 connected) |
|---|
PERFORMANCE |
|---|
Concurrent Session | 500,000 |
|---|
New Sessions /Second | 4,200 |
|---|
NAT (Static IP) | 2364.45 Mbps / 2343.28 Mbps |
|---|
NAT(DHCP) | 2364.24 Mbps / 2326.21 Mbps |
|---|
NAT(PPPoE) | 2350.93 Mbps / 2125.83 Mbps |
|---|
NAT (L2TP) | 1249.04 Mbps / 831.12 Mbps |
|---|
NAT (PPTP) | 1169.23 Mbps / 1175.52 Mbps |
|---|
IPsec VPN Throughput | ESP-MD5-AES256: 537.12 Mbps
ESP-SHA1-AES256: 754.65 Mbps |
|---|
L2TP VPN Throughput | Unencrypted: 1442.65 Mbps
Encrypted: 346.43 Mbps |
|---|
SSL VPN Throughput | 142.99 Mbps |
|---|
66 Byte Packet forwarding rate | 1832.69 Mbps / 1741.84 Mbps |
|---|
1,518 Byte Packet forwarding rate | 2461.18 Mbps / 2457.32 Mbps |
|---|
BASIC FUNCTIONS |
|---|
WAN Connection Type | • IPv4_Static IP
• IPv4_Dynamic IP
• IPv4_PPPOE
• IPv4_L2TP
• IPv4_PPTP
• IPv6_PPP
• IPv6_DHCPv6
• IPv6_Static IP
• IPv6_6in4
• IPv6_Pass-Through
• Mobile Broadband: 4G/3G modem for backup via USB port |
|---|
MAC Clone | Modify WAN/LAN MAC Address† |
|---|
DHCP | • DHCP Server/Client
• DHCP Address Reservation
• Multi-IP Interfaces*
• Multi-Net DHCP* |
|---|
IPv6 | WAN Connection |
|---|
VLAN | 802.1Q VLAN |
|---|
IPTV | IGMP v2/v3 Proxy |
|---|
ADVANCED FUNCTIONS |
|---|
Advanced Routing | • Static Routing
• Policy Routing |
|---|
Bandwidth Control | • IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth |
|---|
Load Balance | • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection |
|---|
NAT | • One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP |
|---|
Security | • Attack Defense:
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
• Filtering
Web Group Filtering
URL Filtering
Web Security
• ARP Inspection:
Sending GARP Packets
ARP Scanning
IP-MAC Binding
• Access Control
Source/Destination IP Based Access Control |
|---|
Session Limit | IP-based Session Limit |
|---|
VPN |
|---|
IPsec VPN | • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS) |
|---|
PPTP VPN | • PPTP VPN Server
• PPTP VPN Clients (12)
• 60 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption |
|---|
L2TP VPN | • L2TP VPN Server
• L2TP VPN Clients (12)
• 60 Tunnels (Shared with PPTP)
• L2TP over IPSec |
|---|
OpenVPN | • OpenVPN Server
• OpenVPN Clients (6)
• 66 OpenVPN Tunnels* |
|---|
SECURITY |
|---|
Filtering | WEB Group Filtering§
URL Filtering
Web Security§ |
|---|
ARP Inspection | • Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§ |
|---|
Attack Defense | • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN |
|---|
Access Control | Source/Destination IP Based Access Control |
|---|
AUTHENTICATION |
|---|
Web Authentication | • No Authentication
• Simple Password*
• Hotspot (Local User/Voucher* /SMS*/Radius*)
• External Radius Sever
• External Portal Sever*
• Facebook* |
|---|
MANAGEMENT |
|---|
Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
|---|
Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller |
|---|
Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
|---|
Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
|---|
Maintenance | • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Syslog Support |
|---|
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
|---|
Management Features | • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• ZTP (Zero-Touch Provisioning) |
|---|
OTHERS |
|---|
Certification | CE, FCC, RoHS |
|---|
Package Contents | • ER707-M2
• Power Adapter
• Quick Installation Guide |
|---|
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
|---|
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% non-condensing |
|---|
รับประกัน | Limited Lifetime |
