Product Specification |

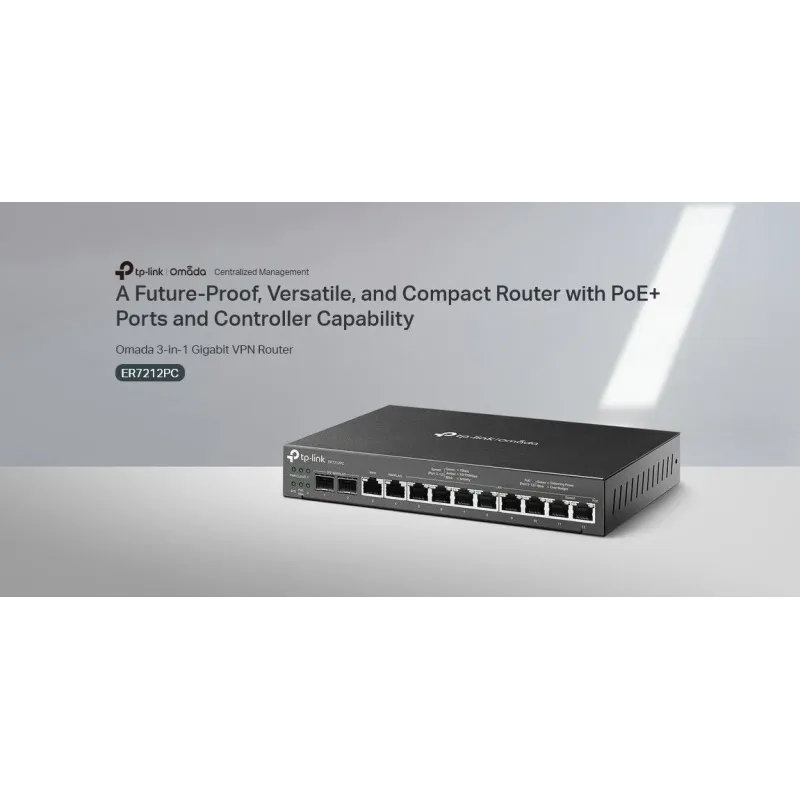

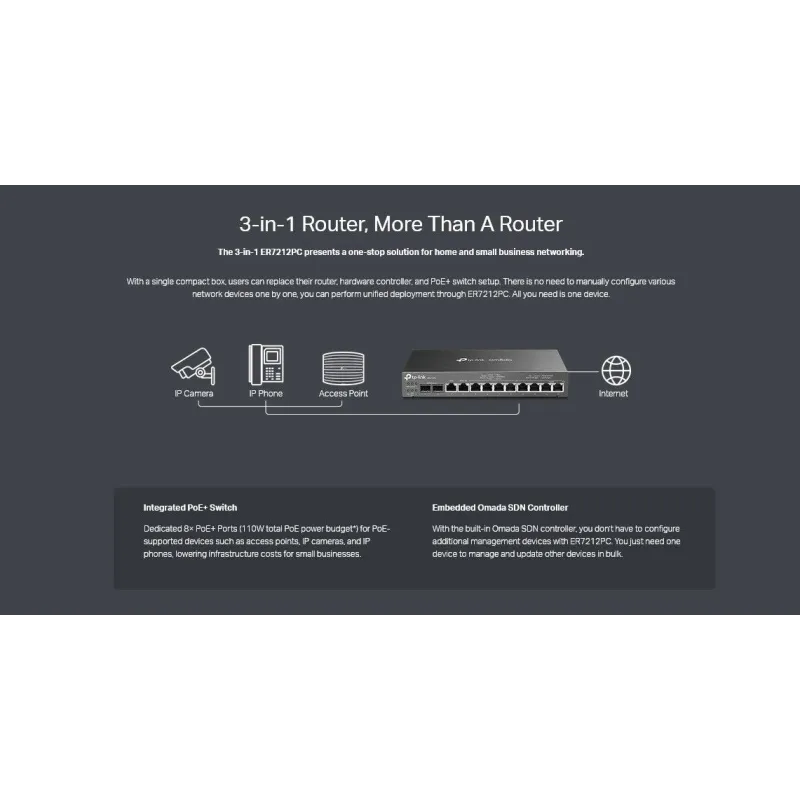

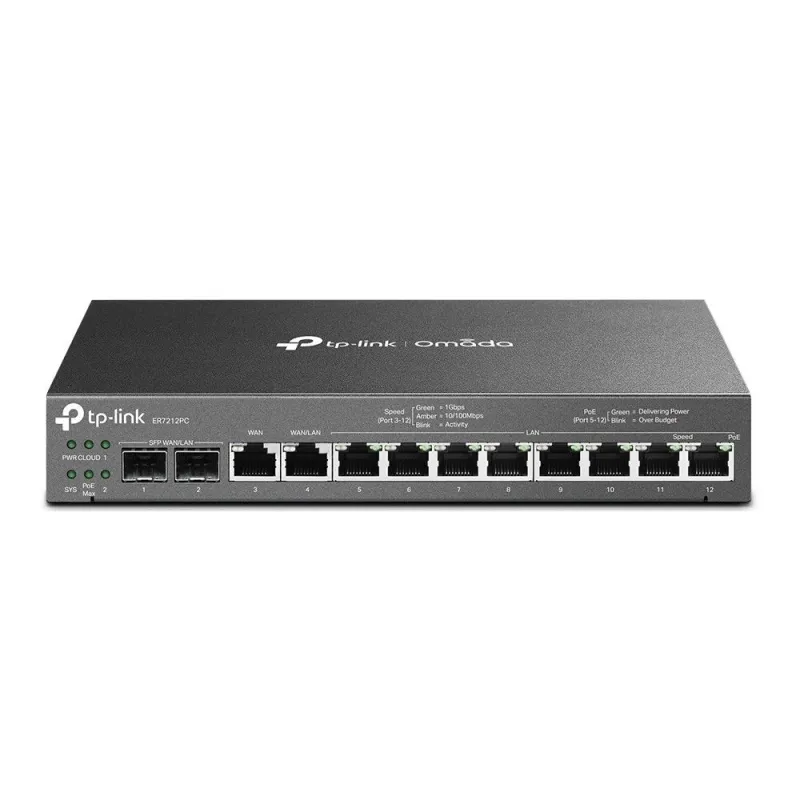

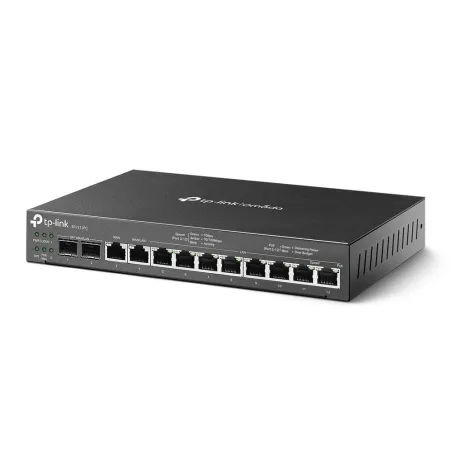

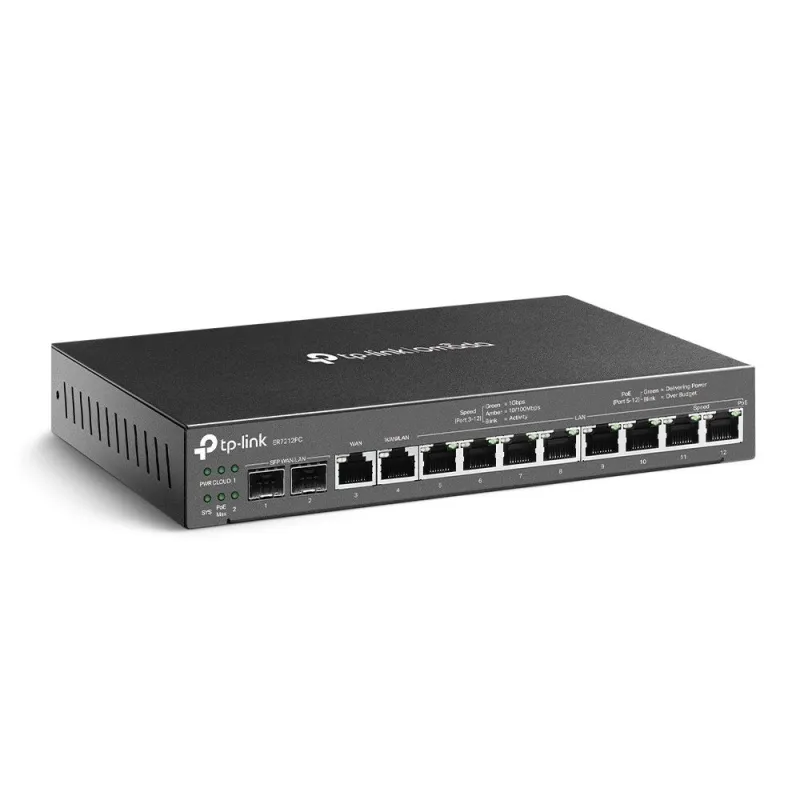

Overview | TP-LINK ER7212PC Omada 3-in-1 Gigabit VPN Router Loadbalance 4 WAN, IPSec VPN PPTP, L2TP, Managed ได้ทั้งแบบ Controller Mode (ผ่าน Omada Controller) และ Standalone Mode จ่ายไฟ POE 802.3af/at 4 Port สูงสุด 110W |
HARDWARE FEATURES |
|---|
Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
|
|---|

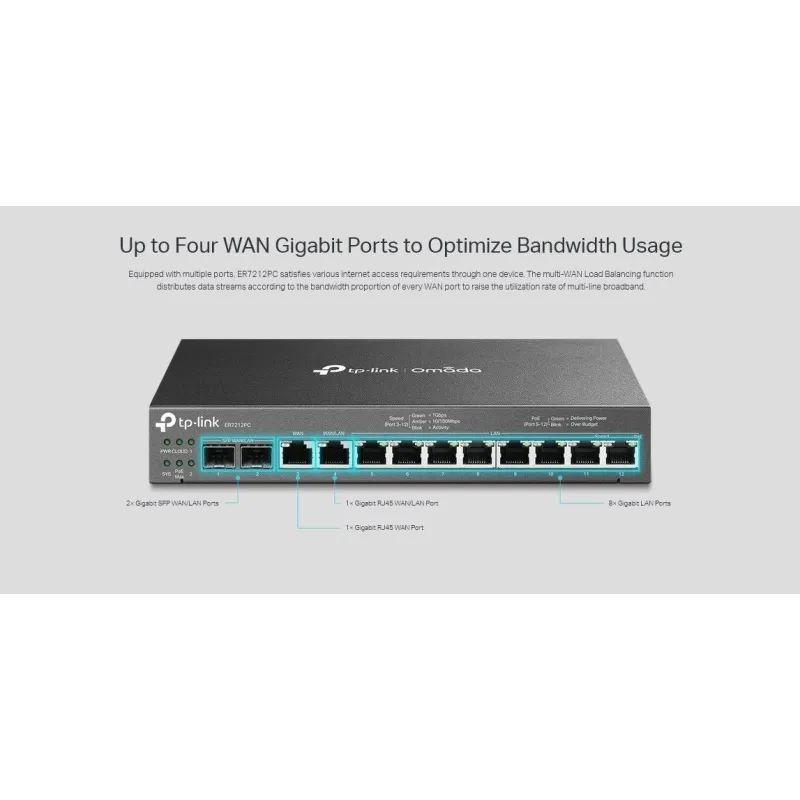

Interface | • 2 Gigabit SFP WAN/LAN ports
• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports |
|---|
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
|---|
Fan Quantity | Fanless |
|---|
Button | Reset Button |
|---|
Power Supply | 53.5VDC/2.43A Adapter |
|---|
PoE Budget | 8 ports PoE+ output, 110 W PoE Budget |
|---|
Flash | 8Mb Nor + 4 GB EMMC |
|---|
DRAM | 1 GB DDR3 |
|---|
Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
|
|---|
Protection | 4 kV surge protection |
|---|
Enclosure | Steel |
|---|
Mounting | Desktop/Wall-mount |
|---|
PERFORMANCE |
|---|
Concurrent Session | 24,980 |
|---|
New Sessions /Second | 1,900 |
|---|
NAT (Static IP) | 935.5 Mbps / 942.1 Mbps |
|---|
NAT(DHCP) | 940.2 Mbps / 941.7 Mbps |
|---|
NAT(PPPoE) | 913.1 Mbps / 935.2 Mbps |
|---|
NAT (L2TP) | 545.0 Mbps / 912.7 Mbps |
|---|
NAT (PPTP) | 523.0 Mbps / 912.8 Mbps |
|---|
IPsec VPN Throughput (AES256) | 168.5 Mbps |
|---|
OpenVPN | 34 Mbps |
|---|
L2TP VPN Throughput | • Unencrypted: 845.3 Mbps
• Encrypted: 333.2 Mbps |
|---|
PPTP VPN Throughput | • Unencrypted: 1012.6 Mbps
• Encrypted: 401.4 Mbps |
|---|
66 Byte Packet forwarding rate | 154,069 pps / 156,977 pps |
|---|
1,518 Byte Packet forwarding rate | 81,193 pps / 81,193 pps |
|---|
BASIC FUNCTIONS |
|---|
WAN Connection Type | • Static IP
• Dynamic IP
• PPPoE
• PPTP
• L2TP |
|---|
DHCP | • DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP |
|---|
IPv6 | support |
|---|
VLAN | 802.1Q VLAN |
|---|
IPTV | IGMP v2/v3 Proxy |
|---|
ADVANCED FUNCTIONS |
|---|
Advanced Routing | • Static Routing
• Policy Routing |
|---|
Bandwidth Control | IP/Port-based Bandwidth Control
|
|---|
Load Balance | • Intelligent Load Balance
• Application Optimized Routing
• Link Backup
• Online Detection |
|---|
NAT | • Multi-Net NAT
• Virtual Server
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
|
|---|
Session Limit | IP-based Session Limit |
|---|
VPN |
|---|
IPsec VPN | • 20 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• SHA1, SHA2 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS) |
|---|
PPTP VPN | • PPTP VPN Server
• PPTP VPN Client (10)
• 16 Tunnels
• PPTP with MPPE Encryption |
|---|
L2TP VPN | • L2TP VPN Server
• L2TP VPN Client (10)
• 16 Tunnels
• L2TP over IPSec |
|---|
OpenVPN | • OpenVPN Server
• OpenVPN Client (10)§
• 16 OpenVPN Tunnels |
|---|

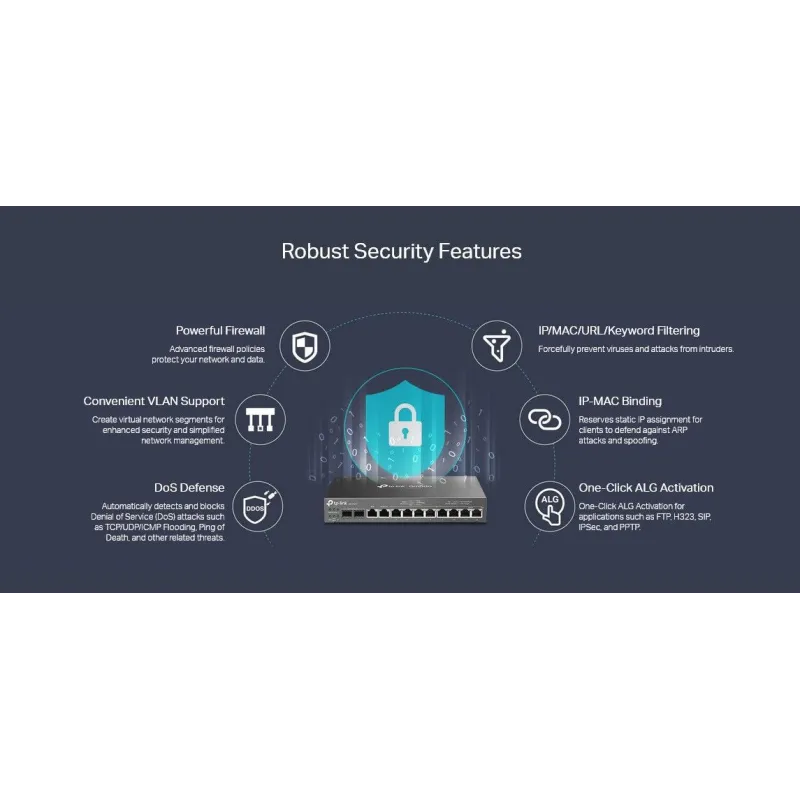

SECURITY |
|---|
Filtering | URL Filtering |
|---|
Attack Defense | • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN |
|---|
Access Control | Source/Destination IP Based Access Control |
|---|
AUTHENTICATION |
|---|
Web Authentication | • No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• Facebook |
|---|
MANAGEMENT |
|---|
Omada App | Yes |
|---|
Cloud Access | Yes |
|---|
Service | Dynamic DNS (Dyndns, No-IP) |
|---|
Maintenance | • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Syslog Support |
|---|
Management Features | • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• Management up to 1 Router, 2 Switches and 10 EAPs |
|---|
OTHERS |
|---|
Certification | CE, FCC, RoHS |
|---|
Package Contents | • ER7212PC
• Power Adapter
• Power Cord
• Quick Installation Guide |
|---|
System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux |
|---|
Environment | • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing |
|---|
การรับประกัน | Limited Lifetime |
| |
