TP-Link MR100 Product Specification |
|
Overview |

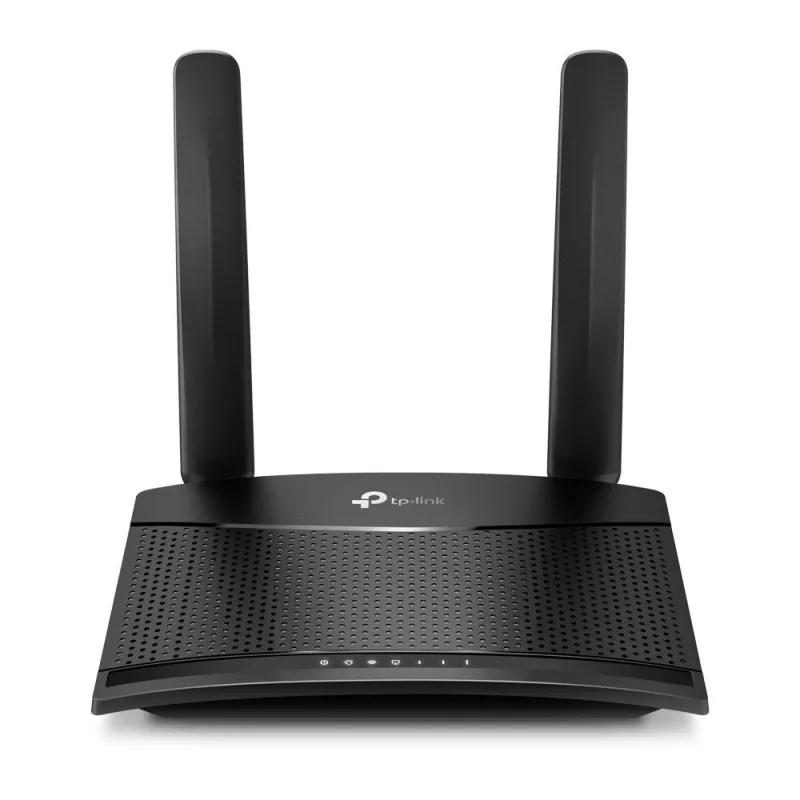

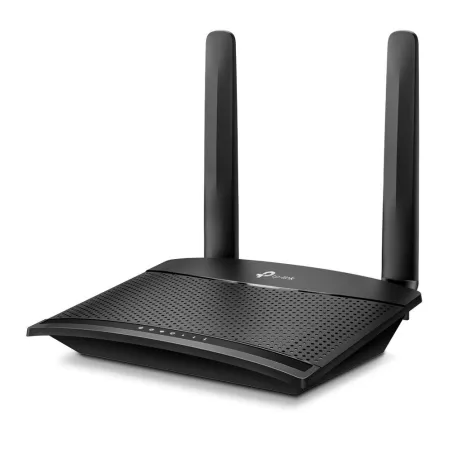

TP-Link MR100 Wireless N 300Mbps 4G LTE เราเตอร์ใส่ซิม รองรับ 4G LTE ทุกเครือข่าย True, DTAC และ AIS กระจายสัญญาณ Wifi 300Mbps 4G: FDD-LTE Cat4 (800/900/1800/2100/2600MHz), TDD-LTE (1900/2300/2500/2600MHz) ความเร็ว 150 Mbps (AIS, DTAC, TRUE H, MY) 3G: DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz) ความเร็ว 42 Mbps (AIS, TOT, TRUE H(2100Mhz), DTAC(2100Mhz) |
HARDWARE FEATURES |
|
---|---|
Interface |

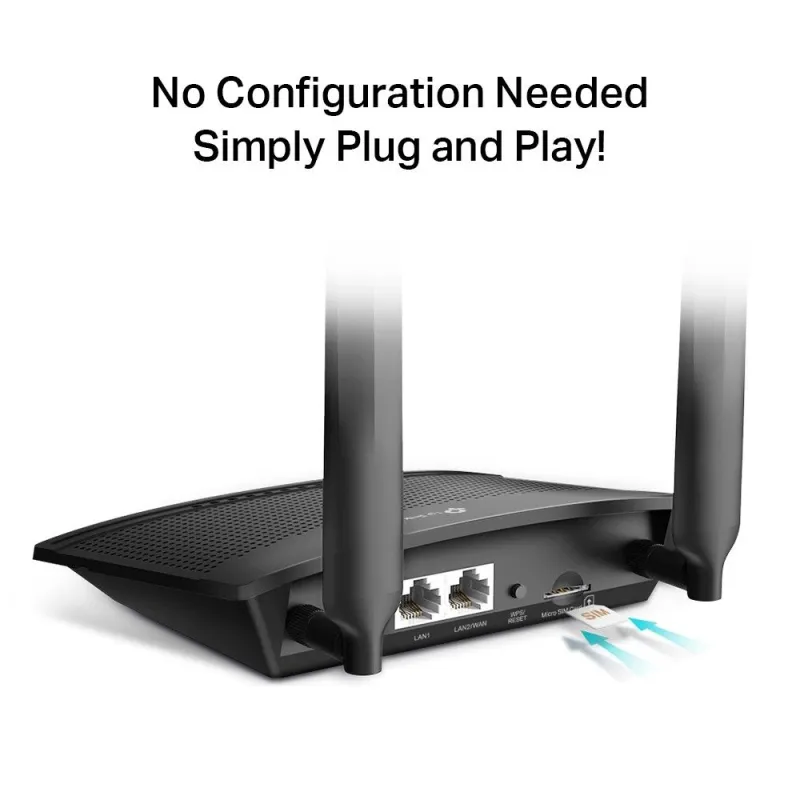

1 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, |
Button |
WPS/Reset Button, WiFi On/Off Button, Power On/Off Button |
External Power Supply |
12V/1A |
Dimensions ( W x D x H ) |
7.95 x 5.71 x 1.34 in. (202 x 145 x 34 mm) |
Antenna |
V2: 2 Internal 4G LTE Antennas |
WIRELESS FEATURES |
|
Wireless Standards |
IEEE 802.11b/g/n 2.4GHz |
Frequency |
2.4 GHz |
Signal Rate |
300 Mbps at 2.4 GHz |
Reception Sensitivity |
|
Transmit Power |
CE: <20dBm(2.4GHz) |
Wireless Functions |
Enable/Disable Wireless Radio, WMM, |
Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
Network Type |
4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) |
SOFTWARE FEATURES |
|
Quality of Service |
Bandwidth Control |
Operating Modes |
3G/4G Router, Wireless Router |
WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management |
Access Control, Local Management, Remote Management |
DHCP |
Server, Client, DHCP Client List, Address Reservation |
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, NO-IP |
Access Control |
Parental Control, Local Management Control |
Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter, |
Protocols |
Supports IPv4 and IPv6 |
Guest Network |
2.4GHz guest network x 1 |
OTHERS |
|
Certification |
CE, RoHS |
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10 |
Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
รับประกัน |
3 ปี |
|
** ในกรณีที่ต้องการทำ Dynamic DNS และ Forward Port เช่น เพื่อเชื่อมต่อกับกล้องเพื่อดูผ่าน Internet ให้ตรวจสอบกับผู้ให้บริการ เรื่อง IP Address ว่าเป็น IP Public หรือไม่ ในกรณีที่ไม่ได้เป็น IP Public จะไม่สามารถใช้ Dynamic DNS ได้ **สามารถใช้กับระบบ Cloud ได้ไม่มีปัญหาใดๆ |
