Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
|---|

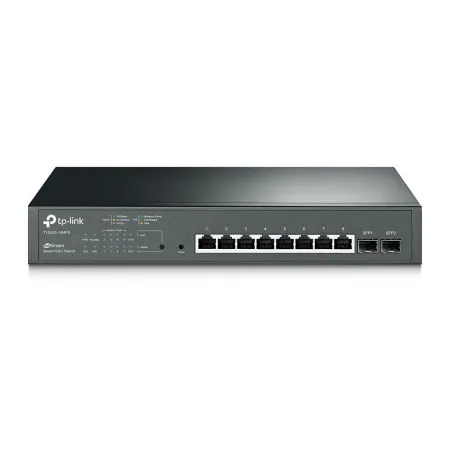

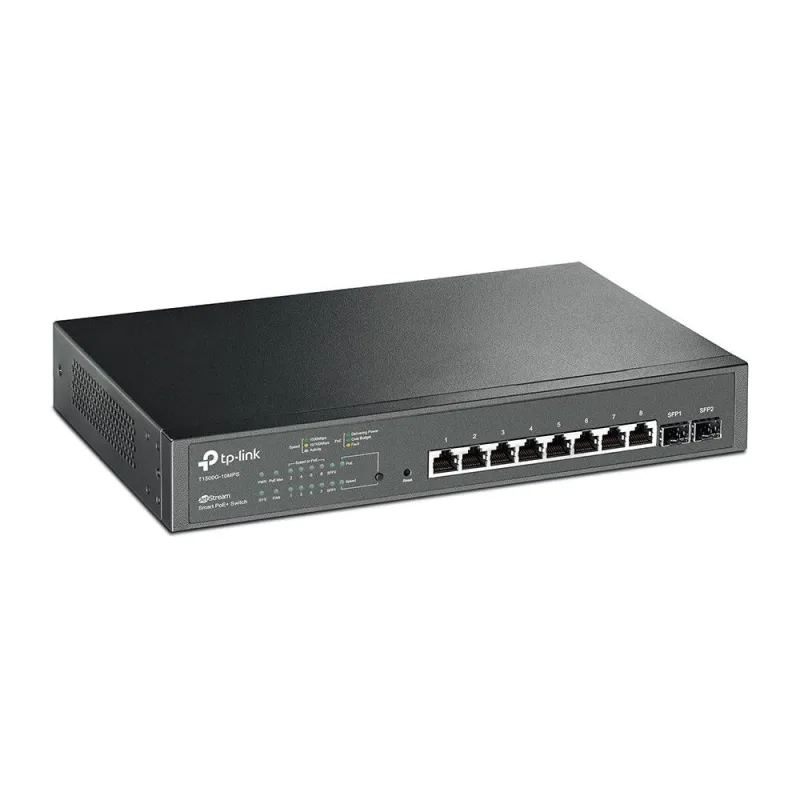

Interface | 8 10/100/1000Mbps RJ45 Ports, all supporting PoE+
2 100/1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX)
|
|---|
Network Media | 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
100Base-FX: MMF SFP Module
1000BASE-X: MMF, SMF
|
|---|
Fan Quantity | 1 |
|---|

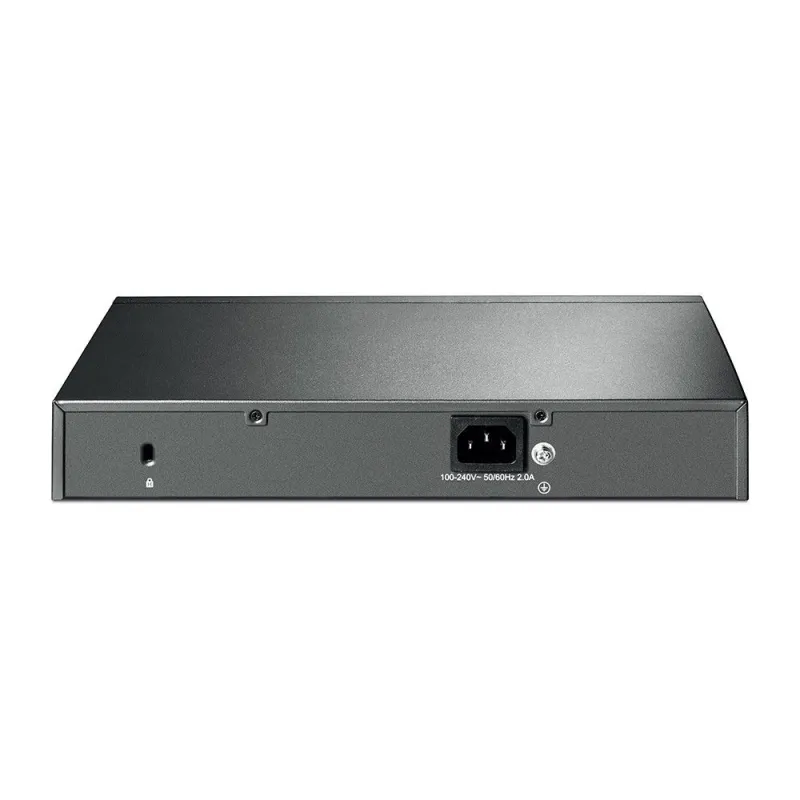

Power Supply | 100-240V, 50/60Hz |
|---|
Power Consumption | Maximum (PoE on): 136.6W (220V/50Hz)
Maximum (PoE off): 20.6W (220V/50Hz)
|
|---|
PoE+ Ports(RJ45) | Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
Power Supply: 116W
|
|---|
Dimensions ( W x D x H ) | 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm) |
|---|
Switching Capacity | 20Gbps |
|---|
Packet Forwarding Rate | 14.9Mpps |
|---|
MAC Address Table | 8K |
|---|
Packet Buffer Memory | 512KB |
|---|
Jumbo Frame | 9KB |
|---|
Quality of Service | 802.1p CoS/DSCP priority
4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
|
|---|
L2 Features | IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
LLDP, LLDP-MED
|
|---|
VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
|---|
Access Control List | L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports |
|---|
Security | Port Security
DHCP Snooping
IP-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend
|
|---|
Management | Web-based GUI
Command Line Interface(CLI) through telnet
SNMP v1/v2c/v3,compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image
|
|---|
Certification | CE, FCC, RoHS |
|---|
Package Contents | T1500G-10MPS
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
|
|---|
System Requirements | Microsoft? Windows? 98SE, NT, 2000, XP, Vista? or Windows 7/8, MAC? OS, NetWare?, UNIX? or Linux. |
|---|
Environment | Operating Temperature: 0~40C (32~104F);
Storage Temperature: -40~70C (-40~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
รับประกัน | Limited lifetime |
