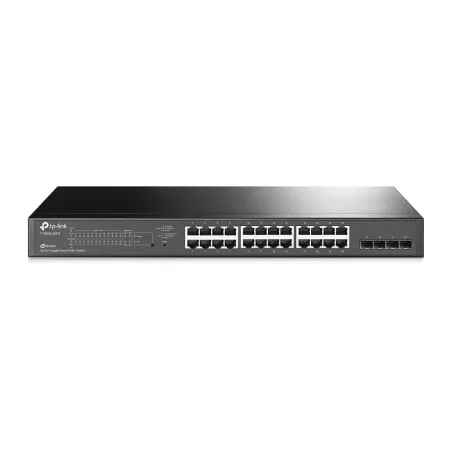

Overview | TP-Link T1600G-28PS JetStream 24-Port Gigabit Smart PoE+ L2 Managed Switch Gigabit รองรับ POE 24 Port มาตรฐาน 802.3af/at สูงสุดรวม 192W
รองรับการทำ 802.1Q VLAN, Static Routing, DHCP Relay, DHCP Server, IGMP Snooping v3, MAC/Protocol-based VLAN
รองรับ Omada Controller |
|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
|---|
Interface | 24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Gigabit SFP Slots
|
|---|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
|
|---|
Fan Quantity | 2 |
|---|
Power Supply | 100~240VAC, 50/60Hz |
|---|
Power Consumption | Maximum (PoE on): 264.8W
Maximum (PoE off): 28.2W
|
|---|
PoE+ Ports(RJ45) | Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 192W
|
|---|
Jumbo Frame | |
|---|
Dimensions ( W x D x H ) | 17.3 x 8.7 x 1.73 in.
(440 * 220 * 44 mm) |
|---|
Bandwidth/Backplane | 56Gbps |
|---|
Packet Forwarding Rate | 41.7Mpps |
|---|
MAC Address Table | 8 K |
|---|
Jumbo Frame | 9KB |
|---|
Quality of Service | Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
IPv6 QoS
Voice VLAN |
|---|
L2 and L2+ Features | Static Routing
DHCP Relay
DHCP Server
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
LLDP, LLDP-MED |
|---|
VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN |
|---|
Access Control List | L2~L4 package filtering
MAC ACL
IP ACL
Combined ACL
IPv6 ACL |
|---|
Security | AAA
Port Security
DHCP Snooping
IP-MAC-Port Binding
IPv6-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend |
|---|
IPv6 | Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6 |
|---|
IPv6 Applications | DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP |
|---|
Management | Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image
EEE |
|---|
Certification | CE, FCC, RoHS |
|---|
Package Contents | T1600G-28PS
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
|
|---|
System Requirements | Microsoft? Windows? XP, Vista? or Windows 7, Windows 8, MAC? OS, NetWare?, UNIX? or Linux. |
|---|
Environment | Operating Temperature: 0~40C (32~104F);
Storage Temperature: -40~70C (-40~158F)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing |
|---|
