Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
|---|
Interface | 24 10/100/1000Mbps RJ45 Ports
4 fixed 10G SFP+ Slots
|
|---|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR
|
|---|
Fan Quantity | Fanless |
|---|

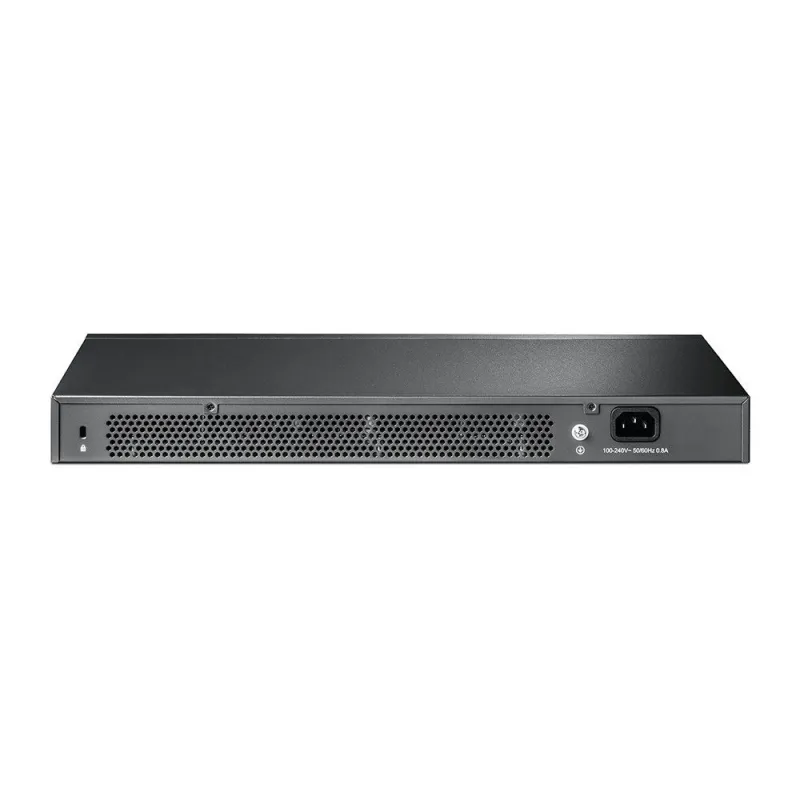

Power Supply | 100-240V, 50/60Hz |
|---|
Power Consumption | 21.8W |
|---|
Weight | 2.8kg |
|---|
Dimensions ( W x D x H ) | 17.32 * 7.1 * 1.73 in. (440 * 180 * 44 mm) |
|---|
PHYSICAL STACKING |
|---|
Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables | TXM431-SR
TXM432-LR
TXC432-CU1M
TXC432-CU3M
|
|---|
Max Number of Stacking Ports Installable | 2 SFP+ |
|---|
No. of Units Per Stack | Up to 6 units |
|---|
Stacking Speed (Per Port) | 20Gbps (Full-Duplex) |
|---|
PERFORMANCE |
|---|
Switching Capacity | Up to 128Gbps for a standalone switch |
|---|
Packet Forwarding Rate | Up to 95.2Mpps for a standalone switch |
|---|
MAC Address Table | 16K |
|---|
Packet Buffer Memory | 1.5MB |
|---|
Jumbo Frame | 9KB |
|---|
Number of Static Routes | 32 IPv4 |
|---|
Number of IP Interfaces | 16 |
|---|
SOFTWARE FEATURES |
|---|
Quality of Service | Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
IPv6 QoS*
Voice VLAN
|
|---|
L2 and L2+ Features | Static Routing
DHCP Relay*
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
LLDP, LLDP-MED*
|
|---|
VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN
|
|---|
Access Control List | L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
IPv6 ACL*
|
|---|
Security | AAA*
Port Security
DHCP Snooping
IP-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend
|
|---|
IPv6 | Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
|
|---|
IPv6 Applications | DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
|
|---|
Management | Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image
*These features will be supported in a future firmware release. |
|---|
OTHERS |
|---|
Certification | CE, FCC, RoHS |
|---|

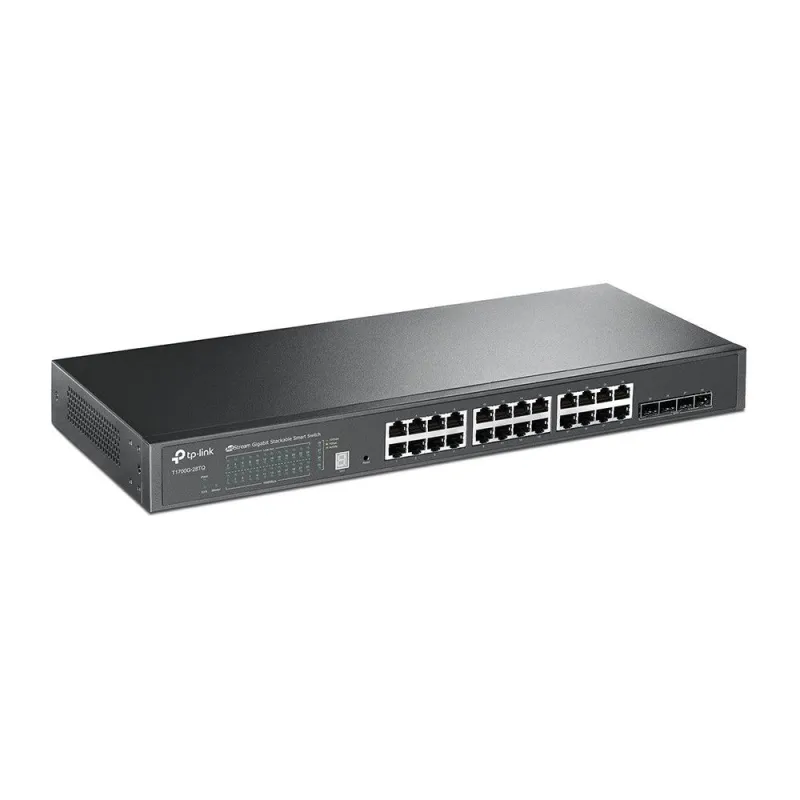

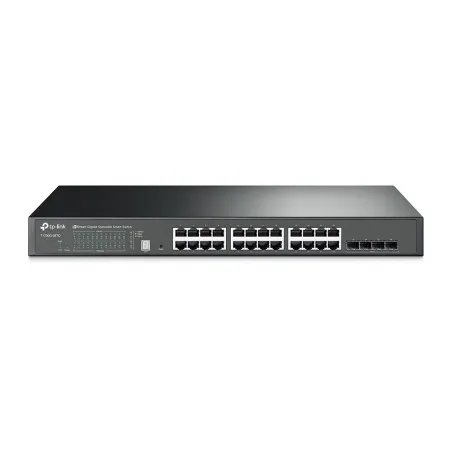

Package Contents | T1700G-28TQ
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
|
|---|
System Requirements | Microsoft Windows XP, Vista or Windows 7, Windows 8/8.1, MAC OS, NetWare, UNIX or Linux. |
|---|
Environment | Operating Temperature: 0~40C (32~104F);
Storage Temperature: -40~70C (-40~158F)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing |
|---|
