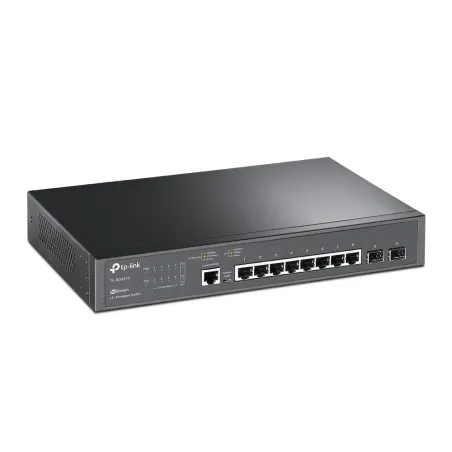

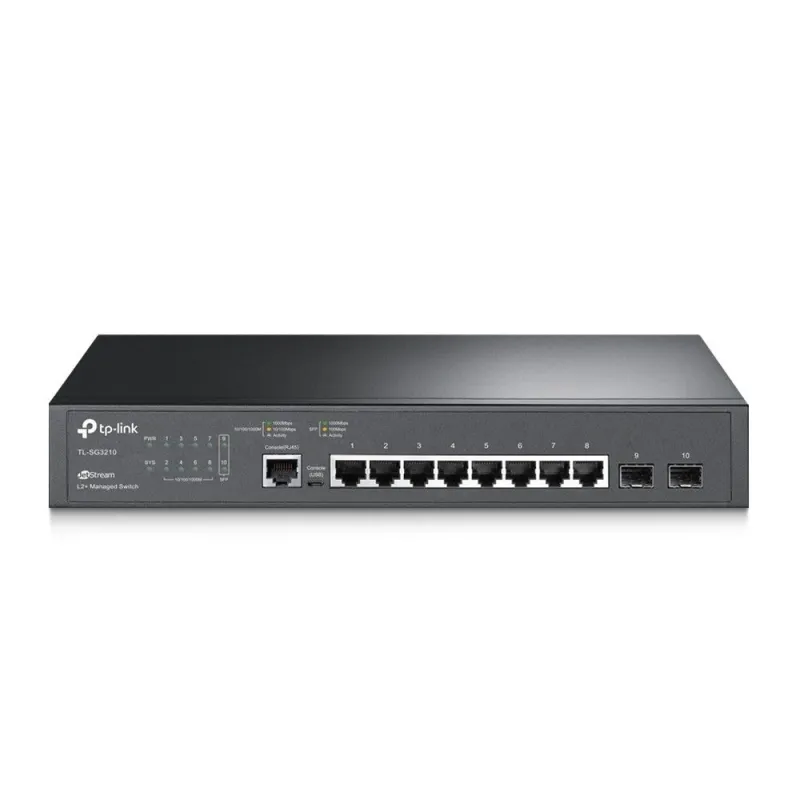

Overview | TP-LINK TL-SG3210 JetStream 8 Port Gigabit L2+ Managed Switch with 2 SFP Slots รองรับ 802.1Q VLAN, IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X รองรับ Omada Controller |
|---|
HARDWARE FEATURES |
|---|
Standards and Protocols | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad,
IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,
IEEE 802.1x,IEEE 802.1p |
|---|

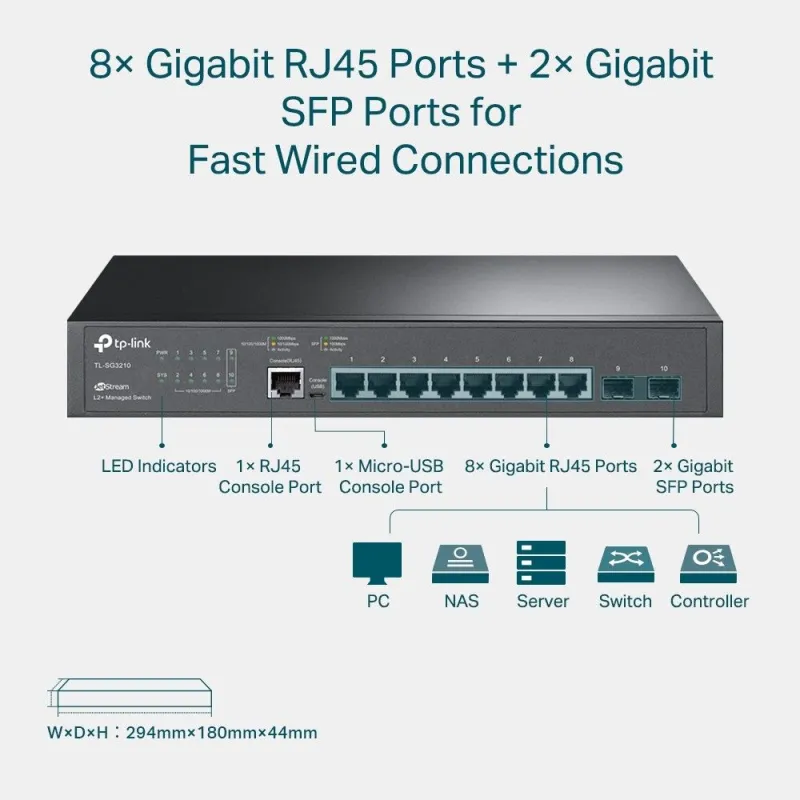

Interface | 8 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 1000Mbps SFP Slots
1 Console Port |
|---|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
1000BASE-X: MMF, SMF |
|---|
Fan Quantity | Fanless |
|---|

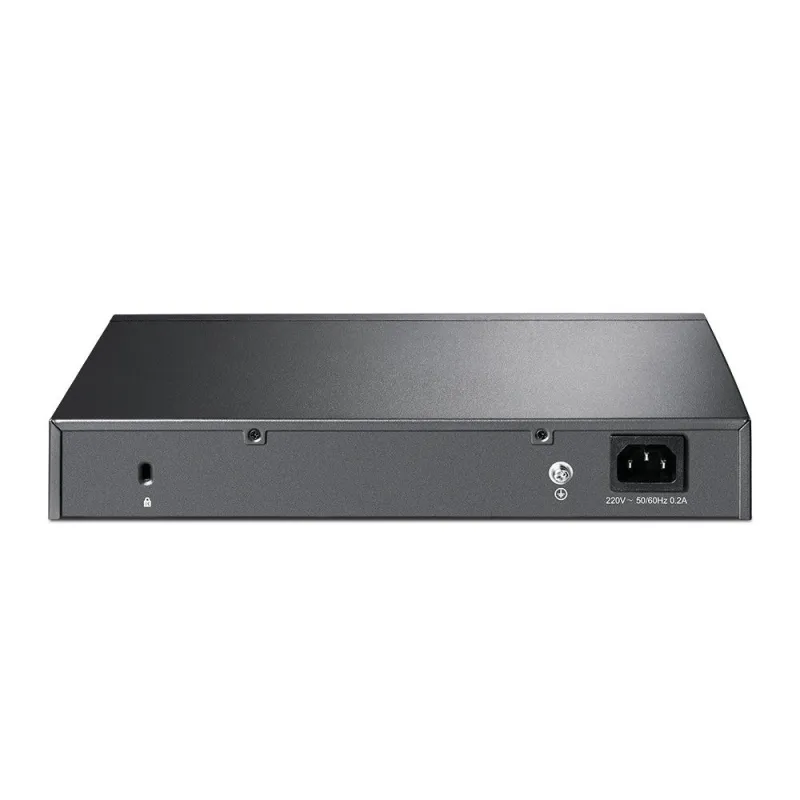

Power Supply | 100～240VAC, 50/60Hz |
|---|
Power Consumption | Maximum: 10.7W (220V/50Hz) |
|---|
Dimensions ( W x D x H ) | 11.6*7.9*1.7in. (294*200*44 mm) |
|---|
Mounting | Rack Mountable / Desktop |
|---|
Max Power Consumption | 6.84 W (220 V/50 Hz) |
|---|
Max Heat Dissipation | 23.33 BTU/h (220 V/50 Hz) |
|---|
PERFORMANCE |
|---|
Switching Capacity | 20 Gbps |
|---|
Bandwidth/Backplane | 20Gbps |
|---|
Packet Forwarding Rate | 14.9Mpps |
|---|
MAC Address Table | 8k |
|---|
Packet Buffer Memory | 4Mb |
|---|
Jumbo Frame | 10240 Bytes |
|---|
SOFTWARE FEATURES |
|---|
Quality of Service | Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN |
|---|
L2 and L2+ Features | • Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
• Loopback Detection
- Port-based
- VLAN based
• Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both |
|---|
L2 Features | IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
Port isolation
BPDU filtering/guard
TC/Root protect
Loop back detection
802.3x Flow Control |
|---|
L2 Multicast | • Supports 511 (IPv4, IPv6) IGMP groups
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
• IGMP Authentication
• MVR
• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
• Multicast Filtering: 256 profiles and 16 entries per profile |
|---|
VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Port/ MAC/Protocol-based VLAN
GARP/GVRP
Management VLAN configuration |
|---|
Access Control List | L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID;
Time Range Based |
|---|
Security | IP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
DoS Defence
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control |
|---|
IPv6 | Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6 |
|---|
IPv6 Applications | DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP |
|---|
L3 Features | • 16 IPv4/IPv6 Interfaces
• Static Routing
- 48 static routes
• Static ARP
• 316 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
• DHCP L2 Relay |
|---|
Management | Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client,DHCP Snooping,DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS |
|---|
Advanced Features | • Support Omada Hardware Controller (OC200/OC300), Software Controller
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule |
|---|
OTHERS |
|---|
Certification | CE, FCC, RoHS |
|---|
Package Contents | Switch; Power Cord; Quick Installation Guide;Resource CD; Rackmount Kit; Rubber Feet |
|---|
System Requirements | Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux. |
|---|
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
รับประกัน | Limited lifetime |
