Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
|---|

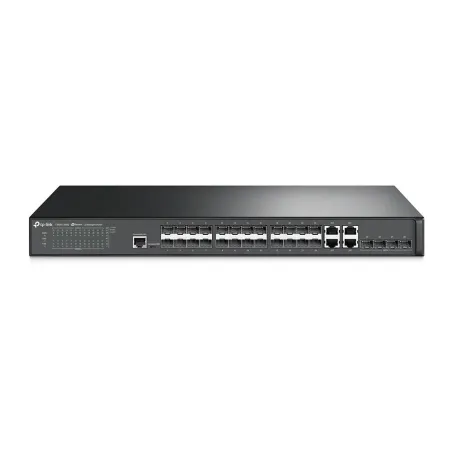

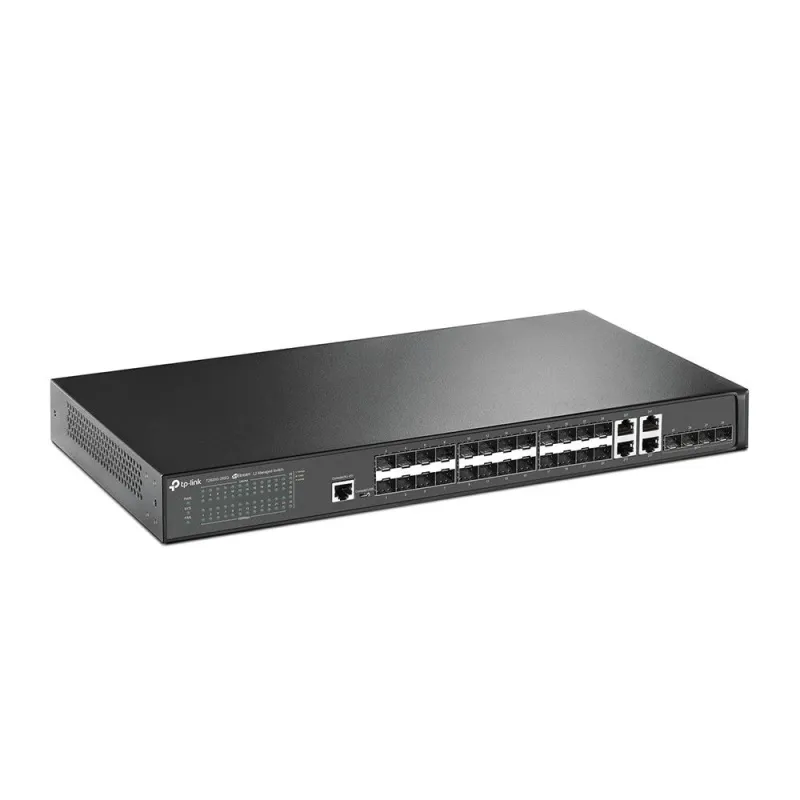

Interface | 24 Gigabit SFP Slots
4 Combo 10/100/1000 Mbps RJ45 Ports
4 10G SFP+ Slots
1 RJ45 Console Port
1 Micro-usb Console Port |
|---|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
1000BASE-X: MMF, SMF
10GBASE-X:MMF, SMF
10GSFP+CU “SFP+ Direct Attach Cable” (TXC432-CU1M, TXC432-CU3M) |
|---|
Fan Quantity | 2 |
|---|
Physical Security Lock | Yes |
|---|

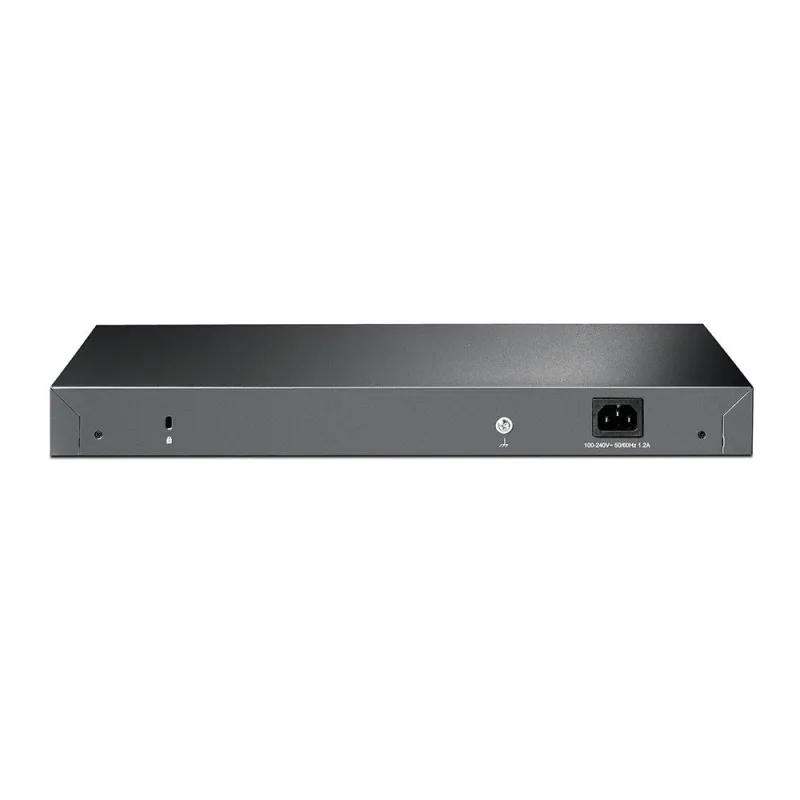

Power Supply | 100~240VAC, 50/60Hz |
|---|
Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.7 in.
(440 × 220 × 44 mm) |
|---|
Mounting | 19" 1U rack mountable |
|---|
Max Power Consumption | 29.7W |
|---|
Max Heat Dissipation | 101.2 BTU/h |
|---|
|
|---|
Bandwidth/Backplane | 128Gbps |
|---|
Packet Forwarding Rate | 95.2Mpps |
|---|
MAC Address Table | 16k |
|---|
Jumbo Frame | 9216 Bytes |
|---|
|
|---|
Quality of Service | Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN |
|---|
L2 and L2+ Features | Static Routing
DHCP Relay
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
L2PT |
|---|
VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
802.1Q/ MAC/Protocol-based/Private VLAN
GARP/GVRP |
|---|
Security | IP-MAC-Port Binding
AAA
802.1x and Radius Authentication
DoS Defend
Dynamic ARP Inspection (DAI)
SSH v1/v2
SSL v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control |
|---|
IPv6 | Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 ACL
DHCPv6 Snooping
IPv6 Interface |
|---|
IPv6 Applications | DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
IPv6 ACL
IPv6 Interface
IPv6 Routing
DHCPv6 Snooping |
|---|
Management | Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and TP-Link private MIBs
RMON (1, 2, 3, 9 groups)
sFlow
PPPoE Circuit ID
DHCP Relay
DHCP Server
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
Dual Image
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Password Recovery |
|---|
Access Control | L2～L4 package filtering based on source and destination MAC address,
IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based |
|---|
|
|---|
Certification | CE, FCC, RoHS |
|---|
Package Contents | Switch
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet |
|---|
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
รับประกัน | Limited lifetime |
