Product Specification |

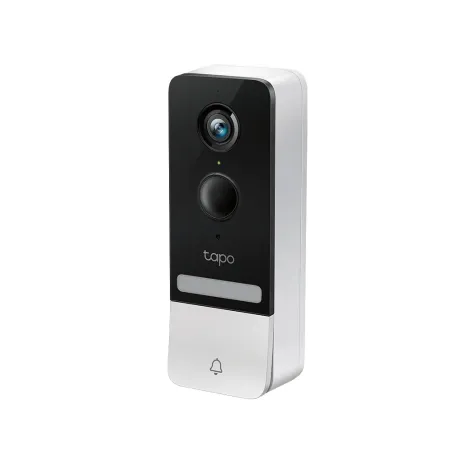

| Overview | TP-LINK Tapo D230S1 Smart Battery Video Doorbell อุปกรณ์กริ่งพร้อม Video สำหรับติดที่หน้าประตู ความละเอียดภาพ 5MP Live View Color Night Vision, พร้อม Smart AI Detection และแจ้งเตือน, ใช้ Battery ได้นานถึง 180 วัน กันน้ำกันฝุ่นมาตรฐาน IP64 Software รองรับการติดตั้งบน Smartphone iOS และ Android รองรับ MicroSD ความจุสูงสุด 512GB (ไม่มีในชุด) รองรับการดูผ่าน Cloud ไม่ต้อง Forward Port หรือ ทำ Dynamic DNS |
|
| Image Sensor | 1/2.7" Progressive Scan CMOS Sensor |
| Lens | Focal Length: 2.1 mm
Aperture: F2.1
Field of View: 166° (Diagonal), 135° (Horizontal), 102.8° (Vertical) |
| Night Vision | 850 nm IR LED (25 ft / 7.6 m)Full-Color Night Vision |
| Lighting | Built-in Spotlights |
| Interface & Button | 1× RESET Button1× Doorbell Button1× Anti-Theft Button |
| Hub Compatibility | Compatible with H200 (Included) |
|
| Device Compatibility | Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells. |
| Connection Capacity | Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells |
| Interface & Button | 1× Ethernet Port
1× RESET Button
1× MicroSD Card Slot (Up to 512 GB)
1x SYNC Button |
|
| Maximum Resolution | 2K 5MP (2560 × 1920px) |
| Frame Rate | 15 fps |
| Digital Zoom | 16x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNRWDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |

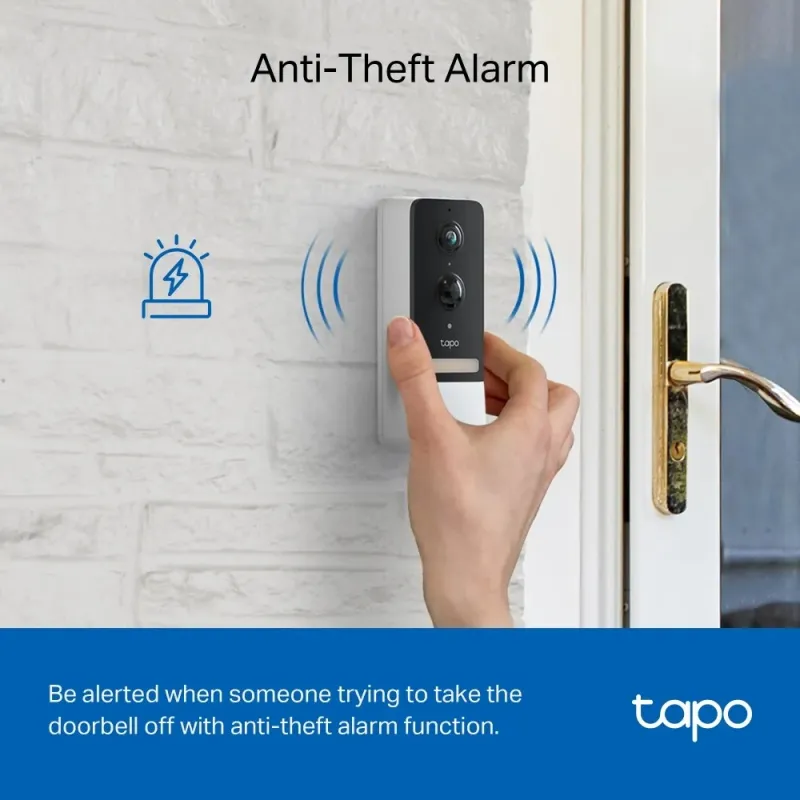

| Siren Volume | Doorbell: 96 dB (Anti-theft siren, Level measured at 4-inch/10-cm distance)
Hub:100 dB (Level measured at 4-inch/10-cm distance) |
|

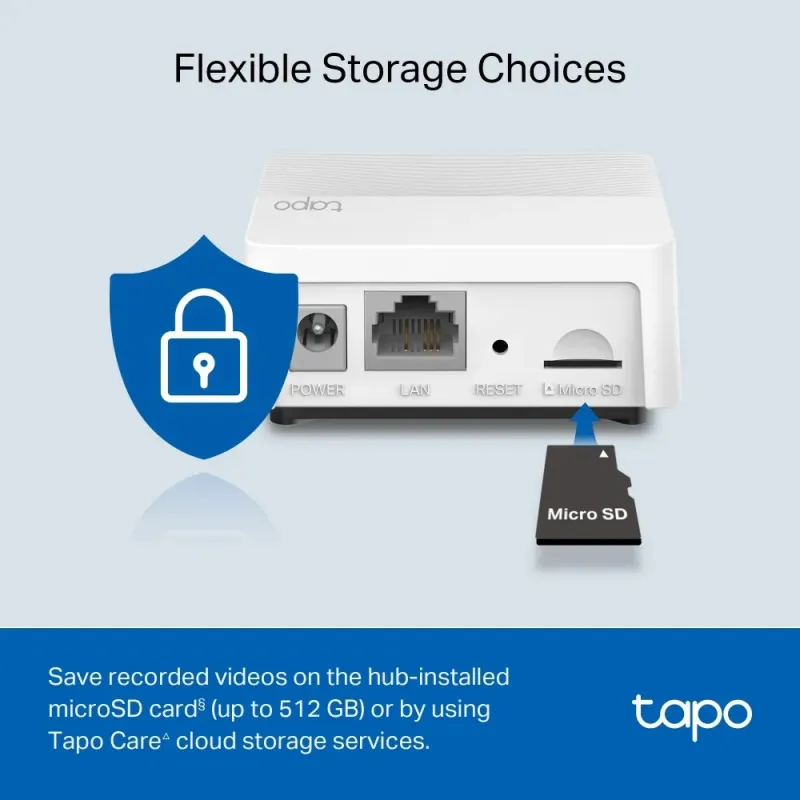

| Local Storage | MicroSD Card Slot on Hub (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
|
| Sensor | Single PIR Motion Sensor (FOV: 130° horizontal)
One Ambient Light Sensor |
| AI Detection | Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Package Detection |
| Activity Zones | Yes*Only works with Motion Detection. |
| Output Notification | System Notification
System Notification with Snapshot (Tapo Care Services) |
|
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Sub-1G, 868MHz (Used for local connection between doorbell and hub) |
| Ethernet Port | 1× 10/100 Mbps RJ45 Port on Hub |
|
| Security | On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK |
|
| Power Source | Doorbell: 6700 mAh Removable Rechargeable Lithium-ion Battery
Hub: 9V DC Power Adapter |
| Input Voltage | Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 HzHub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A |
| Output Voltage | Hub Adapter Output: 9.0 V, 0.85 A Doorbell Battery Pack Adapter Output: 5.0 V, 1.0 A
Hub Adapter Output: 9.0 V, 0.85 A |
| DC Power Connector Size | |
|
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP64 |
| System Requirements | Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |
| Mounting Options | Stick to a WallMount to a Wall |
| Operating Temperature | -20℃~45℃ |
| Storage Temperature | -20℃~45℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 5%~90% RH, Non-condensing |
| Dimensions | Doorbell Dimensions: 5.7 × 0.21 × 1.3 in (146 × 54.5 × 35.5 mm)
Hub Dimensions: 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm) |

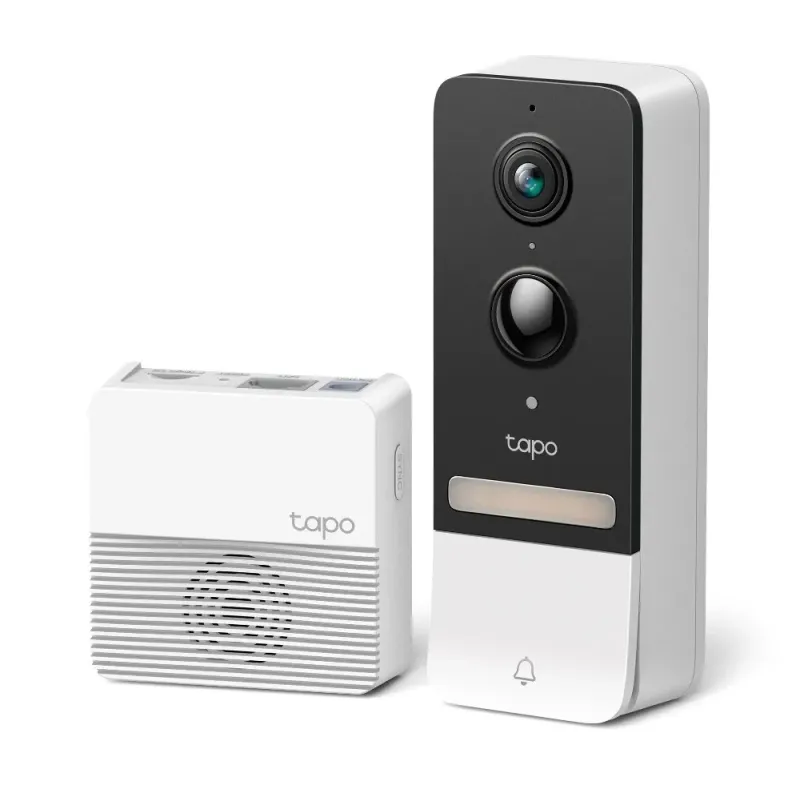

| Package Contents | Tapo Video Doorbell × 1
Tapo H200 Hub × 1
Tapo A100 Battery × 1
DC Power Adapter × 1
USB Adapter × 1
USB Adapter Cable × 1
RJ45 Ethernet Cable × 1
Inclined Mounting Templates × 1
Mounting Templates × 2
Mounting Brackets × 115°

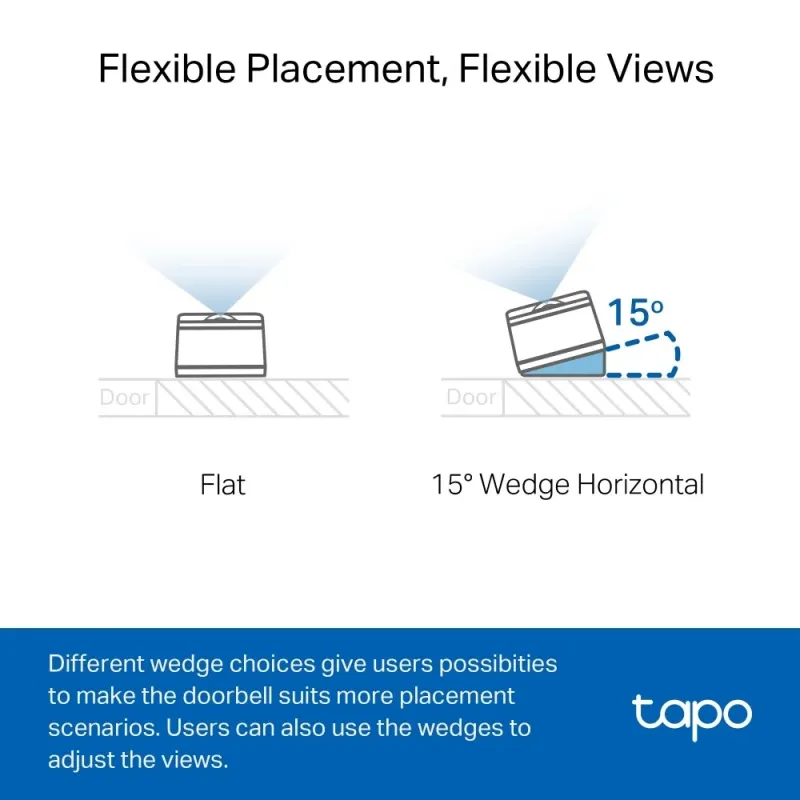

Mounting Wedge × 1
Doorbell Detaching Pin × 1
Screws and Anchors × 2
Quick Start Guide |
| Certifications | CE, RoHS, RCM,R-NZ,FCC, EAC, Triman, UKCA |
รับประกัน | 2 ปี |
| |
