TP-Link TD-W9980 Product Specification
|
|
Overview
|
TP-Link TD-W9980 Dual-Band VDSL2/ ADSL Modem Router กระจายสัญญาณ 2 ย่านความถี่ 2.4 และ 5GHz ความเร็วสูงสุด 300Mbps 4 Port Lan ความเร็ว Gigabit, 1 Port VDSL/ADSL, 2 Port USB รองรับ Print Server, NAS Storage, Media Server
|
|
|
รองรับ Internet ทั้งแบบ VDSL และ ADSL
|
|
IEEE Standards
|
IEEE 802.3, 802.3u, 802.3ab
|
|
VDSL2 Standards
|
ITU-T G.993.2
ITU-T G.998.4 (G.INP)
|
|
ADSL Standards
|
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.994.1 (G.hs)
ITU-T G.995.1
|
|
ADSL2 Standards
|
ITU-T G.992.3 (G.dmt.bis)
|
|
ADSL2+ Standards
|
ITU-T G.992.5
|
|
Wireless Standards
|
IEEE 802.11a, 802.11b, 802.11g, 802.11n รองรับความเร็วสูงสุด 300Mbps
|
|
Frequency
|
2.4GHz และ 5GHz
|
|
Transmit Power
|
< 20dBm (EIRP)
|
|
Wireless Security
|
Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
Wireless MAC Filtering
|
|
เสาอากาศ
|
เสากระจายสัญญาณรอบทิศทาง
5GHz: 3 ต้น Gain 5dBi หัวต่อแบบ RP-SMA ปรับเปลี่ยนได้
2.4GHz: 2 ต้น Gain 3.5dBi แบบภายใน ถอดเปลี่ยนไม่ได้
|
|
Quality of Service
|
WMM, Bandwidth Control (IP QoS)
|
|
Security
|
NAT Firewall,
SPI Firewall,
MAC / IP / URL Filtering
|
|
IPv6
|
IPv6 and IPv4 dual stack
Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
|
|
Management
|
Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP V1/V2C,
Web Based Firmware Upgrade,
CWMP(TR-069),
Diagnostic Tools
|
|
Port Forwarding
|
Virtual server, Port Triggering, UPnP, DMZ, Manage Control
|
|
VPN Pass-Through
|
PPTP, L2TP, IPSec Pass-through
|
|
ATM/PPP Protocols
|
ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC - Up to 8 PVCs
|
|
Advanced Features
|
Ethernet WAN (EWAN)
Guest Network, Wireless Schedule
Parent Control
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Grouping
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS,
IGMP snooping V1/2
IGMP Multicast,
UPnP
|
|
USB Sharing
|
Storage Sharing
FTP Server
Media Server
Print Server
|
|
IGMP
|
IGMP snooping V1/V2/V3
IGMP Multicast
|
|
IPSec VPN
|
10 IPSec VPN Tunnels
LAN-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
|
|
Environment
|
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
|

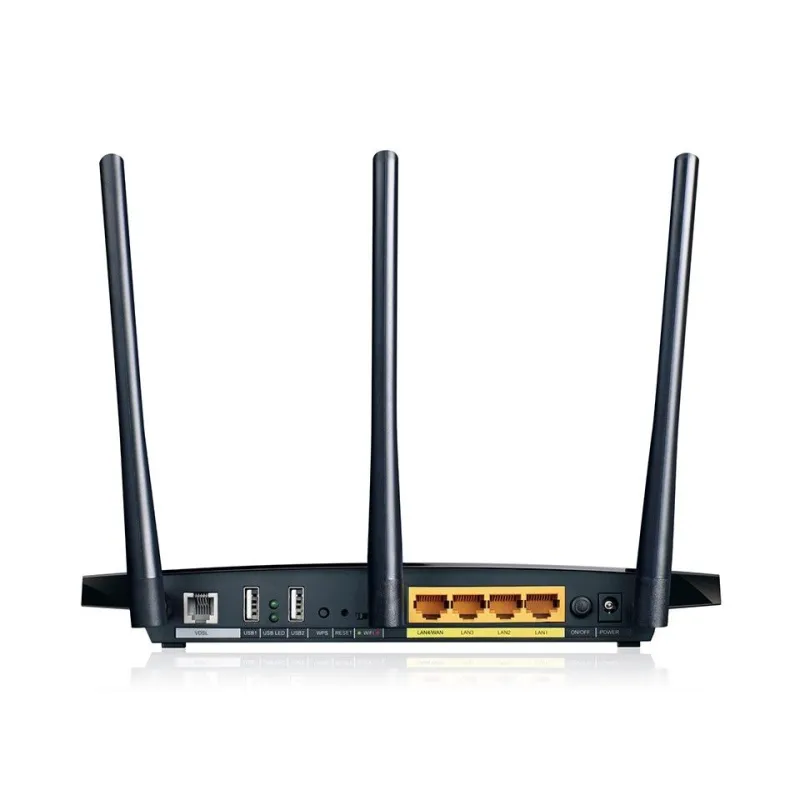

Interfaces
|
4 Port ความเร็ว Gigabit 10/100/1000Mbps RJ45 Ports
1 RJ11 Port
2 USB 2.0 Port
|
|
Button
|
1 Power On/Off Button
1 WPS/RESET Button
1 Wi-Fi On/Off Switch
|
|
W x H x D
|
243 x 160 x 32.5mm
|
|
Weight
|
-
|
|
Power
|
12VDC / 1.5A
|
|
สินค้ารับประกัน Life Time
|
