TP-Link TL-FC311A/B-2(UN) Datasheet
TP-Link TL-FC311A/B-2(UN) Installation Guide

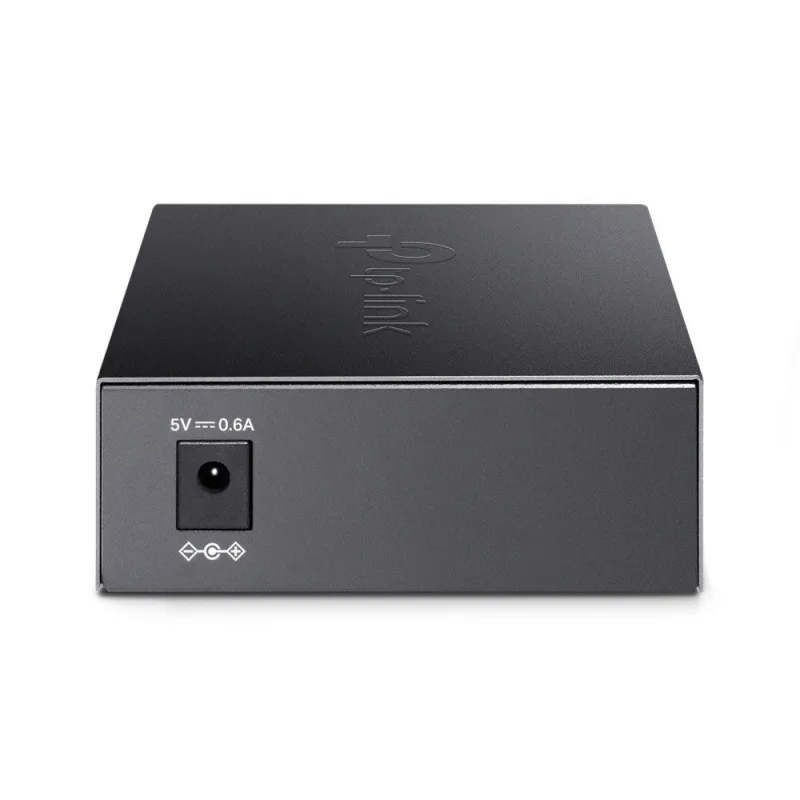

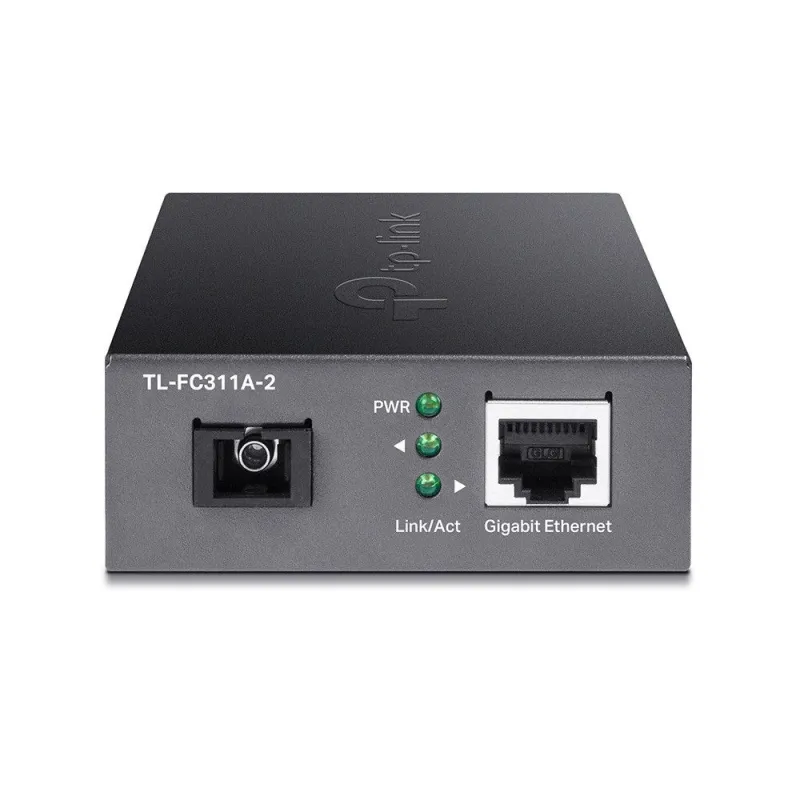

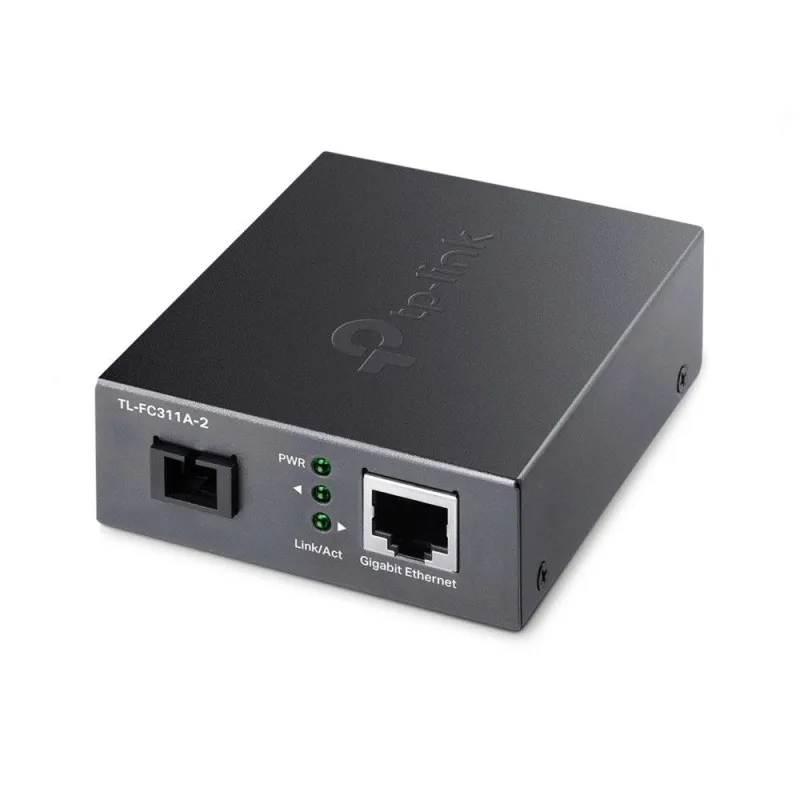

TP-Link TL-FC311A-2
Gigabit WDM Media Converter
- 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 2 km
|
Product Specification
|
|
Overview
|
TP-Link TL-FC311A-2 Gigabit WDM Media Converter WDM Bi-Directional, ความเร็ว Gigabit สาย Single Mode หัวต่อ SC ระยะ 2Km ต้องใช้คู่กับ TL-FC311B-2
|
| NETWORK |
| Standards and Protocols |
IEEE 802.3i, 802.3u, 802.3ab, 802.3z |
| ENVIRONMENT |
| Operating Temperature |
0˚C to 50˚C (32˚F to 122˚F) |
| Storage Temperature |
-40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity |
10% to 90% RH non-condensing |
| Storage Humidity |
5% to 90% RH non-condensing |
| HARDWARE FEATURES |
| Interface |
• 1× Gigabit SC Fiber Port
• 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media |
• Single-mode Fiber
• UTP category 5, 5e cable (maximum 100m) |
| Power Supply |
External Power Adapter: 5 V/0.6 A |
| LED |
PWR, Link/Act |
| Dimensions ( W x D x H ) |
3.7 × 2.9 × 1.1 in
(94.5×73.0×27.0 mm) |
| Wave Lengtd |
1550 nm TX, 1310 nm RX
|
| MEDIA CONVERTER & MODULE |
| Fiber Type |
9/125 μm single-mode fiber (2 km max.) |
|
รับประกัน
|
1 ปี
|
