Product Specification
|
|
Overview
|

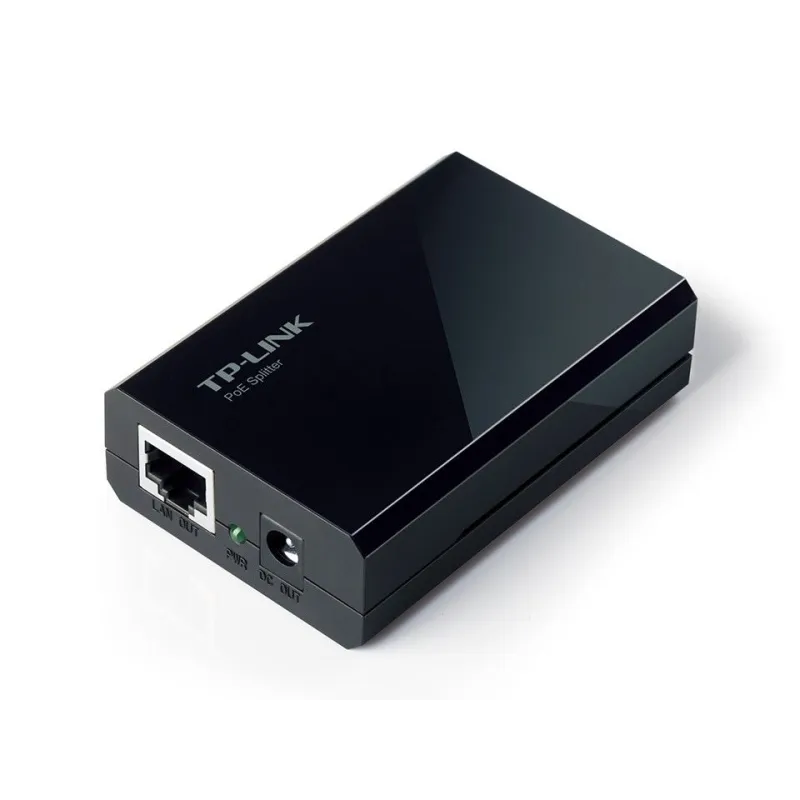

TP-Link TL-POE10R PoE Splitter Adapter แปลง ไฟ POE มาตรฐาน 802.3af เป็น 12VDC 1A, 9VDC 1A, 5VDC 2A สำหรับอุปกรณ์ Network ที่ไม่รองรับ POE ได้ความยาวสาย Lan สูงสุดถึง 100 เมตร
|
|
HARDWARE FEATURES
|
|
Interface
|
2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 POWER OUTPUT PORT
|
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
|
|
Power Supply
|
12VDC 1A, 9VDC 1A, 5VDC 2A
|
|
Basic Function
|
Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters

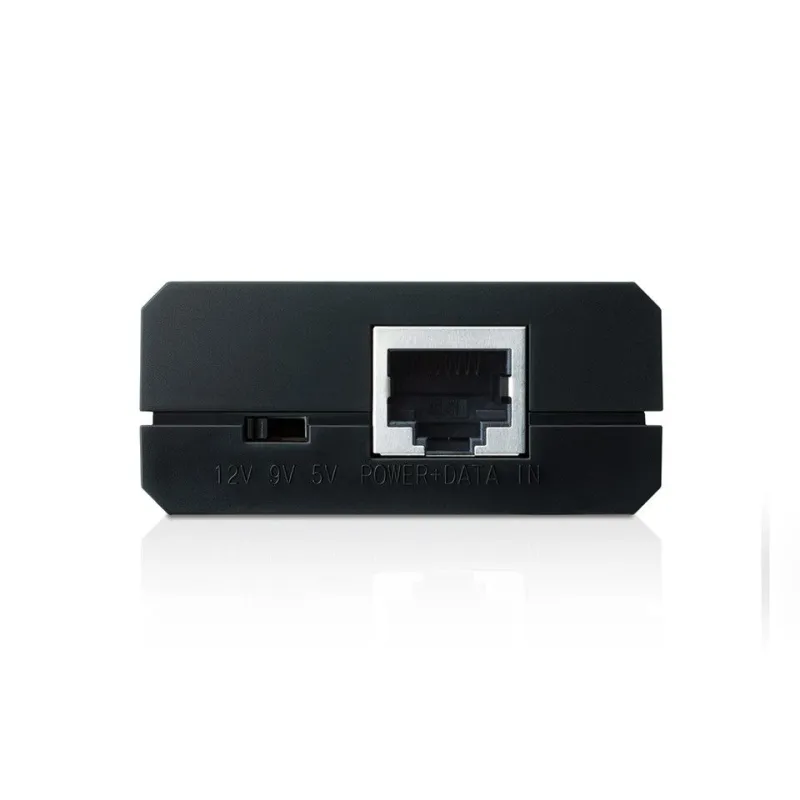

Optional 12VDC, 9VDC or 5VDC Power Output
|
|
LED Indicator
|
PWR
|
|
Dimensions ( W x D x H )
|
3.2*2.1*0.9 in.(80.8*54*24 mm)
|
|
SOFTWARE FEATURES
|
|
Basic Function
|
Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Supply
|
|
OTHERS
|
|
Certification
|
FCC, CE, RoHS
|
|
Package Contents
|
PoE Splitter TL-POE10R
Power Cord
RJ45 Cable
Installation Guide
|
|
System Requirements
|
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
|
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
|
รับประกัน
|
Limited Lifetime
|
|
|
|
