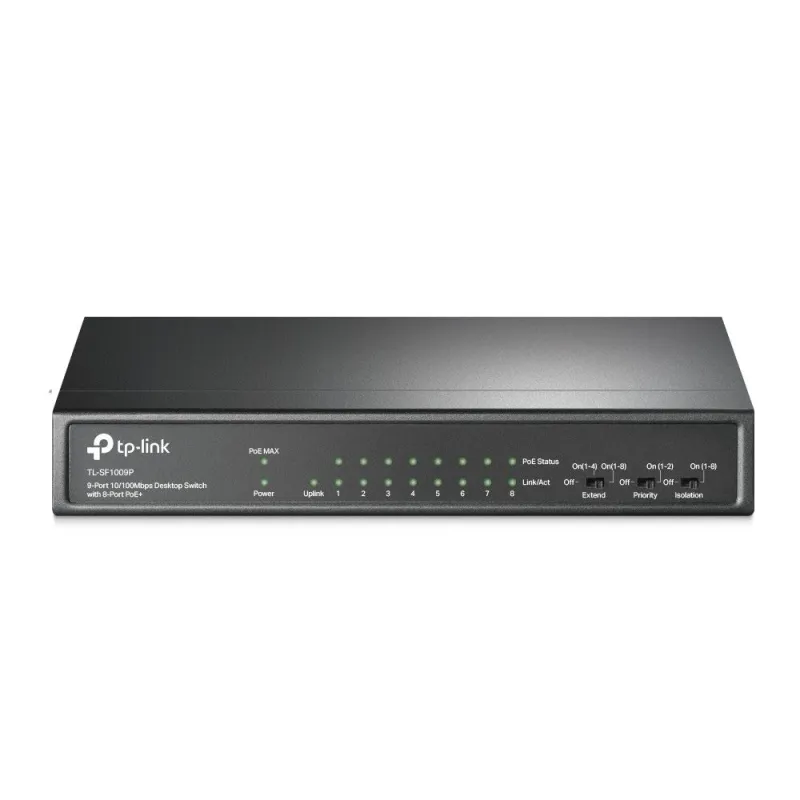

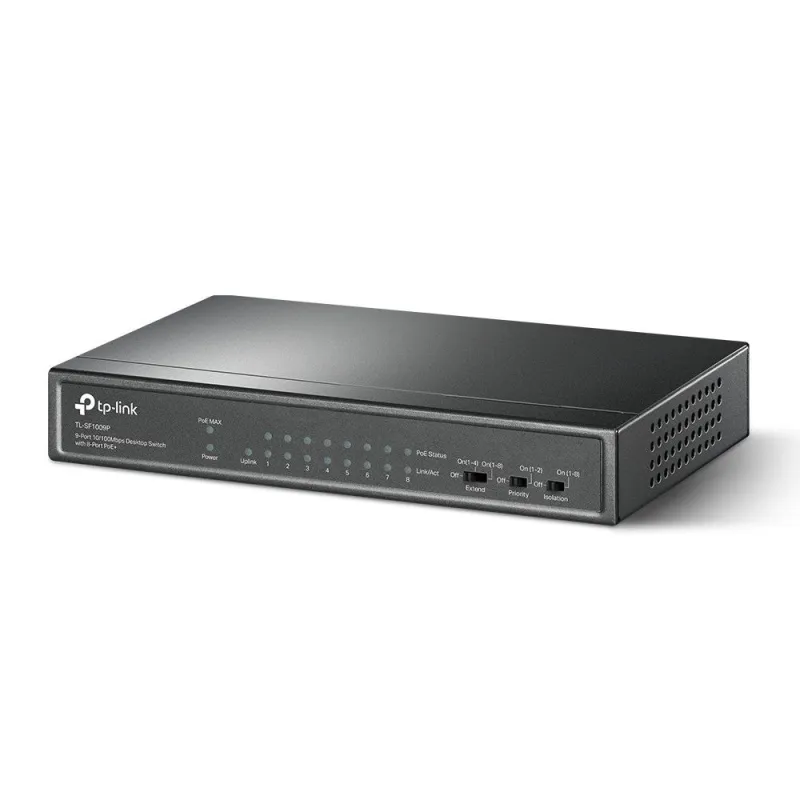

    TP-LINK TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

    TP-Link

    TP-LINK TL-SF1009P POE Switch 9 Port 10/100Mbps จ่ายไฟ POE มาตรฐาน 802.3at 8 Port รวม 65W รองรับ Mode Extend ใช้ร่วมกับสาย Lan ความยาว 250 เมตร

    ฿1,390.00
    ยังไม่ได้รวมภาษี
    จำนวน

    รายละเอียด

    TP-Link TL-SF1009P(UN) Datasheet

    TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

    • 9 Port ความเร็ว 10/100 Mbps RJ45 ports
    • 8 Port PoE+ ports transfer data and power on individual cables
    • Works with IEEE 802.3af/at compliant PDs

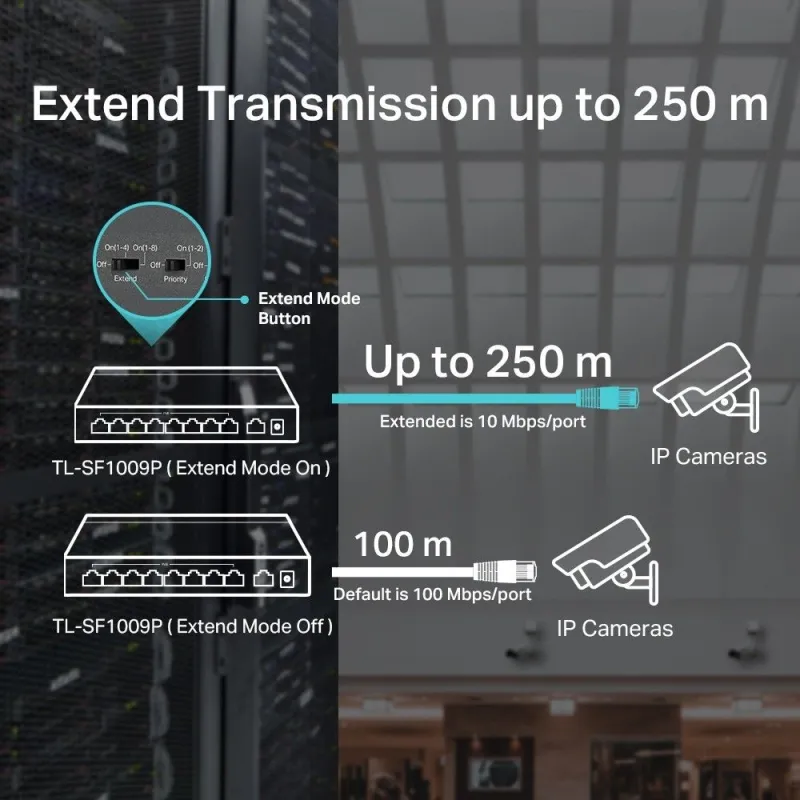

    • Up to 250 m data and power transmitting range under Extend Mode**

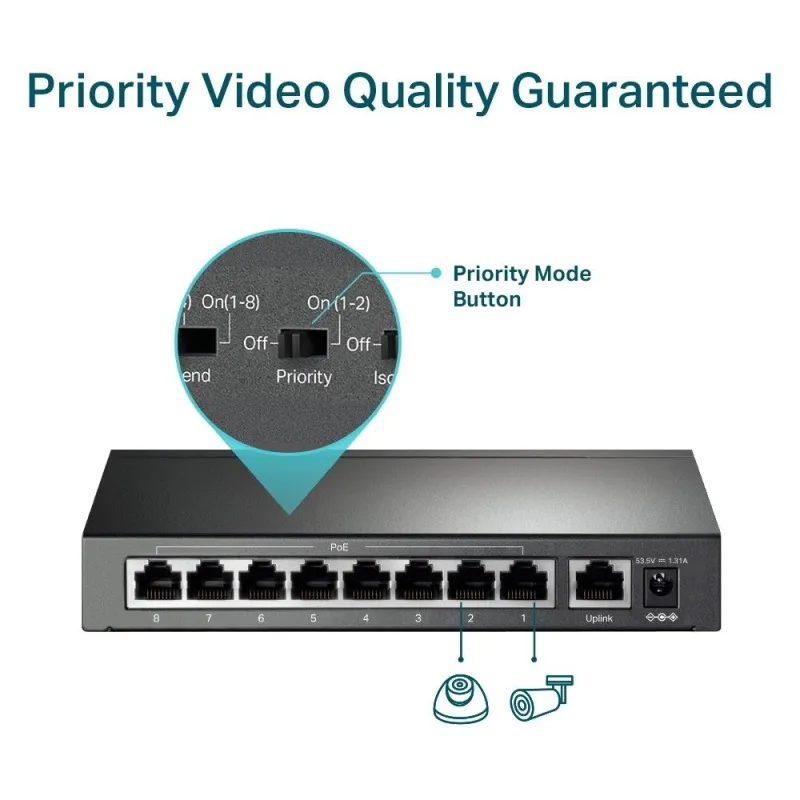

    • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
    • Supports PoE Power up to 30 W for each PoE port

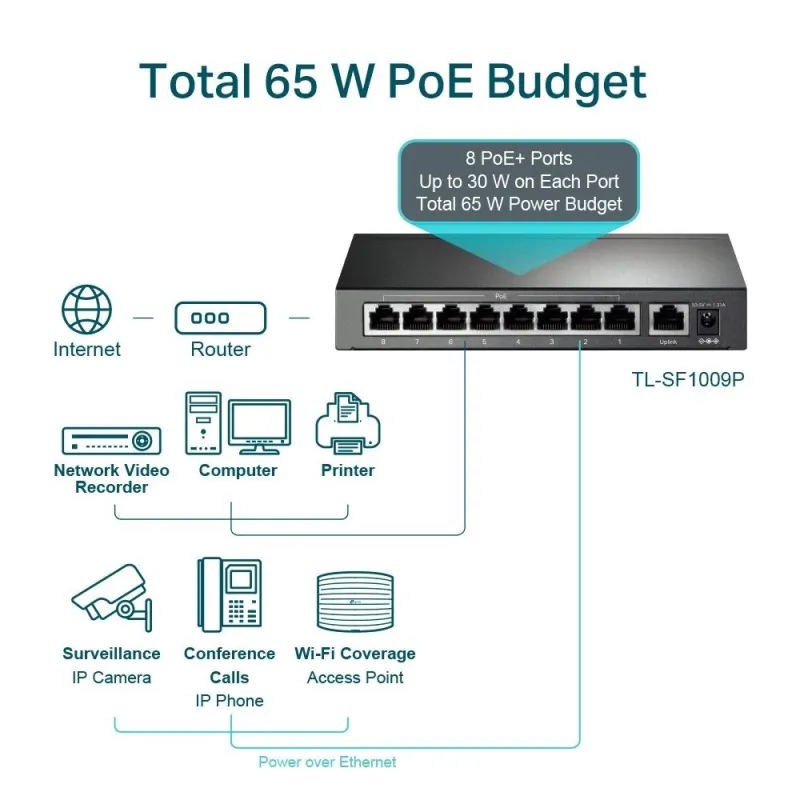

    • Supports PoE Power up to 65 W for 8 PoE ports*

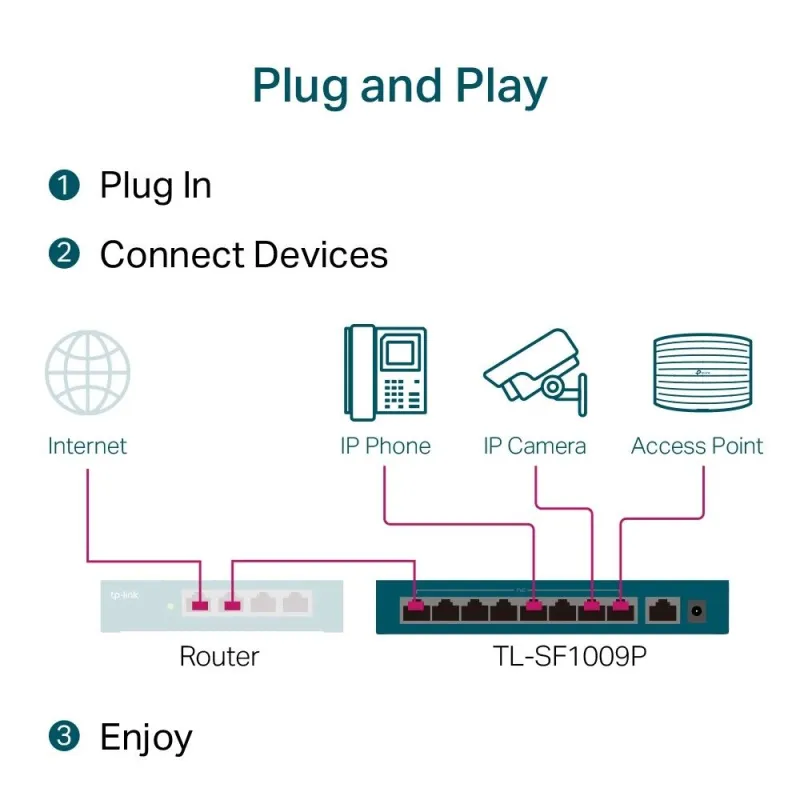

    • Plug and play with no configuration required



    Overview

    TP-LINK TL-SF1009P POE Switch 9 Port ความเร็ว 10/100Mbps จ่ายไฟ POE มาตรฐาน 802.3at 8 Port รวม 65W

    รองรับ Mode Extended ใช้ร่วมกับสาย Lan ความยาว 250 เมตร (ความเร็ว 10Mbps)

    HARDWARE FEATURES

    Interface

    9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
    AUTO Negotiation
    AUTO MDI/MDIX

    Network Media

    10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)

    Fan Quantity

    Fanless

    Physical Security Lock

    Yes

    External Power Supply

    External Power Adapter (Output: 53.5VDC / 1.31A)

    Packet Forwarding Rate

    1.3392 Mpps

    PoE Ports (RJ45)

    Standard: 802.3 af/at compliant
    PoE Ports: Ports 1–8
    Power Supply: 65 W

    Backbound Bandwidth

    1.8 Gbps

    Mac Address Table

    2K

    Jumbo Frame

    2 KB

    Switching Capacity

    1.8 Gbps

    Dimensions ( W x D x H )

    6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

    Max Power Consumption

    3.6 (220/50 Hz. no PD connected)
    77.08 (220/50 Hz. with 65 W PD connected)

    Max Heat Dissipation

    12.28 BTU/h (no PD connected)
    262.84 BTU/h (with 65 W PD connected)

    SOFTWARE FEATURES

    Transmission Method

    Store-And-Forward

    Advanced Functions

    Compatible With IEEE 802.3af/at Compliant PDs
    Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
    Priority Mode Button (Ports 1–2)
    Isolation Mode Button (Ports 1–8)
    Mac Address Auto-Learning and Auto-Aging
    IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

    OTHERS

    Certification

    FCC, CE, RoHS

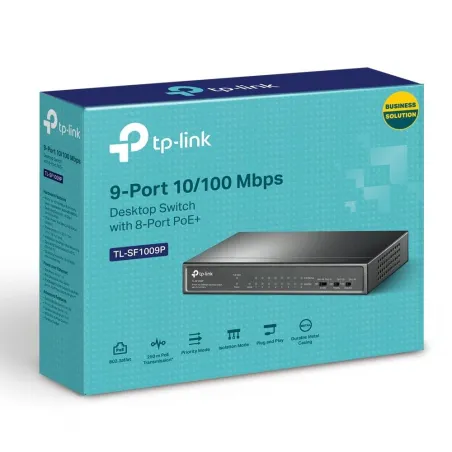

    Package Contents

    TL-SF1009P
    Power Adapter
    Installation Guide

    Environment

    Operating Temperature: 0–40 ℃ (32–104 ℉)
    Storage Temperature: -40–70 ℃ (-40–158 ℉)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing

    รับประกัน

    Limited lifetime

    รายละเอียดสินค้า
    10 รายการ

    Data sheet

    ประเภท Switch
    UnManaged
    ความเร็ว Port Lan
    100Mbps
    จำนวน Port Lan
    8 Port
    มาตรฐานจ่ายไฟ POE
    802.3af/at (30W)
    จำนวน Port POE
    8 Port
    รองรับสาย Lan 250 เมตร
    Yes
