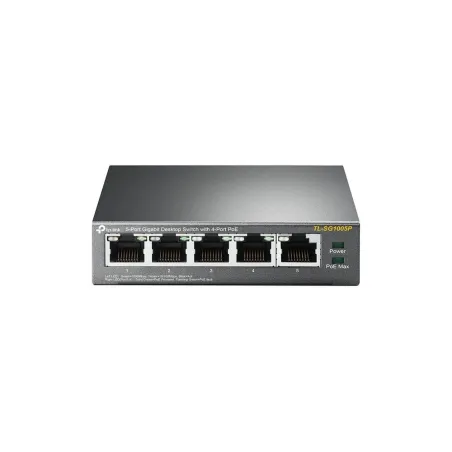

TP-LINK TL-SG1005P 5-Port Gigabit Desktop POE Switch, 4-Port PoE 802.3af 56W

5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Fanless

63.31W (max. with 56w PoE device connected)
4.26W (max. no PoE device connected)

External Power Adapter(Output: 48VDC / 1.25A)

Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 56W

10Gbps

2K

3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping

Store-And-Forward

FCC, CE, RoHS

TL-SG1005P, Power Adapter, Installation Guide

4.26 watts (max. no PD connected)
63.31 watts (max. with 56w PD connected)

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing
