TL-SG1016D V7 Datasheet
TL-SG1016D V11

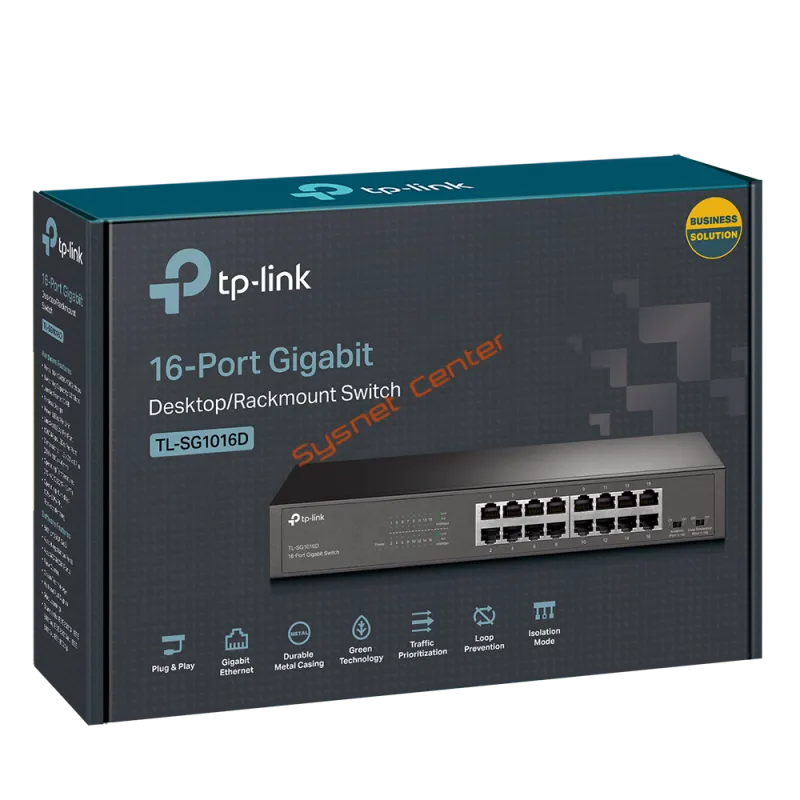

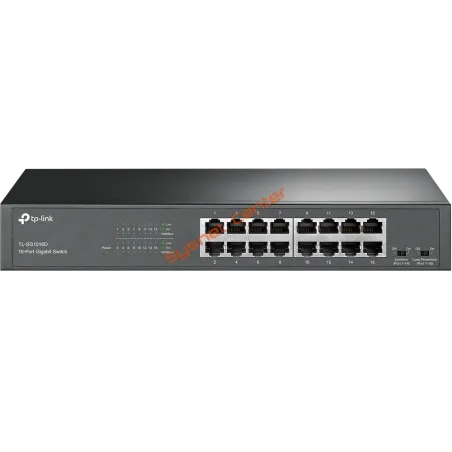

16-Port Gigabit Desktop/Rackmount Switch
- 16 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Plug & play design
Product Specification
|
|
Overview
|
TP-Link TL-SG1016D Gigabit Switch แบบ Desktop/Rackmount ความเร็ว Gigabit เคสเหล็ก ใช้สำหรับเชื่อมต่อกับระบบเครือข่ายภายในสำนักงานขนาดกลาง
|
HARDWARE FEATURES
|
|
Standards and Protocols
|
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
|
|
Interface
|
16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
|
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
|
|
Fan Quantity
|
Fanless
|
|
Physical Security Lock
|
No
|
|
Power Supply
|
100-240VAC, 50/60Hz
|
|
Dimensions ( W x D x H )
|
11.6*7.1*1.7 in. (294*180*44 mm)
|
|
Max Power Consumption
|
9.95W(220V/50Hz)
|
|
Max Heat Dissipation
|
33.93BTU/h
|
PERFORMANCE
|
|
Switching Capacity
|
32Gbps
|
|
Packet Forwarding Rate
|
23.8Mpps
|
|
MAC Address Table
|
8K
|
|
Advanced Functions
|
Isolation Mode: Ports 1-14
Loop Prevention: Ports 1-16
|
|
Jumbo Frame
|
10KB
|
|
Green Technology
|
Yes
|
|
Transfer Method
|
Store-and-Forward
|
OTHERS
|
|
Certification
|
FCC, CE, RoHs
|
|
Package Contents
|
16-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
|
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
|
|
Warranty
|
Lifetime
|
รายละเอียดสินค้า
0
20 รายการ
ข้อมูลสินค้า
- ประเภท Switch
- UnManaged
- ความเร็ว Port Lan
- 1Gbps (Gigabit)
- จำนวน Port Lan
- 16 Port
