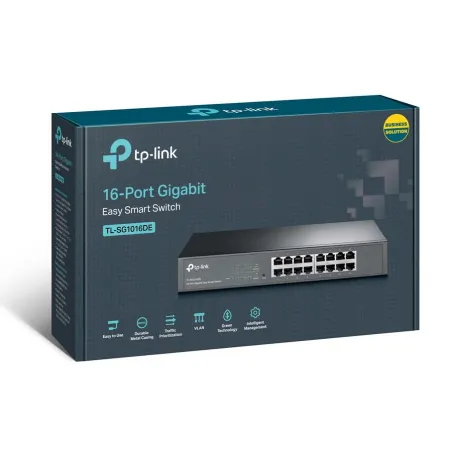

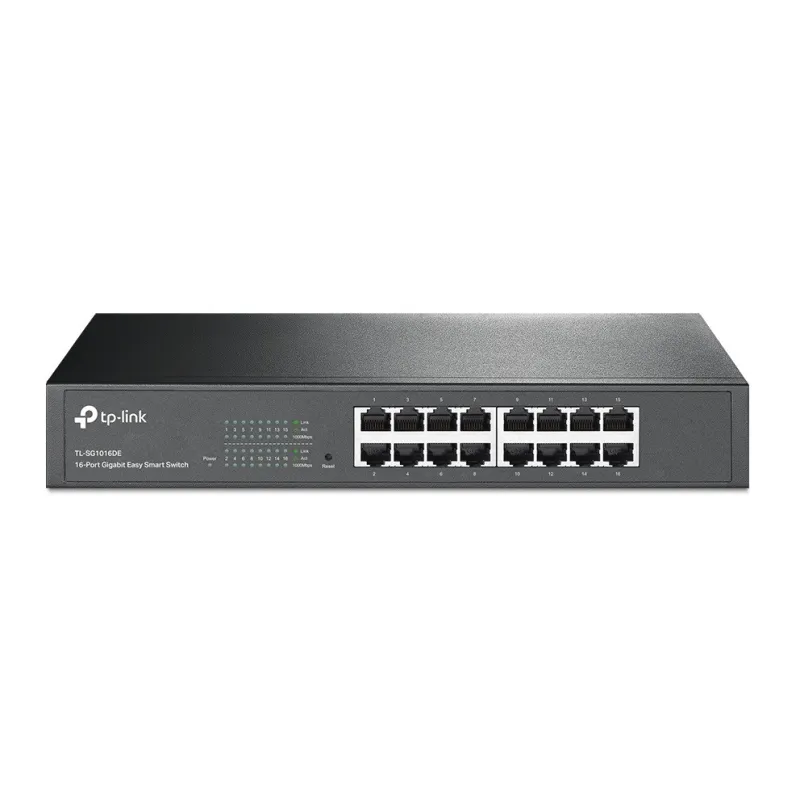

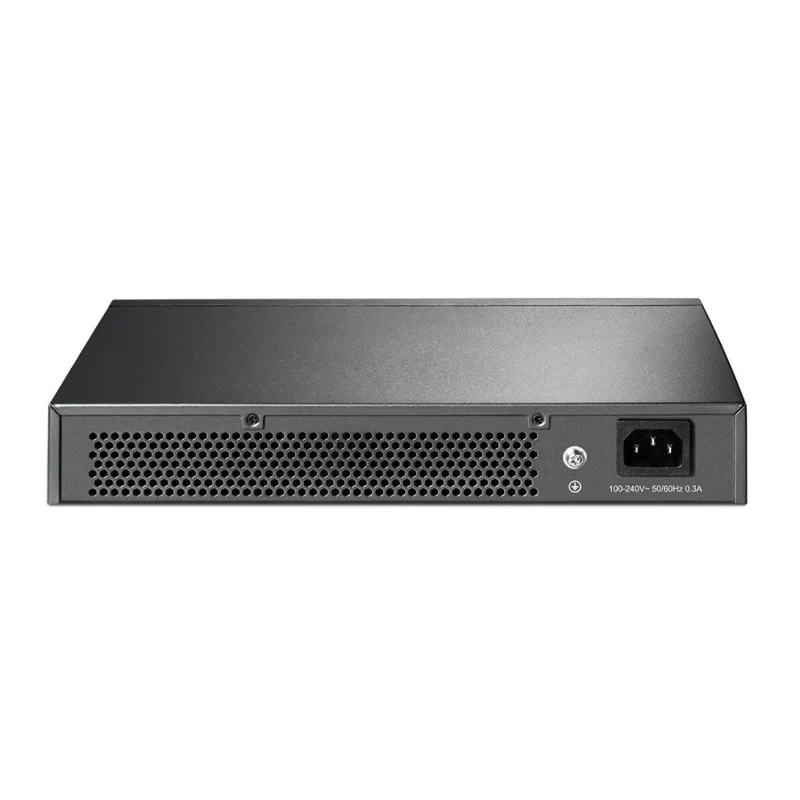

TL-SG1016DE
TP-Link TL-SG1016DE Easy Smart Gigabit Switch Rackmount 16 Port ความเร็ว Gigabir เคสเหล็ก รองรับการทำ VLAN ,Network Monitoring และ Traffic Prioritization
Support / ติดตั้งด้วยทีมงาน Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
Click ต้องการใบเสนอราคา
TP-LINK TL-SG1016DE Datasheet
TP-LINK TL-SG1016DE Easy Smart Configulation Utility User Guide
TP-LINK TL-SG1016DE Install Guide.
Product Specification | |
Overview | TP-Link TL-SG1016DE Easy Smart Gigabit Switch Rackmount 16 Port ความเร็ว Gigabir เคสเหล็ก รองรับการทำ VLAN ,Network Monitoring และ Traffic Prioritization |
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
Interface | 16 10/100/1000Mbps RJ45 Ports |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
Fan Quantity | Fanless |
Physical Security Lock | No |
Power Supply | 100-240VAC, 50/60Hz |
Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | 10.22W (220V/50Hz) |
Max Heat Dissipation | 34.52 BTU/h |
PERFORMANCE | |
Switching Capacity | 32Gbps |
Packet Forwarding Rate | 23.8Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mbit |
Jumbo Frame | 10KB |
SOFTWARE FEATURES | |
Quality of Service | Support Port-based/802.1p/DSCP priority |
L2 Features | IGMP Snooping V1/V2/V3 |
VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) |
Transmission Method | Store-And-Forward |
OTHERS | |
Certification | FCC, CE, RoHS |
Package Contents | TL-SG1016DE |
System Requirements | Microsoft® Windows® for running Utility |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
Warranty | Lifetime |
