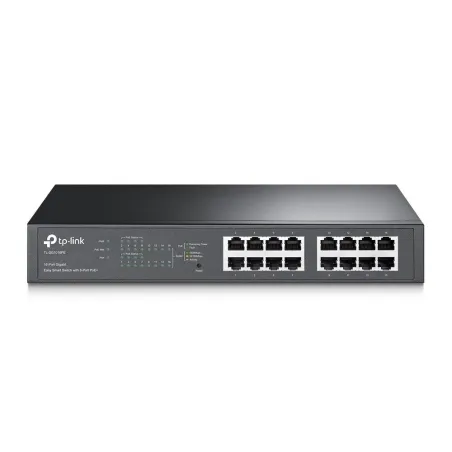

TP-LINK TL-SG1016PE
16-Port Gigabit Easy Smart PoE Switch, 8-Port PoE+, จ่ายไฟ POE 802.3af/at จำนวน 16 Port สูงสุด 110W
16 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
With a total PoE power budget of 110W, up to 30W per port

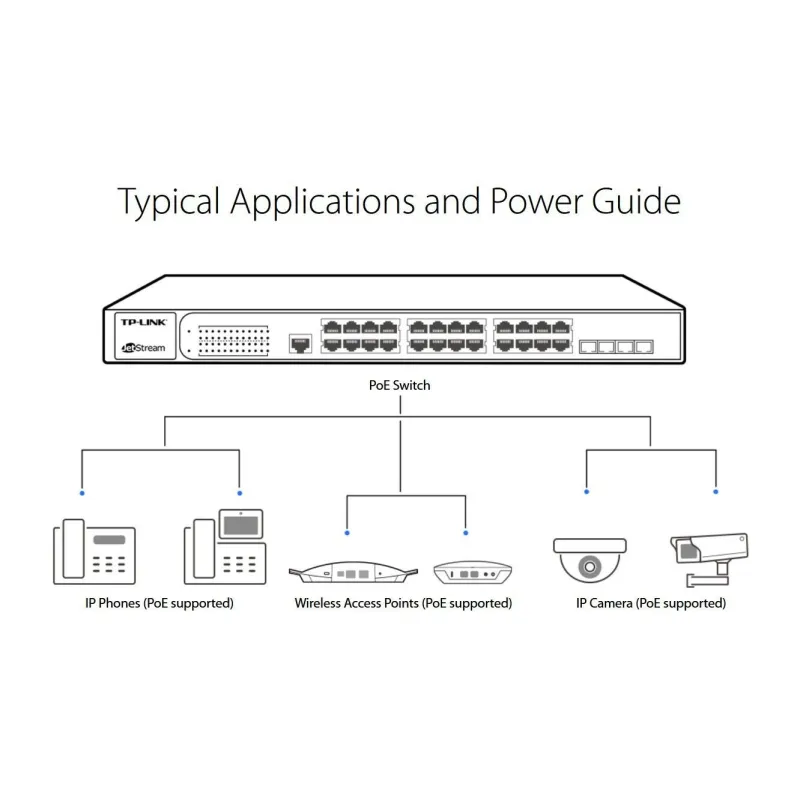

Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration
Overview | TP-LINK TL-SG1016PE 16-Port Gigabit Easy Smart PoE Switch 8-Port PoE+, จ่ายไฟ POE 802.3af/at จำนวน 8 Port สูงสุด 110W รองรับ 802.1Q VLAN, IGMP Snooping, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
|---|
HARDWARE FEATURES |
|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
|---|
Interface | 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
|
|---|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
|
|---|
Fan Quantity | 1 |
|---|
Physical Security Lock | Yes |
|---|
PoE Ports (RJ45) | Standard: 802.3 at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 110W |
|---|
Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
|---|
Mounting | Rack Mountable |
|---|
Max Power Consumption | 14.72W (110V/60Hz with no PD connected)
131.42W (110V/60Hz with 110W PD connected) |
|---|
Max Heat Dissipation | 50.22 BTU/h (with no PD connected)
448.41 BTU/h (with 110W PD connected) |
|---|
PERFORMANCE |
|---|
Switching Capacity | 32Gbps |
|---|
Packet Forwarding Rate | 23.8Mbps |
|---|
MAC Address Table | 8K |
|---|
Packet Buffer Memory | 4.1Mbit |
|---|
Jumbo Frame | 9KB |
|---|
SOFTWARE FEATURES |
|---|
Quality of Service | Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control |
|---|
L2 Features | IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention |
|---|
VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN |
|---|
Management | Web-based GUI
Easy Smart Configuration Utility |
|---|
Transmission Method | Store-And-Forward |
|---|
OTHERS |
|---|
Certification | FCC, CE, RoHS |
|---|
Package Contents | TL-SG1016PE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet |
|---|
System Requirements | Microsoft® Windows® for running Utility |
|---|
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
สินค้ารับประกัน Limited Life Time
รายละเอียดสินค้า
10 รายการ
ข้อมูลสินค้า
- Switches Layer
- L2 Managed
- จำนวน Port Lan
- 16 Port
- ความเร็ว Port Lan
- 1Gbps (Gigabit)
- จำนวน Port จ่ายไฟ POE
- 8 Port
- มาตรฐานจ่ายไฟ POE
- POE+ 802.3at (30W)
