TL-SG1024 V12 Datasheet

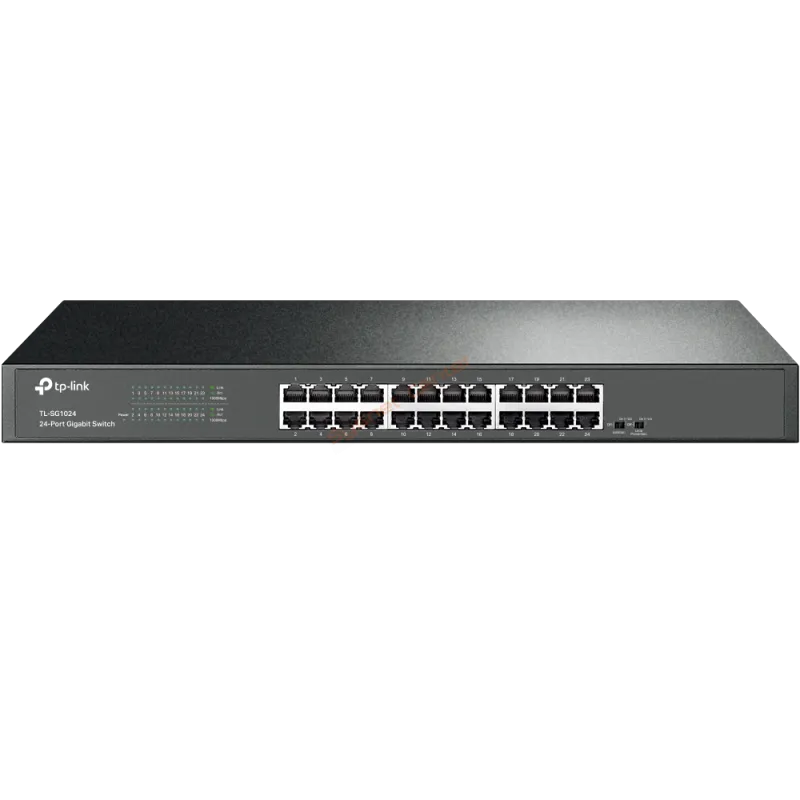

TL-SG1024 V12
24-Port Gigabit Rackmount Switch
- 24 10/100/1000Mbps RJ45 ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
- Plug and Play
- Rack-mountable
Product Specification
|
|
Overview
|
TP-Link TL-SG1024 Unmanaged Gigabit Rackmount Switch 24 Port ความเร็ว 10/100/1000 Mbps ใช้สำหรับเชื่อมต่อกับระบบเครือข่ายภายในสำนักงานที่ต้องการความเร็วสูง สามารถติดตั้งในตู้ Rack 19"ได้
|
HARDWARE FEATURES
|
|
Standards and Protocols
|
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
|
|
Interface
|
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
|
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
|
|
Fan Quantity
|
Fanless
|
|
Physical Security Lock
|
Yes
|
|
Power Supply
|
100-240VAC, 50/60Hz
|
|
Dimensions ( W x D x H )
|
17.3 × 5.5 × 1.7 in (440 × 140 × 44 mm)
|
|
Mounting
|
Rack-Mountable
|
|
Max Power Consumption
|
13.62W
|
|
Max Heat Dissipation
|
46.44BTU/h
|
PERFORMANCE
|
|
Switching Capacity
|
48Gbps
|
|
Packet Forwarding Rate
|
35.7Mpps
|
|
MAC Address Table
|
8K
|
|
Advanced Functions
|
• Isolation Mode: Ports 1-22
• Loop Prevention: Ports 1-24
|
|
Jumbo Frame
|
10KB
|
|
QoS
|
802.1p/DSCP QoS*
*Only for V11 and later version
|
|
Green Technology
|
Yes
|
|
Transfer Method
|
Store-and-Forward
|
OTHERS
|
|
Certification
|
FCC, CE, RoHS
|
|
Package Contents
|
24-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
|
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
|
|
Warranty
|
Lifetime
|
รายละเอียดสินค้า
0
20 รายการ
ข้อมูลสินค้า
- ประเภท Switch
- UnManaged
- ความเร็ว Port Lan
- 1Gbps (Gigabit)
- จำนวน Port Lan
- 24 Port
