TP-LINK TL-SG1024DE User Guide

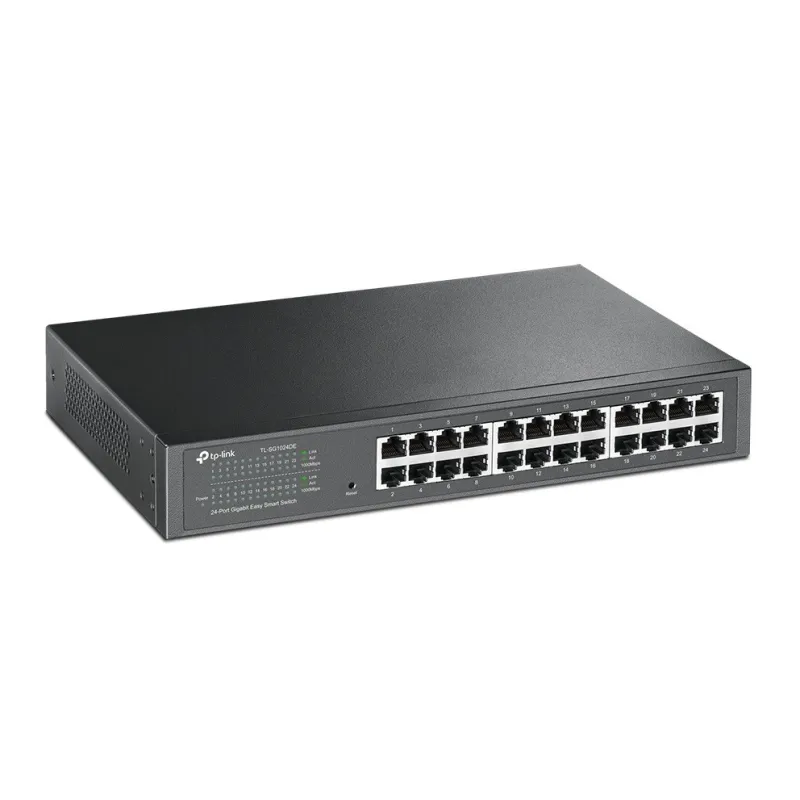

TL-SG1024DE
TP-Link 24-Port Gigabit Easy Smart Switch
- 24 10/100/1000Mbps RJ45 ports
- Provides network monitoring, traffic prioritization and VLAN features
- Innovative energy-efficient technology reduces power output by up to 18%
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
Product Specification |
| Overview | TP-Link TL-SG1024DE Easy Smart Gigabit Switch แบบ Rackmount 24 Port ความเร็ว Gigabir เคสเหล็ก รองรับการทำ VLAN ,Network Monitoring และ Traffic Prioritization |
| HARDWARE FEATURES |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 24 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Maximum: 14.86W (220V/50Hz) |
| Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 15.56W (220V/50Hz) |
| Max Heat Dissipation | 50.06 BTU/h |
| PERFORMANCE |
| Switching Capacity | 48Gbps |
| Packet Forwarding Rate | 35.7Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 512KB |
| Jumbo Frame | 9KB |
| SOFTWARE FEATURES |
| Quality of Service | Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention |
| VLAN | Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
| OTHERS |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG1024DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| Warranty | Lifetime |
รายละเอียดสินค้า
10 รายการ
ข้อมูลสินค้า
- ประเภท Switch
- UnManaged
- ความเร็ว Port Lan
- 1Gbps (Gigabit)
- จำนวน Port Lan
- 24 Port
