รายละเอียด
TL-SG105 Datasheet
TL-SG105

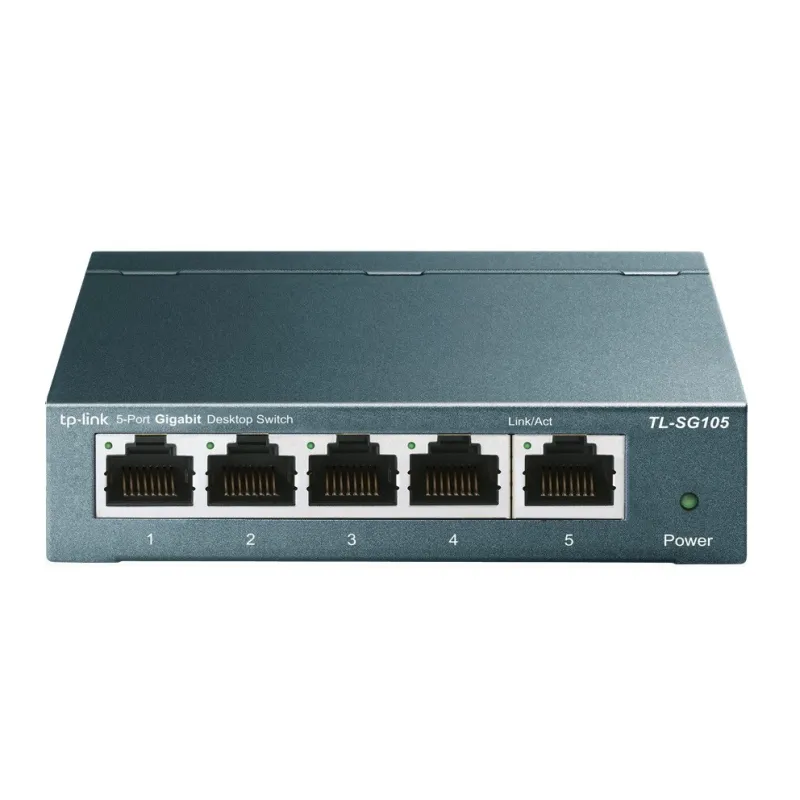

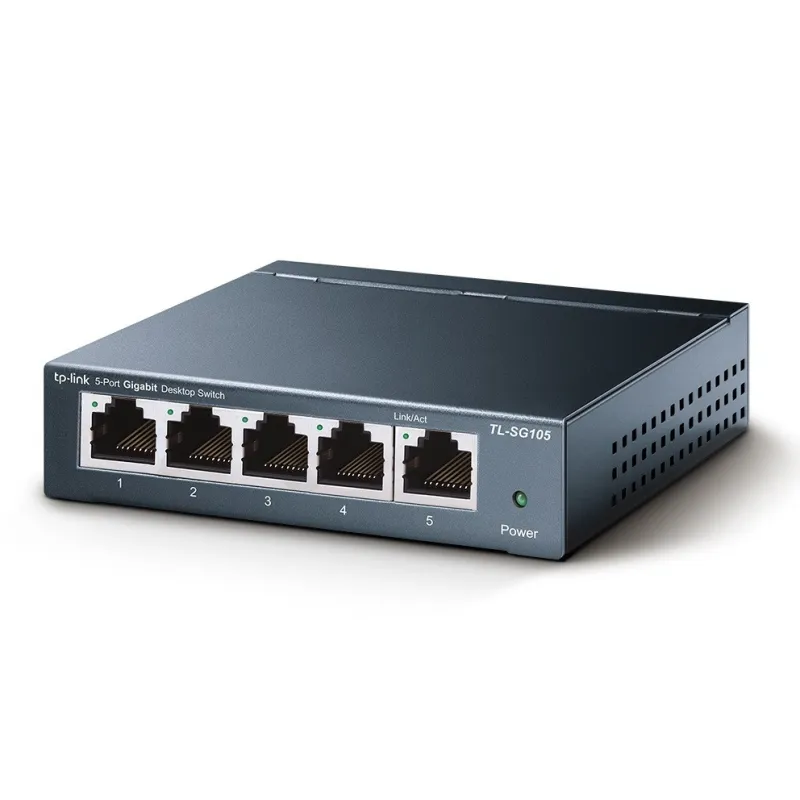

TP-Link 5-Port 10/100/1000Mbps Desktop Switch

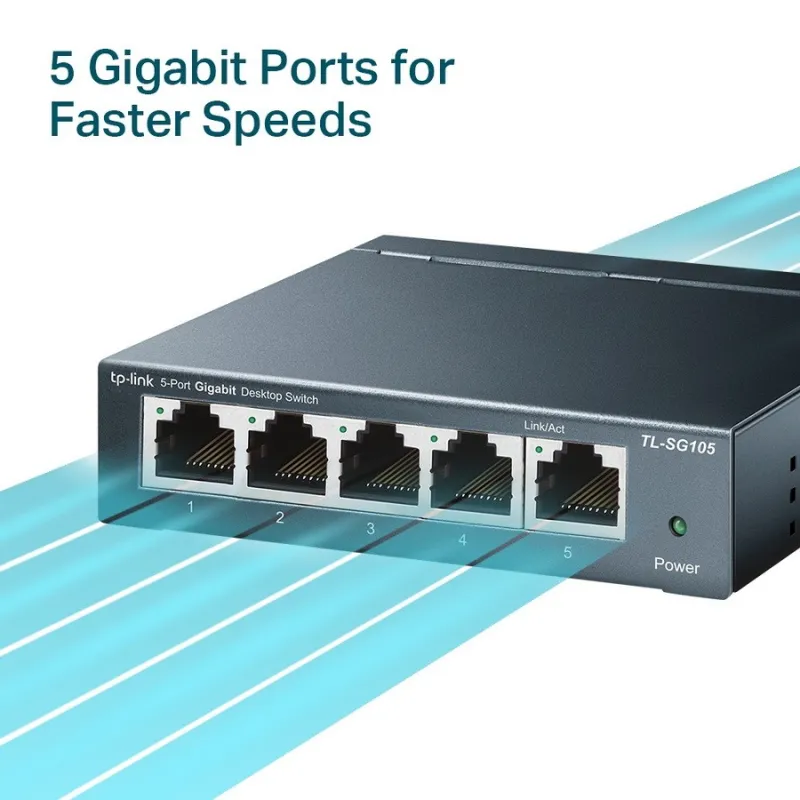

- 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

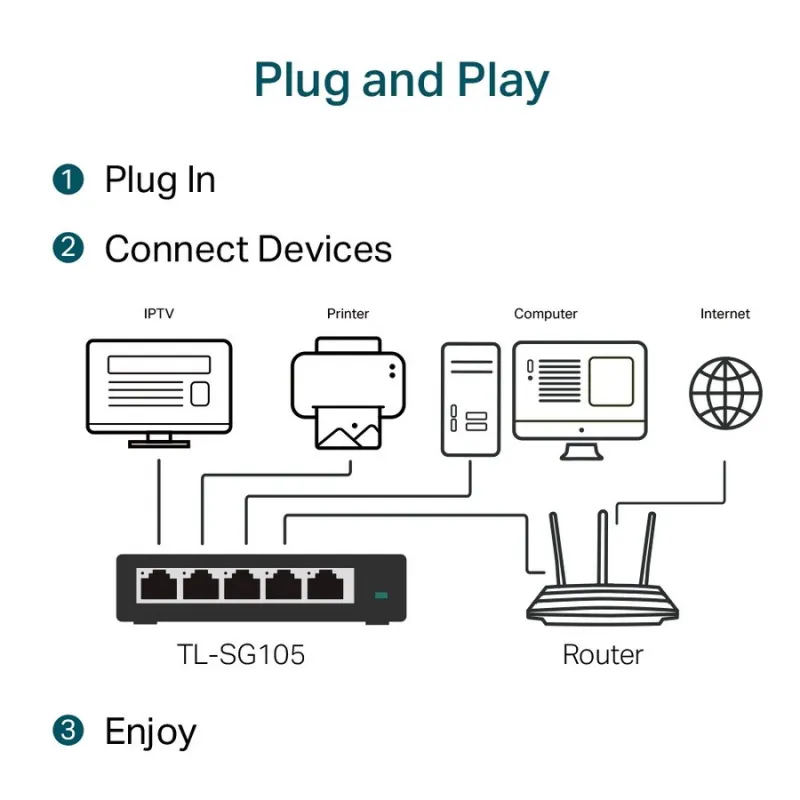

- Plug and play, no configuration needed
- Supports 802.1p/DSCP QoS and IGMP Snooping functions

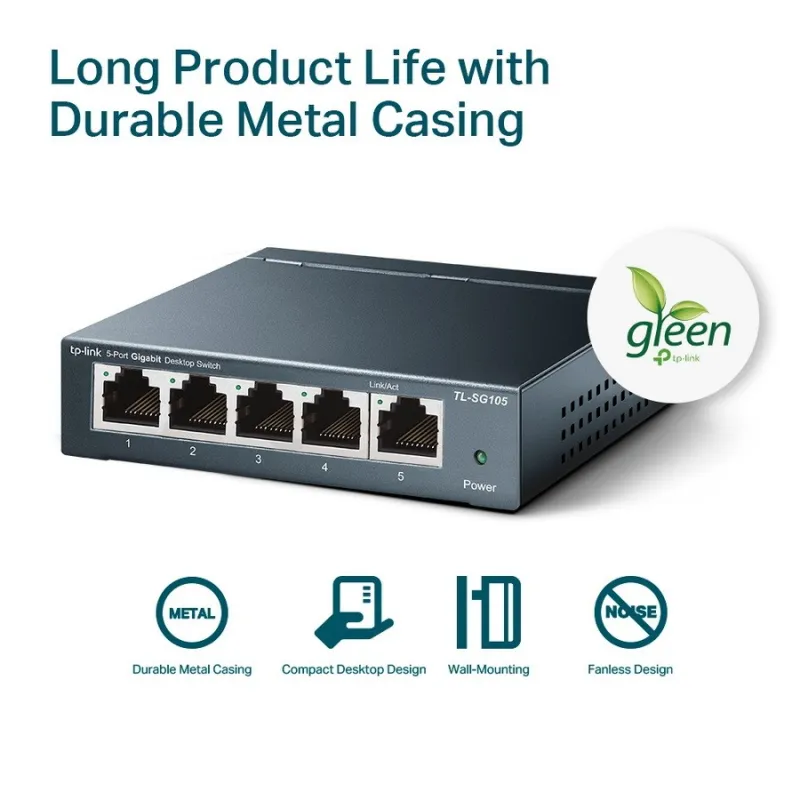

- Durable metal casing, desktop/wall-mounting options, and a fanless design
- IEEE 802.3x flow control provides reliable data transfer
- Green Ethernet technology reduces power consumption
- Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
Product Specification |
Overview | TP-Link TL-SG105 Gigabit Switch แบบ Desktop ขนาด 5 Port ความเร็ว Gigabit เคสเหล็ก ใช้สำหรับเชื่อมต่อกับระบบเครือข่ายภายในบ้าน |
HARDWARE FEATURES |
|---|
Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p |
|---|
Interface | 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
|---|
Fan Quantity | Fanless |
|---|
External Power Supply | External Power Adapter (Output: 5 V DC / 0.6A) |
|---|
LED Indicator | System Power
Link/Act indicators per port built into each RJ-45 port |
|---|
Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm) |
|---|
Max Power Consumption | 3.0 W (220 V/ 50 Hz) |
|---|
Max Heat Dissipation | 10.23 BTU/h |
|---|
PERFORMANCE |
|---|
Packet Forwarding Rate | 7.4 Mpps |
|---|
MAC Address Table | 2K |
|---|
Packet Buffer Memory | 1 Mb |
|---|
Jumbo Frame | 16 KB |
|---|
SOFTWARE FEATURES |
|---|
Advanced Features | Green Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping
Loop Prevention |
|---|
Transfer Method | Store and Forward |
|---|
OTHERS |
|---|
Certification | CE, FCC, RoHS |
|---|
Package Contents | 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide |
|---|
Environment | Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing |
|---|
Warranty | Lifetime |
รายละเอียดสินค้า
50 รายการ
ข้อมูลสินค้า
- Switches Layer
- UnManaged
- จำนวน Port Lan
- 5 Port
- ความเร็ว Port Lan
- 1Gbps (Gigabit)
