TL-SG108 Datasheet
TL-SSG108 V9

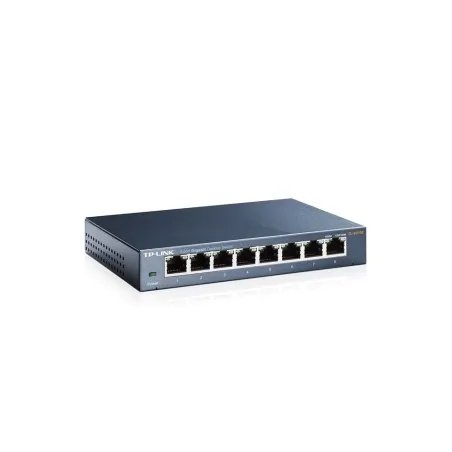

8-Port Gigabit Desktop Switch
- 8× 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, no configuration needed
- Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
Product Specification |
Overview | TP-Link TL-SG108 Gigabit Desktop Switch 8 Port ความเร็ว Gigabit เคสเหล็ก ใช้สำหรับเชื่อมต่อกับระบบเครือข่ายภายในบ้าน สำนักงานขนาดเล็ก |
HARDWARE FEATURES |
|---|
Standards and Protocols | IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p |
|---|
Interface | 8× 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
|---|
Fan Quantity | Fanless |
|---|
External Power Supply | External Power Adapter (Output: 5VDC / 0.6A) |
|---|
LED Indicator | System Power
Link/Act indicators per port built into each RJ-45 port |
|---|
Dimensions ( W x D x H ) | 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm) |
|---|
Max Power Consumption | 3.75 W(220V/50Hz) |
|---|
Max Heat Dissipation | 10.79 BTU/h |
|---|
PERFORMANCE |
|---|
Packet Forwarding Rate | 11.9 Mpps |
|---|
MAC Address Table | 4K |
|---|
Packet Buffer Memory | 1.5 Mb |
|---|
Jumbo Frame | 16 KB |
|---|
SOFTWARE FEATURES |
|---|
Advanced Features | Green Technology
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping
Loop Prevention |
|---|
Transfer Method | Store and Forward |
|---|
OTHERS |
|---|
Certification | CE, FCC ,RoHS |
|---|
Package Contents | 8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide |
|---|
Environment | Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
Warranty | Lifetime |
รายละเอียดสินค้า
20 รายการ
ข้อมูลสินค้า
- Switches Layer
- UnManaged
- จำนวน Port Lan
- 8 Port
- ความเร็ว Port Lan
- 1Gbps (Gigabit)
