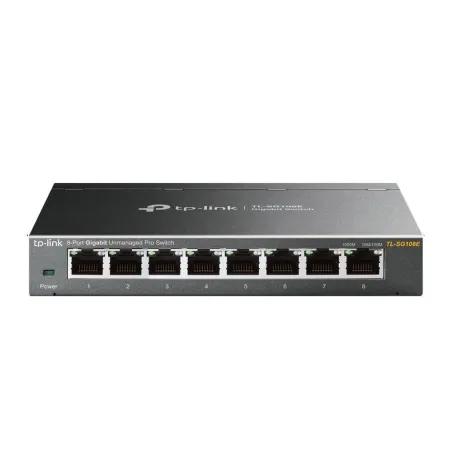

TP-Link TL-SG108E 8-Port Gigabit Smart Switch
- 8 10/100/1000Mbps RJ45 ports
- Plug and play, with no configuration required
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
Overview | TP-Link TL-SG108E 8-Port Gigabit Easy Smart Switch รองรับ 802.1Q VLAN, IGMP Snooping V3, Static Link Aggregation |
|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
|---|
Interface | 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
|---|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m) |
|---|
Fan Quantity | Fanless |
|---|
Power Supply | External Power Adapter(Output: 9VDC/0.6A) |
|---|
Power Consumption | Maximum: 4.48W (220V/50Hz) |
|---|
Dimensions ( W x D x H ) | 6.2*4.0*1.0 in. (158*101*25 mm) |
|---|
Switching Capacity | 16Gbps |
|---|
Packet Forwarding Rate | 11.9Mpps |
|---|
MAC Address Table | 4K |
|---|
Packet Buffer Memory | 1.5Mb |
|---|
Jumbo Frame | 15KB |
|---|
Quality of Service | Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control |
|---|
L2 Features | IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention |
|---|
VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN |
|---|
Transmission Method | Store-And-Forward |
|---|
Certification | FCC, CE, RoHS |
|---|
Package Contents | TL-SG108E
Power Cord
Installation Guide
Rubber Feet |
|---|
System Requirements | Microsoft Windows for running Utility |
|---|
Environment | Operating Temperature: 0~40C (32~104F)
Storage Temperature: -40~70C (-40~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
รับประกัน | Limited lifetime |
รายละเอียดสินค้า
10 รายการ
ข้อมูลสินค้า
- Switches Layer
- L2 Managed
- จำนวน Port Lan
- 8 Port
- ความเร็ว Port Lan
- 1Gbps (Gigabit)
