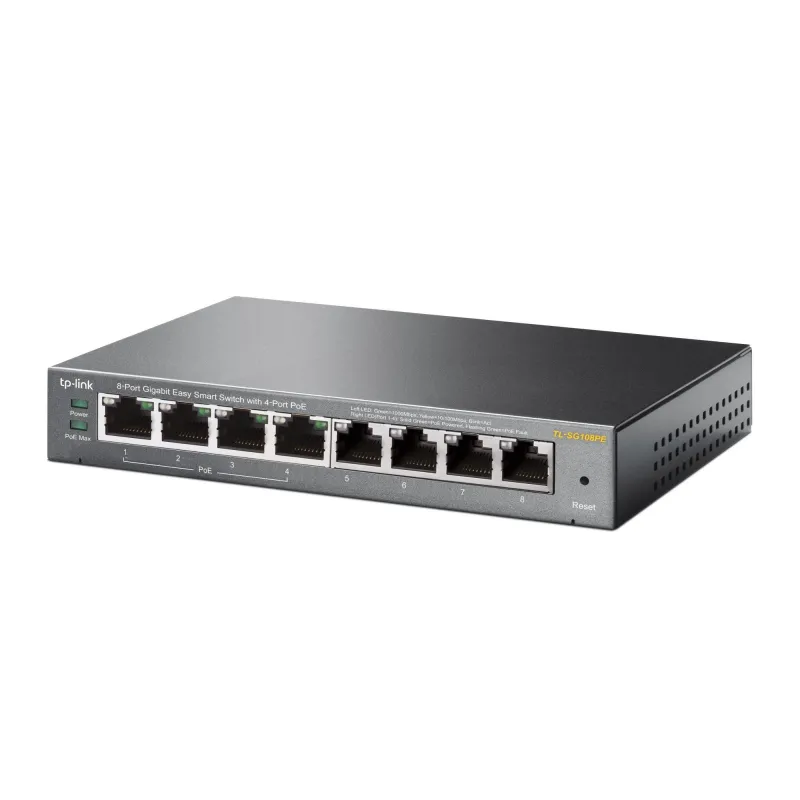

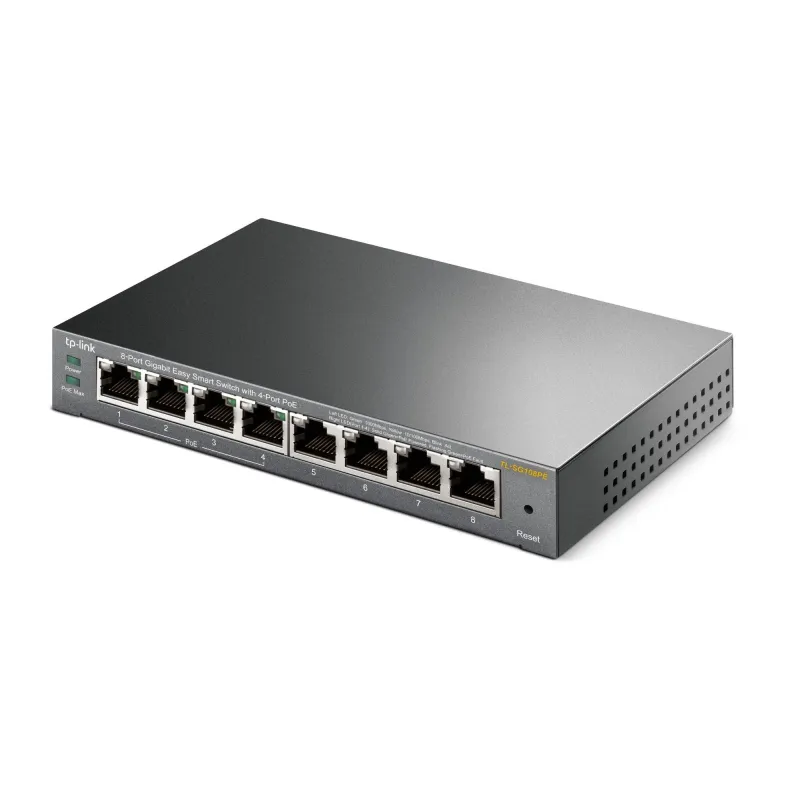

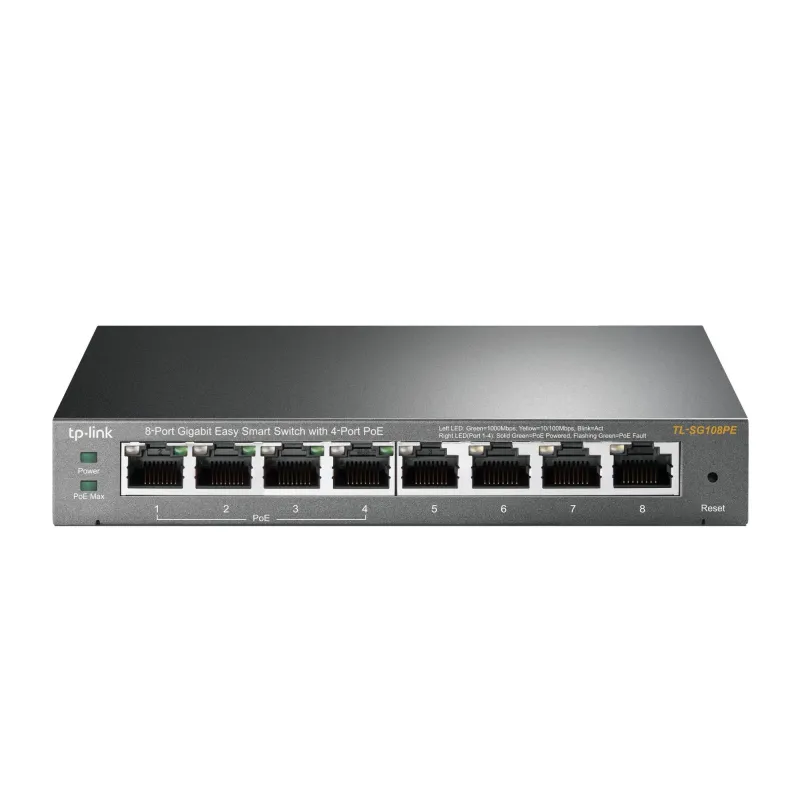

TP-Link TL-SG108PE
8-Port Gigabit Easy Smart Switch with 4-Port PoE
- 8 10/100/1000Mbps RJ45 ports
- With 4 PoE ports, data and power can be transferred on one single cable
- Provides network monitoring, traffic prioritization and VLAN features
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
Overview | TP-LINK TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch, 4-Port PoE, จ่ายไฟ POE 802.3af จำนวน 4 Port สูงสุด 55W รองรับ 802.1Q VLAN, IGMP Snooping, Loop Prevention |
|---|
HARDWARE FEATURES |
|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
|---|
Interface | 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
|
|---|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
|
|---|
Fan Quantity | Fanless |
|---|
Power Supply | External Power Adapter(Output: 48VDC / 1.25A) |
|---|
PoE+ Ports(RJ45) | |
|---|
PoE Ports (RJ45) | Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 55W
|
|---|
Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
|---|
Max Power Consumption | 5.2W with no PoE device connected
65.2W with 55W PoE devices connected |
|---|
Max Heat Dissipation | 17.57 BTU/h with no PoE device connected
222.39 BTU/h with 55W PoE devices connected |
|---|
PERFORMANCE |
|---|
Switching Capacity | 16Gbps |
|---|
Packet Forwarding Rate | 11.9Mpps |
|---|
MAC Address Table | 4K |
|---|
Packet Buffer Memory | 1.5Mb |
|---|
Jumbo Frame | 15KB |
|---|
SOFTWARE FEATURES |
|---|
Quality of Service | Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
|
|---|
L2 Features | IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
|
|---|
VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
|
|---|
Management | Web-based GUI
Easy Smart Configuration Utility
|
|---|
Transmission Method | Store-And-Forward |
|---|
OTHERS |
|---|
Certification | FCC, RoHS |
|---|
Package Contents | TL-SG108PE
Power Adapter
Installation Guide
Resource CD
Rubber Feet
|
|---|
System Requirements | Microsoft® Windows® for optional management utility |
|---|
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing |
|---|
สินค้ารับประกัน Limited Life Time
รายละเอียดสินค้า
10 รายการ
ข้อมูลสินค้า
- Switches Layer
- L2 Managed
- จำนวน Port Lan
- 8 Port
- ความเร็ว Port Lan
- 1Gbps (Gigabit)
- จำนวน Port POE
- 4 Port
- มาตรฐานจ่ายไฟ POE
- POE 802.3af (15.4W)
