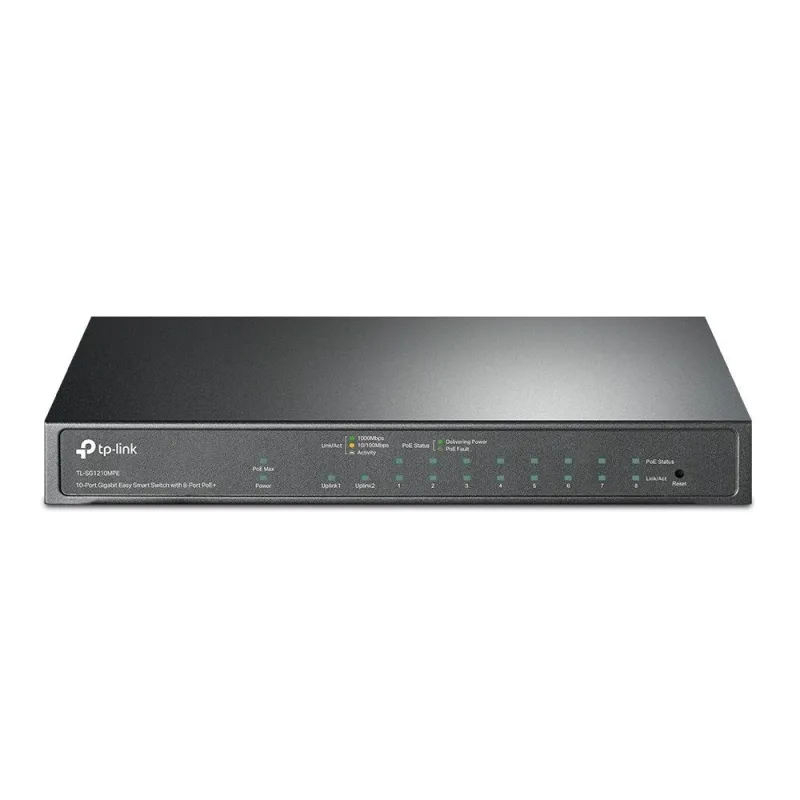

TP-Link TL-SG1210MPE
10-Port Gigabit Easy Smart Switch with 8-Port PoE+
- 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port

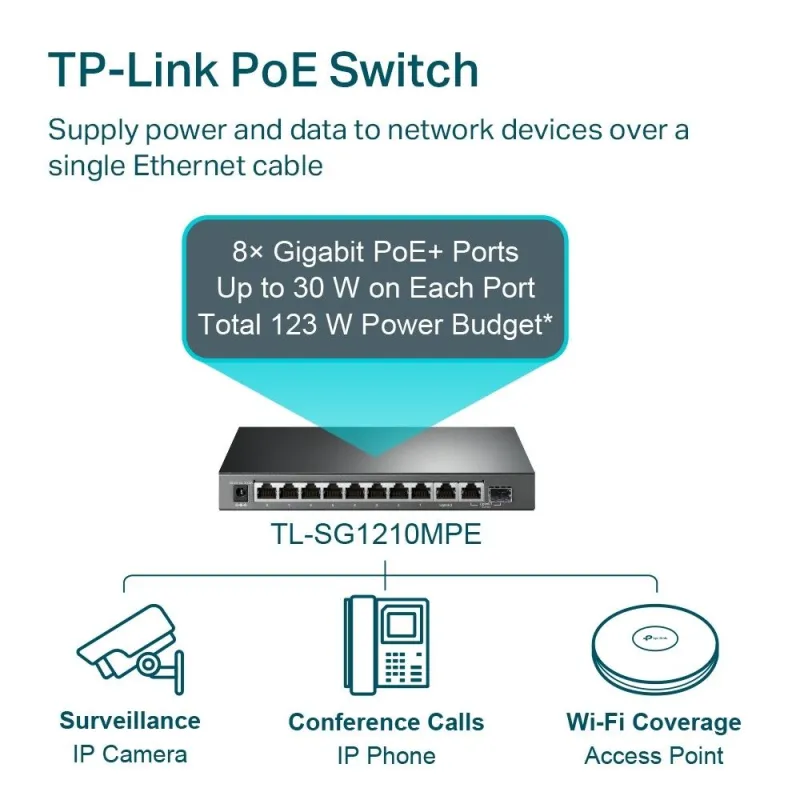

- Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
- Supports PoE power up to 123 W for all PoE ports*

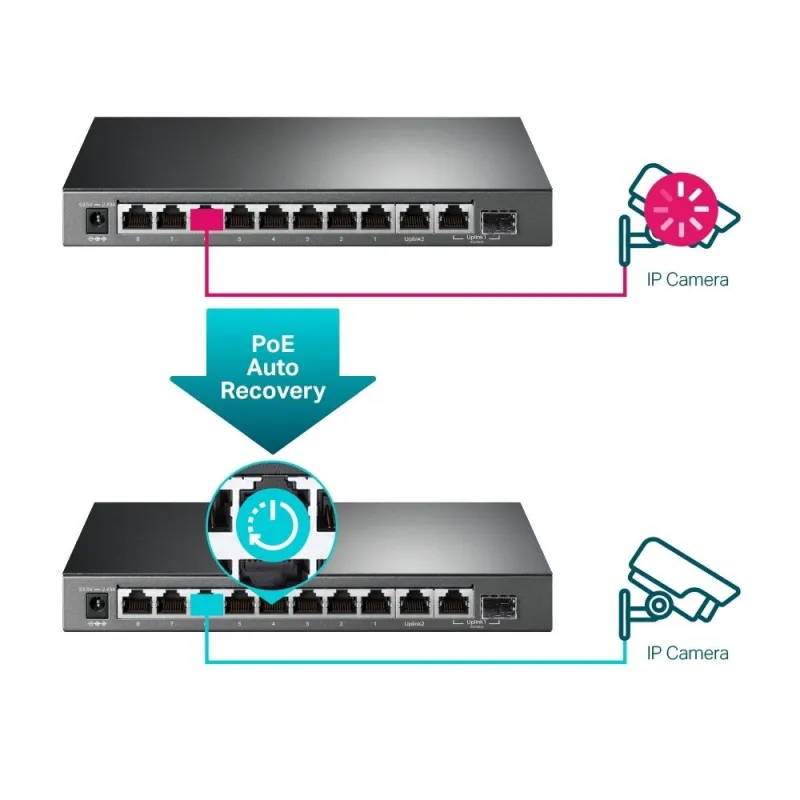

- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery

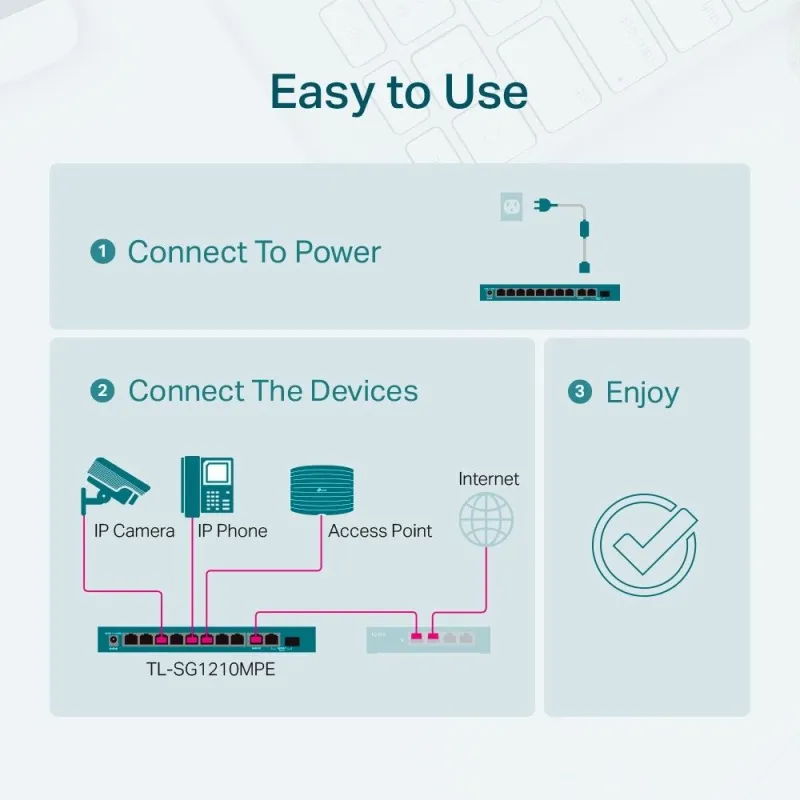

- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
Overview | TP-LINK TL-SG1210MPE 10-Port Gigabit Easy Smart Switch 9-Port, จ่ายไฟ POE 8 Port สูงสุด 123W, 1 Port Combo SFP/RJ45 รองรับ 802.1Q VLAN, IGMP Snooping, Loop Prevention |
|---|
|
|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z |
|---|
Interface | 9× 10/100/1000 Mbps RJ45 Ports
1× 1000 Mbps Combo SFP/RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
|
|---|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
|
|---|
Fan Quantity | Fanless |
|---|
Power Supply | External Power Adapter (Output: 53.5 VDC/2.43 A) |
|---|
PoE Ports (RJ45) | Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 123 W
|
|---|

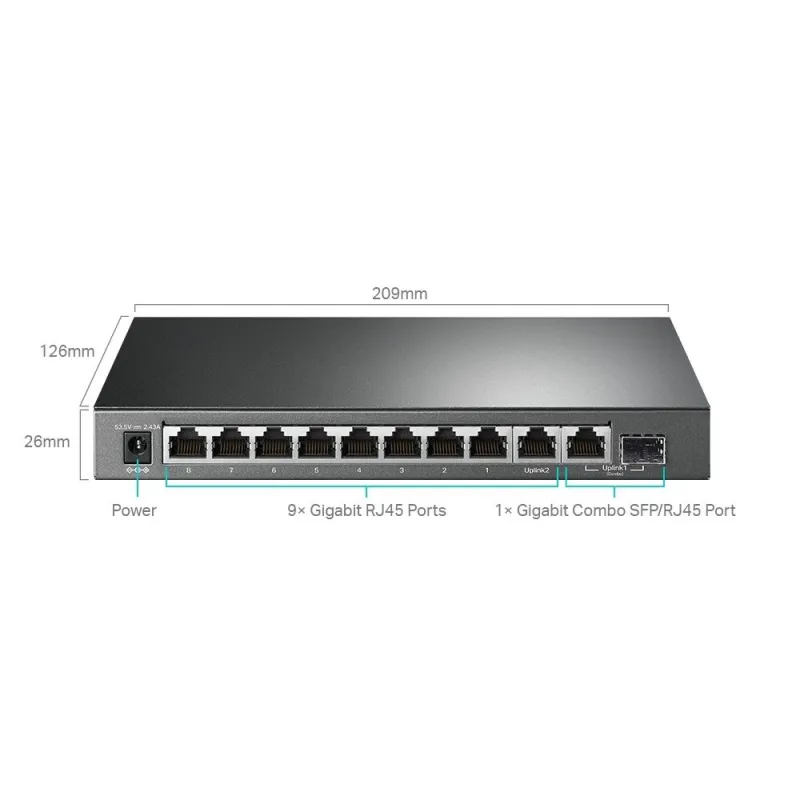

Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
|---|
Max Power Consumption | 7.66 W (220V / 50Hz with no PD connected)
141.54 W (220V / 50Hz with 123 W PD connected) |
|---|
Max Heat Dissipation | 26.12 BTU/h (220V / 50Hz with no PD connected)
482.65 BTU/h (220V / 50Hz with 123 W PD connected)
|
|---|
|
|---|
Switching Capacity | 20 Gbps |
|---|
Packet Forwarding Rate | 14.88 Mpps |
|---|
MAC Address Table | 4 K |
|---|
Jumbo Frame | 16 KB |
|---|
|
|---|
Quality of Service | Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
|
|---|
L2 Features | IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention |
|---|
VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
|
|---|
PoE | Extend Mode**
PoE Auto Recovery |
|---|
Management | Web-based GUI
Easy Smart Configuration Utility
|
|---|
Transmission Method | Store-And-Forward |
|---|
|
|---|
Certification | FCC, CE, RoHS |
|---|
Package Contents | TL-SG1210MPE
Power Adapter
Installation Guide
Rubber Feet
|
|---|
System Requirements | Microsoft® Windows® for running Utility |
|---|
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing |
|---|
รับประกัน | Limited lifetime |
รายละเอียดสินค้า
10 รายการ
ข้อมูลสินค้า
- Switches Layer
- L2 Managed
- จำนวน Port Lan
- 8 Port
- ความเร็ว Port Lan
- 1Gbps (Gigabit)
- จำนวน Port POE
- 8 Port
- มาตรฐานจ่ายไฟ POE
- POE+ 802.3at (30W)
- มี Uplink Port Lan Gigabit
- Yes
- จำนวน SFP Port 1Gigabit
- 1 Port
