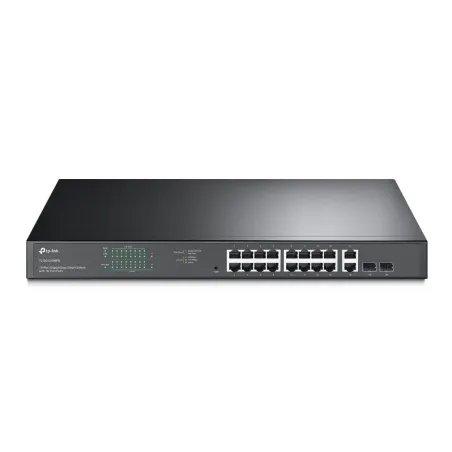

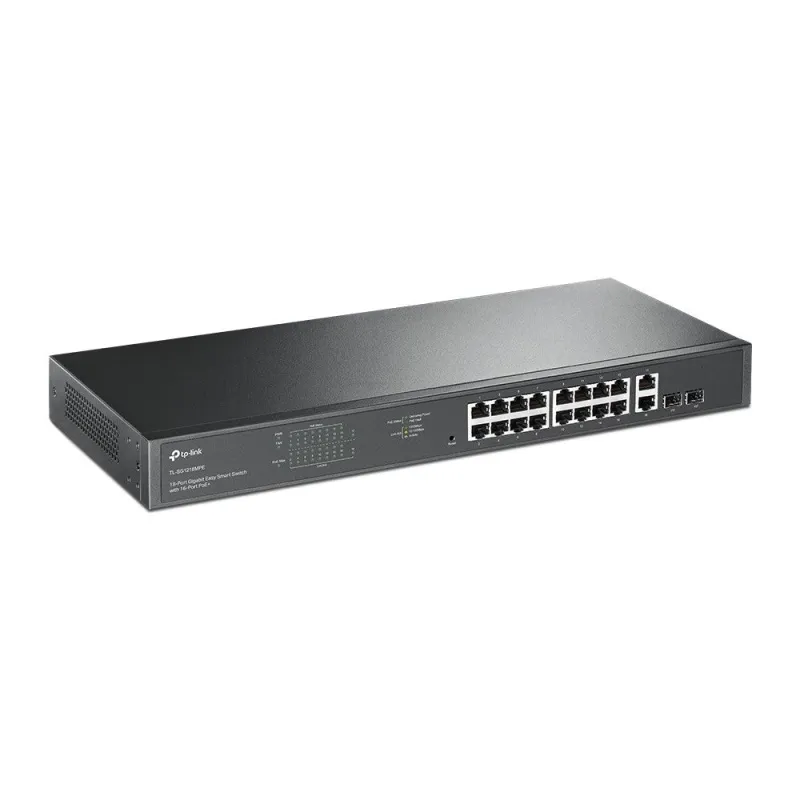

Overview | TP-LINK TL-SG1218MP 18-Port Gigabit Easy Smart Switch 16-Port PoE+, 2 SFP/RJ45 Combo Port, จ่ายไฟ POE 16 Port สูงสุด 250W รองรับ 802.1Q VLAN, IGMP Snooping, Loop Prevention |
|---|
HARDWARE FEATURES |
|---|
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
|---|
Interface | • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× Combo Gigabit SFP Ports |
|---|
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF |
|---|

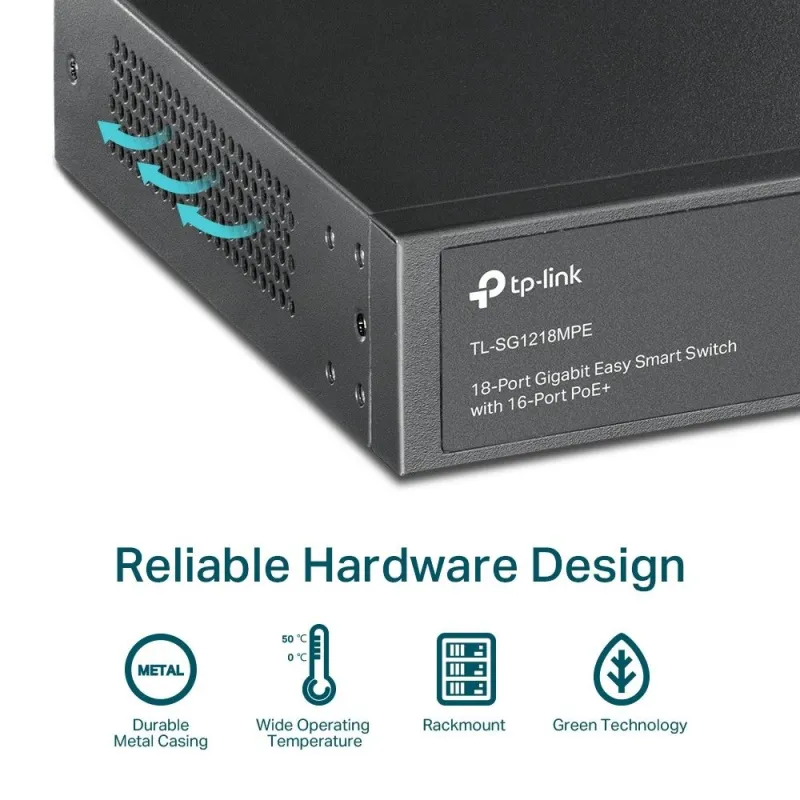

Fan Quantity | 2 Fans |
|---|
Physical Security Lock | Yes |
|---|

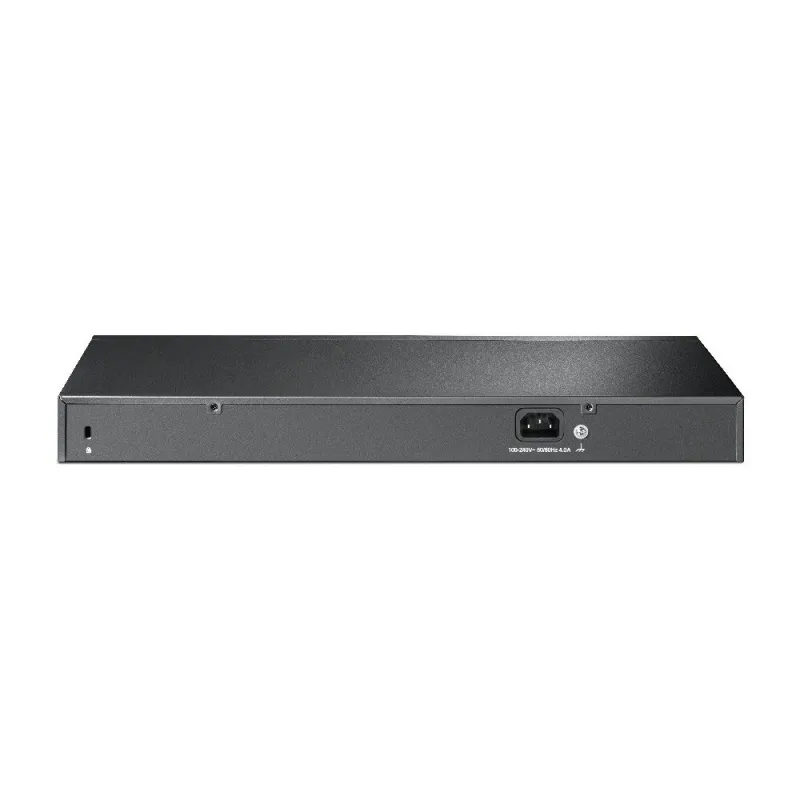

Power Supply | 100–240V AC, 50/60 Hz |
|---|
PoE+ Ports(RJ45) | • Standard: 802.3at/802.3af compliant
• PoE+ Ports: Ports 1–16
• Power Supply: 250 W |
|---|
Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
|---|
Mounting | Rack Mountable |
|---|
Max Power Consumption | • 21.4 W (220/50Hz. no PD connected)
• 296.3 W (220/50Hz. with 250 W PD connected) |
|---|
Max Heat Dissipation | • 72.97 BTU/h (no PD connected)
• 1010.38 BTU/h (with 250 W PD connected) |
|---|
PERFORMANCE |
|---|
Switching Capacity | 36 Gbps |
|---|
Packet Forwarding Rate | 26.78 Mbps |
|---|
MAC Address Table | 8K |
|---|
Packet Buffer Memory | 4.1 Mbit |
|---|
Jumbo Frame | 10 KB |
|---|
SOFTWARE FEATURES |
|---|
Quality of Service | • Support Port-based 802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control |
|---|
L2 Features | • IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• PoE Auto Recovery |
|---|

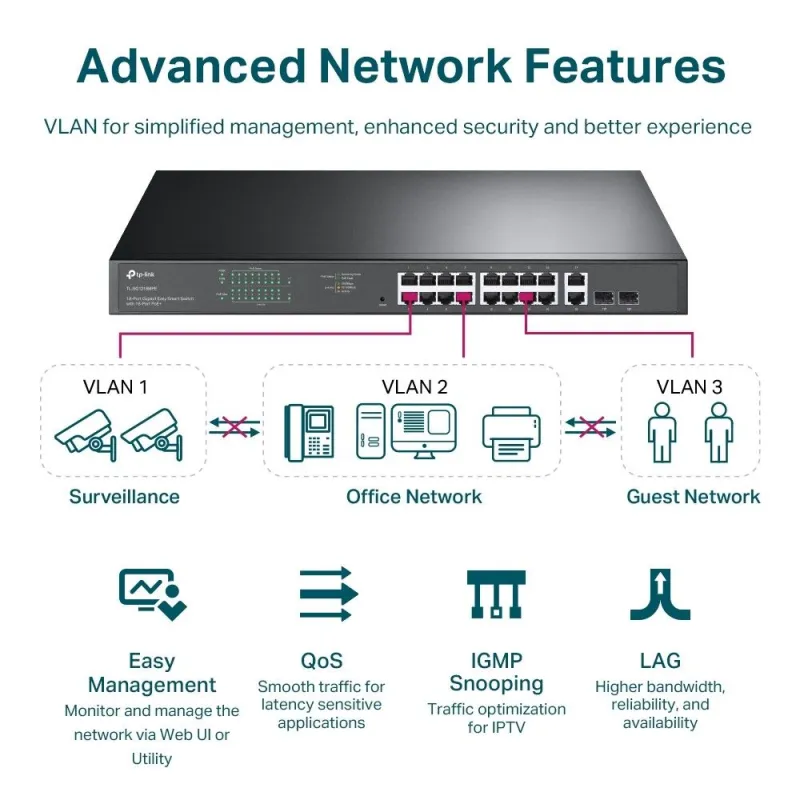

VLAN | • Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
|
|---|
Management | • Web-based GUI
• Easy Smart Configuration Utility
|
|---|
Transmission Method | Store-And-Forward |
|---|
OTHERS |
|---|
Certification | CE, FCC, RoHS |
|---|
Package Contents | • TL-SG1218MPE
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet |
|---|
Environment | • Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
|---|
รับประกัน | Limited lifetime |
