Overview |

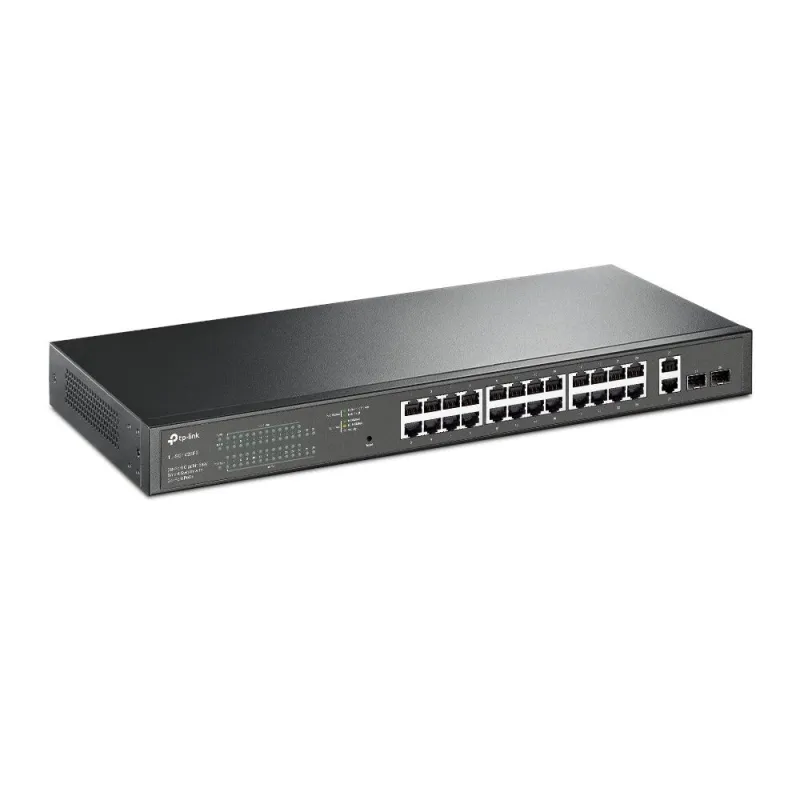

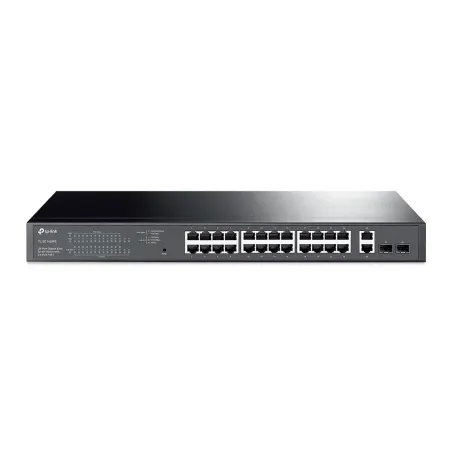

TP-LINK TL-SG1428PE 28-Port Gigabit Easy Smart PoE Switch 24 Port, 2 SFP/RJ45 Combo Port จ่ายไฟ POE 24 Port สูงสุด 250W รองรับ 802.1Q VLAN, IGMP Snooping, Loop Prevention |
|---|---|
|
Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
|
Interface |
26x 10/100/1000 Mbps RJ45 Ports |
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
|
Fan Quantity |
2 Fans |
|
Physical Security Lock |
Yes |
|
Power Supply |
100-240V AC, 50/60 Hz |
|
PoE+ Ports(RJ45) |
Standard: 802.3at/802.3af compliant |
|
Dimensions ( W x D x H ) |
17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) |
|
Mounting |
Rack Mountable |
|
Max Power Consumption |
27 W (220/50Hz. no PD connected) |
|
Max Heat Dissipation |
92.07 BTU/h (no PD connected) |
|
Switching Capacity |
56 Gbps |
|
Packet Forwarding Rate |
41.7 Mbps |
|
MAC Address Table |
8K |
|
Packet Buffer Memory |
4.1 Mbit |
|
Jumbo Frame |
9 KB |
|
Quality of Service |
Support Port-based 802.1p/DSCP priority |
|
L2 Features |
IGMP Snooping V1/V2/V3 |
|
VLAN |
Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) |
|
Management |
Web-Based GUI |
|
Transmission Method |
Store-And-Forward |
|
Certification |
CE, FCC, RoHS |
|
Package Contents |
TL-SG1428PE |
|
Environment |
Operating Temperature: 0°C~50°C (32°F~122°F) |
|
รับประกัน |
Limited lifetime |
