แบรนด์: TP-Link
TL-SG2210MP
TP-Link SDN Smart Switch_T16 Series_Datasheet
TP-Link Jetstream Smart Switches User Guide
คู่มือการ Config TP-Link Omada Series
คู่มือการ Config VLAN TP-Link JetStream Switch

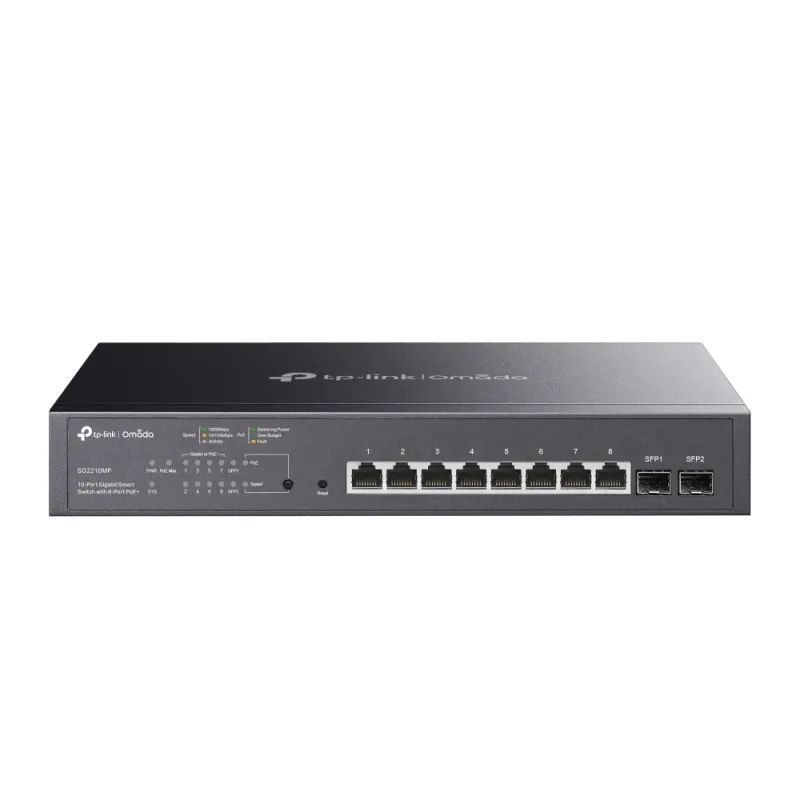

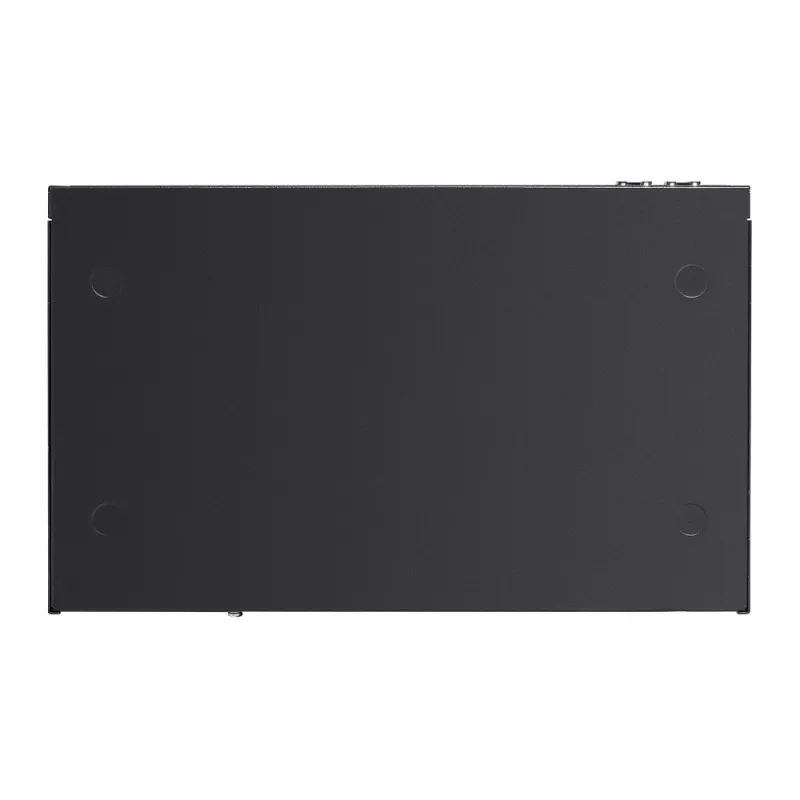

TP-Link TL-SG2210MP
|
TP-LINK TL-SG2210MP JetStream 10-Port Gigabit Smart POE Switch 8 Port พร้อม Port SFP 2 Port รองรับ VLAN IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication จ่ายไฟ POE มาตรฐาน 802.3af/at 8 Port รวม 150W |
---|---|
HARDWARE FEATURES |
|
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
Interface |
• 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) |
Network Media |
• 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m) |
Fan Quantity |
1 |
Physical Security Lock |
Yes |
PoE+ Ports(RJ45) |
• Standard: 802.3at/af compliant |
Dimensions ( W x D x H ) |
11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
Mounting |
Rackmount/Desktop |
Max Power Consumption |
• 12.2 W (110 V / 60 Hz with no PD connected) |
Max Heat Dissipation |
• 41.63 BTU/h (with no PD connected) |
PERFORMANCE |
|
Switching Capacity |
20 Gbps |
Packet Forwarding Rate |
14.9 Mpps |
MAC Address Table |
8K |
Packet Buffer Memory |
4.1 Mbit |
Jumbo Frame |
9 KB |
SOFTWARE FEATURES |
|
Quality of Service |
Support 802.1p CoS/DSCP priority |
L2 and L2+ Features |
Static Routing |
VLAN |
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) |
Access Control List |
L2–L4 package filtering |
Security |
AAA |
IPv6 |
Dual IPv4/IPv6 stack |
IPv6 Applications |
DHCPv6 Client |
MANAGEMENT |
|
Omada App |
Yes |
Centralized Management |
Omada Cloud-Based Controller |
Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features |
Web-based GUI and CLI management |
OTHERS |
|
Certification |
CE, FCC, RoHS |
Package Contents |
TL-SG2428P |
System Requirements |
Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux. |
Environment |
Operating Temperature: 0–50 ℃ (32–122 ℉); |
รับประกัน |
Limited lifetime |
