Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
|---|
Interface | 16 10/100/1000Mbps RJ45 Ports
(Auto-Negotiation/Auto MDI/MDIX)
2 Combo 100/1000Mbps SFP Slots |
|---|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF |
|---|
Fan Quantity | Fanless |
|---|
Power Supply | 100~240VAC, 50/60Hz |
|---|
Power Consumption | Maximum: 14.4W (220V/50Hz) |
|---|
Dimensions ( W x D x H ) | 17.3* 7.1* 1.7 in. (440* 180* 44 mm) |
|---|
PERFORMANCE |
|---|
Bandwidth/Backplane | 32Gbps |
|---|
Packet Forwarding Rate | 23.8Mpps |
|---|
MAC Address Table | 8k |
|---|
Jumbo Frame | 10240 Bytes |
|---|
SOFTWARE FEATURES |
|---|
Quality of Service | Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN |
|---|
L2 Features | IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups,
containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control |
|---|
VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
|---|
Access Control List | L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports |
|---|
Security | SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown unicast Storm Control
802.1x and Radius Authentication?IP-Mac-Port-VID Binding?ARP Inspection?DHCP Snooping?DoS Defend |
|---|
Management | Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS |
|---|
OTHERS |
|---|
Certification | CE, FCC, RoHS |
|---|

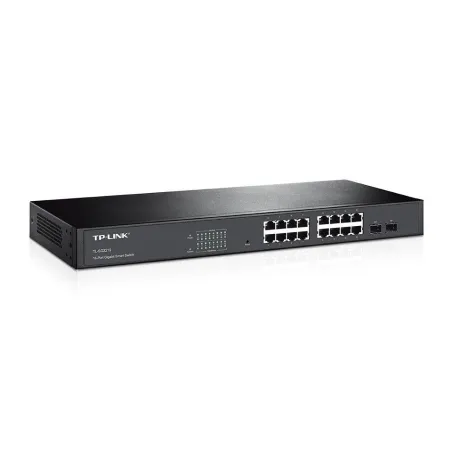

Package Contents | TL-SG2216
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet |
|---|
System Requirements | Microsoft Windows XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux. |
|---|
Environment | Operating Temperature: 0~40C (32~104F);
Storage Temperature: -40~70C (-40~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
