Overview
|

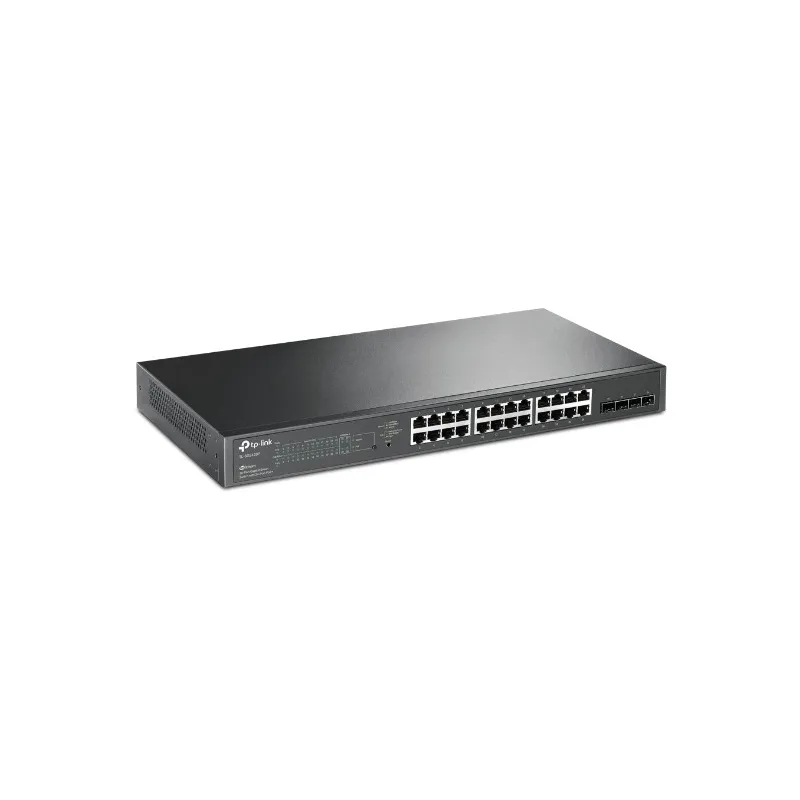

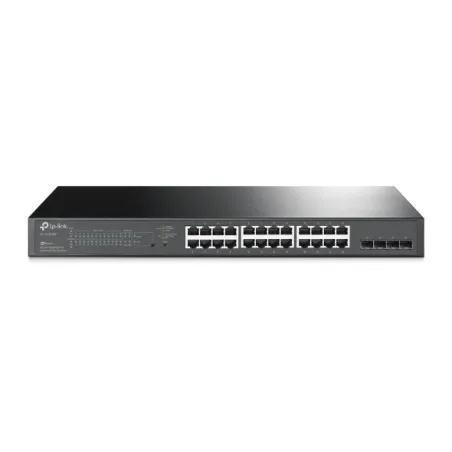

TP-LINK TL-SG2428P JetStream 28-Port Gigabit Smart POE Switch 24 Port พร้อม Port SFP 4 Port
Switch L2+ Manage รองรับการทำ Static Routing, DHCP Server, VLAN
จ่ายไฟ POE มาตรฐาน 802.3af/at 24 Port รวม 250W
รองรับ Omada Controller
|
|
Standards and Protocols
|
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
|
Interface
|
• 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 4× Gigabit SFP Slots
|
Network Media
|
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) • 1000BASE-X: MMF, SMF
|
Fan Quantity
|
2
|
Power Supply
|
100-240V AC, 50/60Hz
|
PoE Ports (RJ45)
|
• Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports • PoE Power Budget: 250 W*
|
Dimensions ( W x D x H )
|
17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
|
Mounting
|
Rack Mountable
|
Max Power Consumption
|
• V1: 308.6 W (110V/60Hz with 250 W PD connected); 32.1 W (110 V/ 60 Hz with no PD connected) • V2: 294.7 W (220 V/50 Hz) (with 250 W PD connected) • V3: 291.9 W (110V/60Hz) (with 250 W PD connected) • V4: 306.9 W (110V/60Hz) (with 250 W PD connected)
|
Max Heat Dissipation
|
• V1: 1052.94 BTU/h (with 250 W PD connected); 109.53 BTU/h (with no PD connected) • V2: 1005.66 BTU/hr (220V/50 Hz) (with 250 W PD connected) • V3: 996.01 BTU/hr (110V/60Hz) (with 250 W PD connected) • V4: 1047.30 BTU/hr (110V/60 Hz) (with 250 W PD connected)
|
|
Switching Capacity
|
56 Gbps
|
Packet Forwarding Rate
|
41.7 Mpps
|
MAC Address Table
|
• V1, V2, V4 and above: 8K • V3: 16K
|
Packet Buffer Memory
|
4.1 Mbit
|
Jumbo Frame
|
9 KB
|
|
Quality of Service
|
• 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control
|
L2 and L2+ Features
|
• 16 IP Interfaces - Support IPv4/IPv6 Interface • Static Routing - 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED
|
VLAN
|
• VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN
|
Access Control List
|
• Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark
|
Security
|
• AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control
|
IPv6
|
• IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP
|
Advanced Features
|
• Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule
|
MIBs
|
• MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9)
|
|
Omada App
|
Yes, through • Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2) • OC300 • OC200 • Omada Software Controller
|
Centralized Management
|
• Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2) • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller
|
Cloud Access
|
Yes, through • Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2) • OC300 • OC200 • Omada Software Controller
|
Zero-Touch Provisioning
|
Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2428P v1, v3 and above, while is not supported by TL-SG2428P v2)
|
Management Features
|
• Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log
|
|
Certification
|
CE, FCC, RoHS
|
Package Contents
|
TL-SG2428P • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet
|
System Requirements
|
Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
|
Environment
|
• Operating Temperature: 0–50 ℃ (32–122 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
|
รับประกัน
|
Limited lifetime
|
