Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
|---|

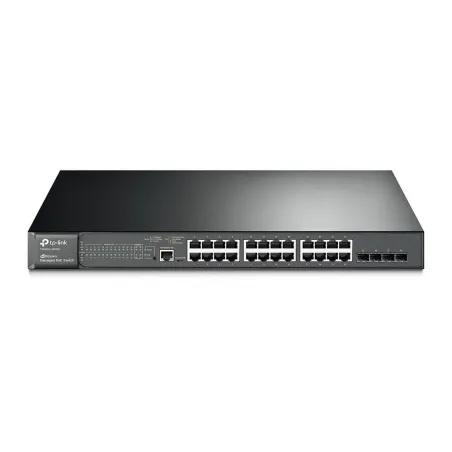

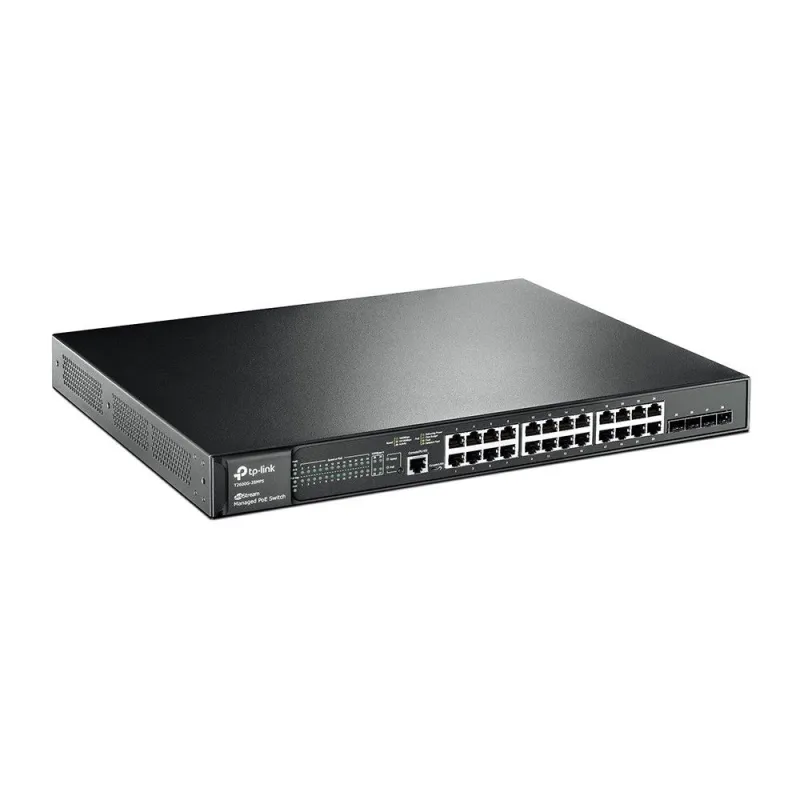

Interface | 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 1000Mbps SFP Slots
1 Console Port
1 Micro-USB Console Port |
|---|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF |
|---|
Fan Quantity | 2 |
|---|

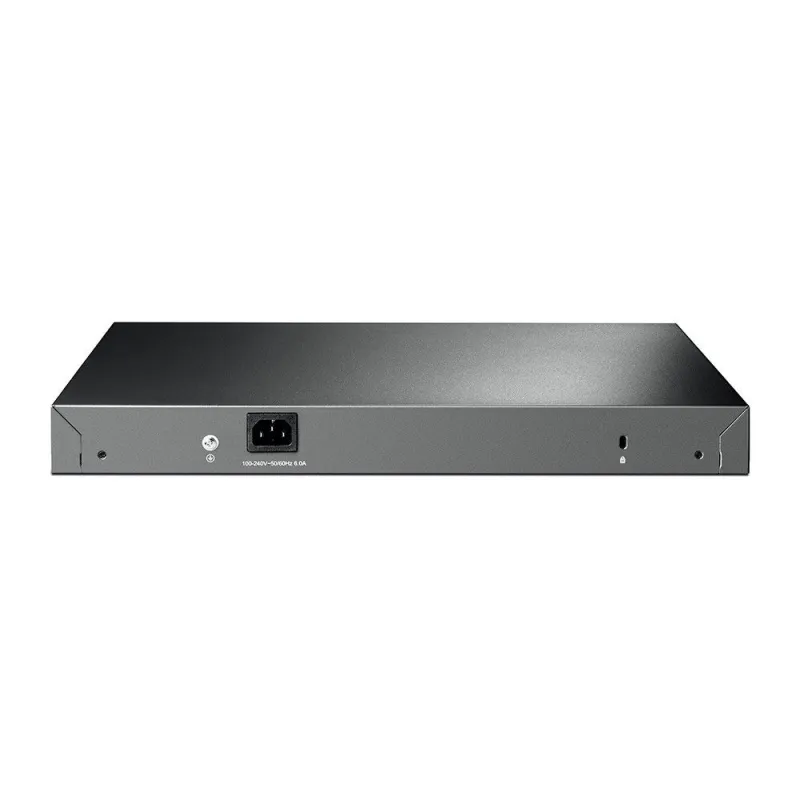

Power Supply | 100~240VAC, 50/60Hz |
|---|
PoE+ Ports(RJ45) | Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 384W |
|---|
Dimensions ( W x D x H ) | 17.3*13*1.7 in.(440*330*44 mm) |
|---|
Mounting | Rack Mountable |
|---|
Max Power Consumption | 29.02W (220V/50Hz with no PD connected)
468.7W (110V/60Hz with 384W PD connected) |
|---|
Max Heat Dissipation | 99.02 BTU/h (with no PD connected)
1599.20 BTU/h (with 384W PD connected) |
|---|
PERFORMANCE |
|---|
Switching Capacity | 56Gbps |
|---|
Packet Forwarding Rate | 41.7Mpps |
|---|
MAC Address Table | 16k |
|---|
Jumbo Frame | 9KB |
|---|
SOFTWARE FEATURES |
|---|
Quality of Service | Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN |
|---|
L2 and L2+ Features | Static Routing
DHCP Relay
DHCP Server
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
L2PT |
|---|
VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
802.1Q/MAC/Protocol-based/Private VLAN
GARP/GVRP |
|---|
Access Control List | L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p,DSCP, protocol and VLAN ID
Time Range Based
|
|---|
Security | IP-MAC-Port Binding
AAA
802.1x and Radius Authentication
DoS Defend
Dynamic ARP Inspection (DAI)
SSH v1/v2
SSL v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
|
|---|
IPv6 | Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 ACL
DHCPv6 Snooping
IPv6 Interface
|
|---|
IPv6 Applications | DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
IPv6 ACL
IPv6 Interface
IPv6 Routing
DHCPv6 Relay
DHCPv6 Snooping
|
|---|
Management | Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs
RMON (1, 2, 3, 9 groups)
sFlow
PPPoE Circuit ID
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
Dual Image
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Password Recovery
|
|---|
OTHERS |
|---|
Certification | CE, FCC, RoHS |
|---|
Package Contents | Switch
Power Cord
Quick Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
|
|---|
System Requirements | Microsoft? Windows XP, Vista, 7, 8, 10, MAC OS, NetWare, UNIX or Linux. |
|---|
Environment | Operating Temperature: 0~40C (32~104F);
Storage Temperature: -40~70C (-40~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
