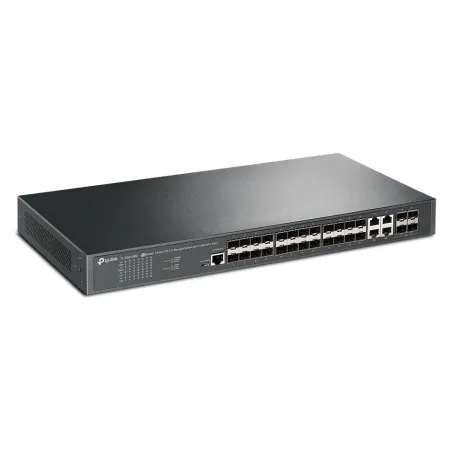

TL-SG3428XF TP-LINK JetStream 24-Port SFP L2+ Managed Switch, 4-Port 10GE SFP+
  • TL-SG3428XF TP-LINK JetStream 24-Port SFP L2+ Managed Switch, 4-Port 10GE SFP+
  • TL-SG3428XF TP-LINK JetStream 24-Port SFP L2+ Managed Switch, 4-Port 10GE SFP+
  • TL-SG3428XF TP-LINK JetStream 24-Port SFP L2+ Managed Switch, 4-Port 10GE SFP+

TL-SG3428XF TP-LINK JetStream 24-Port SFP L2+ Managed Switch, 4-Port 10GE SFP+

TP-Link

TL-SG3428XF

TP-LINK TL-SG3428XF JetStream 24-Port SFP L2+ Managed Switch พร้อม 4x10GE SFP+ Slots รองรับ Omada Controller

฿18,900.00
ยังไม่ได้รวมภาษี
จำนวน
4 รายการ

Rating:
(0)


Support / ติดตั้งด้วยทีมงาน Certificate


สอบถามรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet

Click ขอใบเสนอราคา

close

แบบฟอร์มขอใบเสนอราคา



รายละเอียด

SDN 10-Gigabit L2+ Managed Switch Datasheet
PoE Switch Series Product Introduction
Switch Overview of Regulatory Compliance(UN)
Wall Mountable Switches_Wall Mounting Guide

คู่มือการ Config TP-Link Omada Series

คู่มือการ Config VLAN TP-Link JetStream Switch

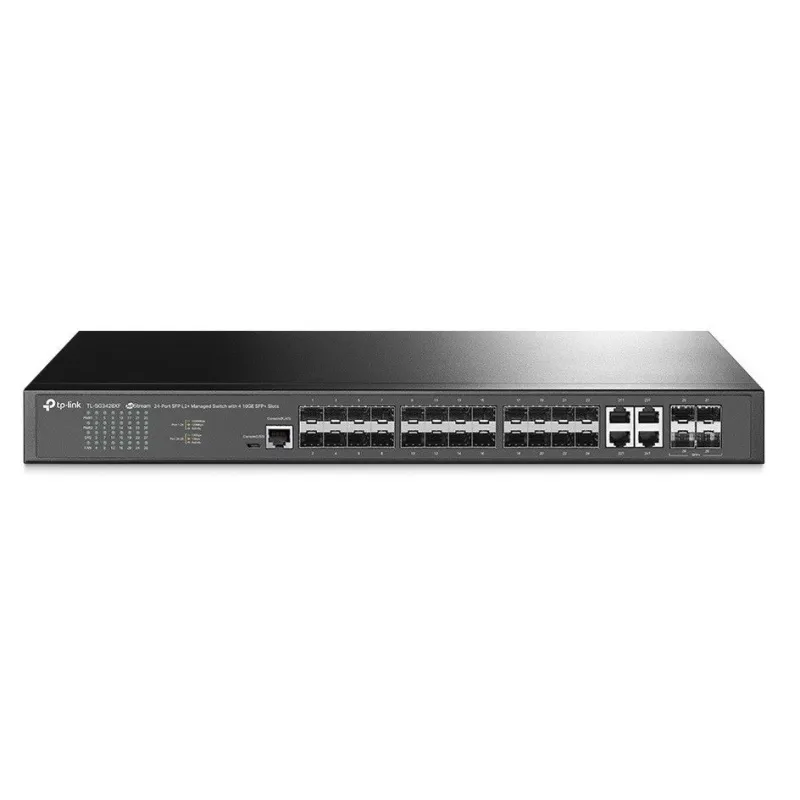

TP-Link TL-SG3428XF

JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots

  • 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
  • Gigabit Fiber Speeds: 20× gigabit SFP ports and 4× gigabit SFP/RJ45 Combo ports s offer high-speed and reliable connections to other switches and devices.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities



Overview

TP-LINK TL-SG3428XF JetStream 24-Port SFP L2+ Managed Switch พร้อม 4x10GE SFP+ Slots, Redundant Power Supply

รองรับ IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X

รองรับ Omada Controller

HARDWARE FEATURES

Interface

20× Gigabit SFP Ports
4× Gigabit SFP/RJ45 Combo Ports
4× 10G SFP+ Slots
1× RJ45 Console Port
1× Micro-USB Console Port

Fan Quantity

1 Fan

Power Supply

Dual Reduant Power Supplies
100-240 V AC~50/60 Hz

Dimensions ( W x D x H )

17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)

Mounting

Rack Mountable

Max Power Consumption

35.7 W (110 V/60 Hz)

Max Heat Dissipation

121.81 BTU/hr (110 V/60 Hz)

PERFORMANCE

Switching Capacity

128 Gbps

Packet Forwarding Rate

95.23 Mpps

MAC Address Table

16 K

Packet Buffer Memory

12 Mbit

Jumbo Frame

9 KB

SOFTWARE FEATURES

Quality of Service

8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
Bandwidth Control
- Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark

L2 and L2+ Features

Link Aggregation
- static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups, containing 8 ports per group
Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, Root Protect
Loopback Detection
- Port based
- VLAN based
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both

L2 Multicast

IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
IGMP Authentication
MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
MVR
Multicast Filtering: 256 profiles and 16 entries per profile

VLAN

VLAN Group
- Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
Voice VLAN

Access Control List

Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL apply to Port/VLAN

Security

IP-MAC-Port Binding
- 512 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard: 100 Entries
IPv6-MAC-Port Binding
- 512 Entries
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard: 100 Entries
DoS Defend
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication andaccountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control

IPv6

IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP

L3 Features

16 IPv4/IPv6 Interfaces
Static Routing
- 48 static routes
Static ARP
- 128 Static Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
DHCP L2 Relay

Advanced Features

Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

MIBs

MIB II (RFC1213)
Interface MIB (RFC2233)
Ethernet Interface MIB (RFC1643)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
RMON MIB (RFC2819)
RMON2 MIB (RFC2021)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIB

MANAGEMENT

Omada App

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features

Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log

OTHERS

Certification

CE, FCC, RoHS

Package Contents

TL-SG3428XF Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0–45 ℃ (32–113 ℉);
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

รับประกัน

Limited lifetime

TP-Link TL-SG3428XF 10G Uplink Managed Switch with Full Fiber Ports

JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots

TP-Link TL-SG3428XF JetStream 24-Port SFP L2+ Managed Switch

TP-Link TL-SG3428XF JetStream 24-Port SFP L2+ Managed Switch

TP-Link TL-SG3428XF Full Fiber Switch with Lightning-Fast 10G

Build and expand your lightning-fast network with TP-Link TL-SG3428XF—a fully managed switch with 20× gigabit SFP ports, 4× gigabit SFP/RJ45 combo ports, and 4× 10G SFP+ ports. Being ideal for any business network, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.

TP-Link TL-SG3428XF JetStream 24-Port SFP L2+ Managed Switch

TP-Link TL-SG3428XF Ideal for Use in Aggregation Layer

TP-Link TL-SG3428XF JetStream 24-Port SFP L2+ Managed Switch

TP-Link TL-SG3428XF Seamless Integration to Omada Cloud SDN

Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

TP-Link TL-SG3428XF JetStream 24-Port SFP L2+ Managed Switch

TP-Link TL-SG3428XF Dual Redundant Power Supplies

Two power supplies back each other up and makes an ideal choice for reliable networking architecture.

TP-Link TL-SG3428XF JetStream 24-Port SFP L2+ Managed Switch

TP-Link TL-SG3428XF Advanced L3 Features

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

TP-Link TL-SG3428XF JetStream 24-Port SFP L2+ Managed Switch

  • Secure Networking

    Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks makes it easier to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to valid user credentials.

  • Enterprise Level Features

    802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are supported by the lineup of innovative L2+ features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reduces unnecessary traffic. IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.

  • Advanced Quality of Service (QoS)

    Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in low bandwidth situations.

  • ISP Features**

    Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.

  • IPv6 Support

    An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without needing to upgrade your hardware. Take advantage of features to enhance your network environment, including Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover.



รายละเอียดสินค้า
4 รายการ

ข้อมูลสินค้า

Layer Switch
L2/L3 Managed
ความเร็ว Port Lan
1Gbps (Gigabit)
SFP+ Port 10-Gigabit
2 Port
