Overview |

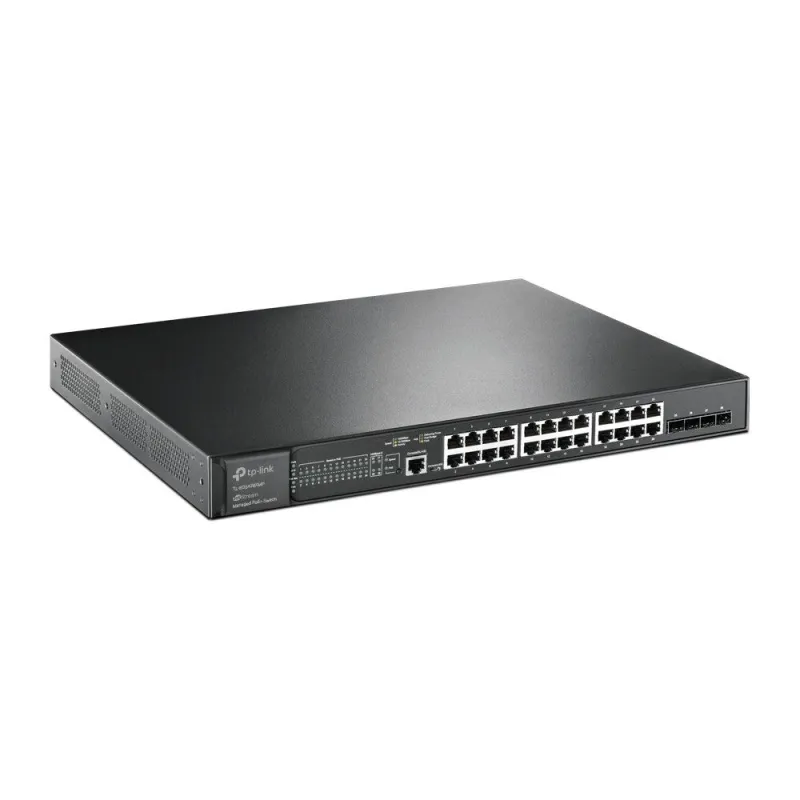

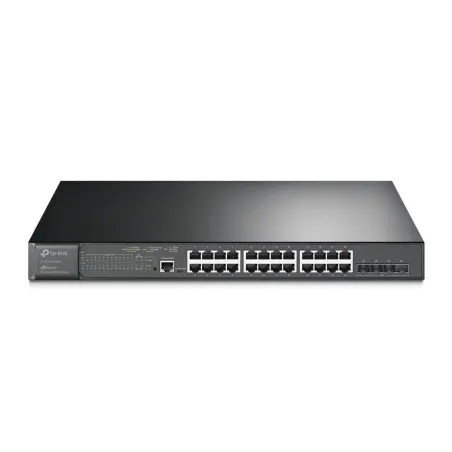

TP-LINK TL-SG3428XMP JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch จ่ายไฟ POE มาตรฐาน 802.3af/at 24 Port สูงสุด 384W รองรับ IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X รองรับ Omada Controller |
---|---|
HARDWARE FEATURES |
|
Interface |
• 24× 10/100/1000 Mbps RJ45 Ports |
Fan Quantity |
2 |

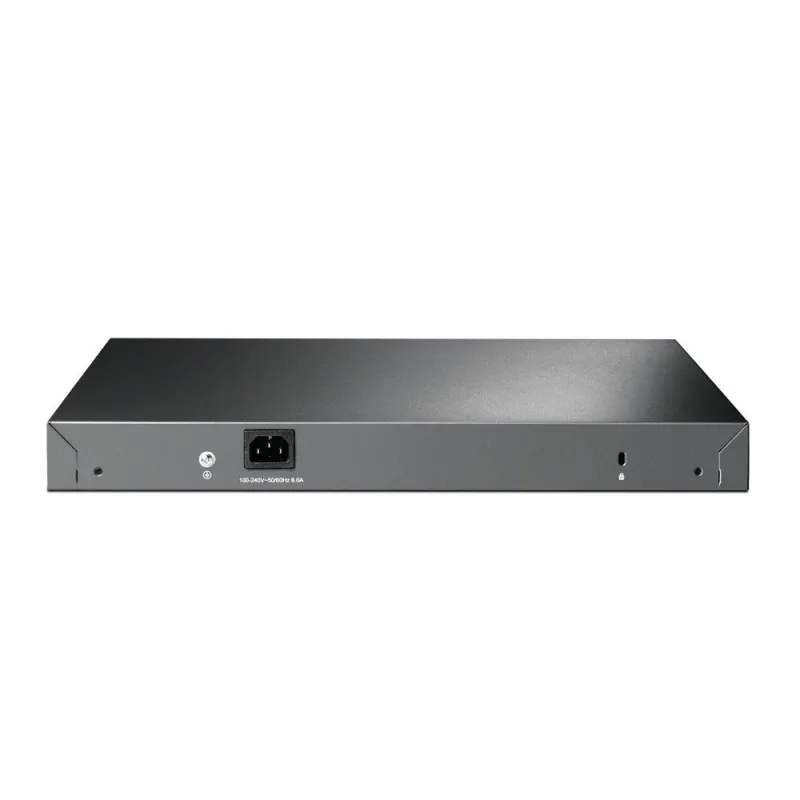

Power Supply |
100-240 V AC~50/60 Hz |
PoE+ Ports(RJ45) |
• Standard: 802.3at/af compliant |
Dimensions ( W x D x H ) |
17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
Mounting |
Rack Mountable |
Max Power Consumption |
• V1: 465.8 W (110V/60Hz) ( with 384 W PD device connected); 34.4 W (110V/60Hz) ( no PD device connected) |
Max Heat Dissipation |
• V1: 1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected); 117.38 BTU/h (110 V/60 Hz) (no PD device connected) |
PERFORMANCE |
|
Switching Capacity |
128 Gbps |
Packet Forwarding Rate |
95.23 Mpps |
MAC Address Table |
16 K |
Packet Buffer Memory |
12 Mbit |
Jumbo Frame |
9 KB |
SOFTWARE FEATURES |
|
Quality of Service |
• 8 priority queues |
L2 and L2+ Features |
• Link Aggregation |
L2 Multicast |
• IGMP Snooping |
VLAN |
• VLAN Group |
Access Control List |
• Time-based ACL |
Security |
• IP-MAC-Port Binding |
IPv6 |
• IPv6 Dual IPv4/IPv6 |
L3 Features |
• 16 IPv4/IPv6 Interfaces |
Advanced Features |
• Automatic Device Discovery |
MIBs |
• MIB II (RFC1213) |
MANAGEMENT |
|
Omada App |
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management |
• Omada Cloud-Based Controller |
Cloud Access |
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller. |
Management Features |
• Web-based GUI |
OTHERS |
|
Certification |
CE, FCC, RoHS |
Package Contents |
• TL-SG3428XMP Switch |
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
Environment |
• Operating Temperature: 0–45 ℃ (32–113 ℉); |
รับประกัน |
Limited lifetime |
