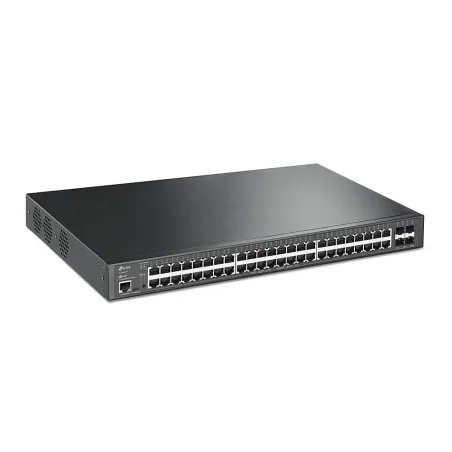

Overview | TP LINK TL-SG3452XP JetStream L2+ Managed POE Switch 48-Port Gigabit, 4-Port 10GE SFP+, PoE+ จ่ายไฟ POE มาตรฐาน 802.3af/at สูงสุด 500W รองรับ IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X รองรับ Omada Controller |
|---|
HARDWARE FEATURES |
|---|
Interface | 48× 10/100/1000 Mbps RJ45 PoE+ Ports
4× 10G SFP+ Slots
1× RJ45 Console Port
1× Micro-USB Console Port |
|---|
Fan Quantity | 3 |
|---|
Power Supply | 100-240 V AC~50/60 Hz |
|---|

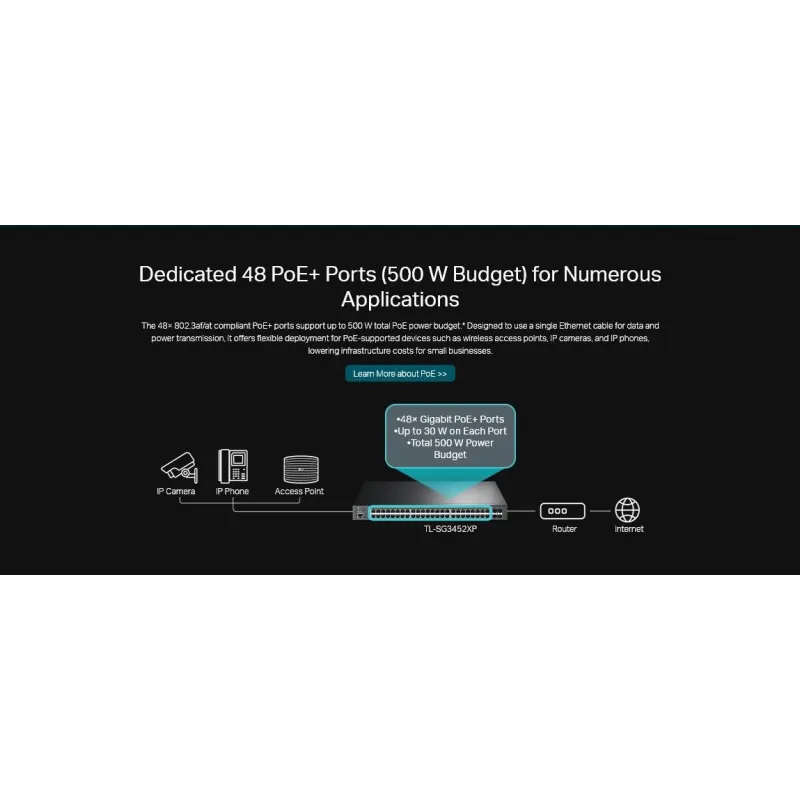

PoE+ Ports(RJ45) | Standard: 802.3at/af compliant
PoE+ Ports: 48 Ports, up to 30 W per port
Power Budget: 500 W* |
|---|
Dimensions ( W x D x H ) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
|---|
Mounting | Rack Mountable |
|---|
Max Power Consumption | 49.19 W (110V/60Hz) ( no PD device connected)
635.7 W (110V/60Hz) ( with 500 W PD device connected) |
|---|
Max Heat Dissipation | 167.85 BTU/hr (110 V/60 Hz) (no PD connected)
2169.2 BTU/hr (110 V/60 Hz) (with 500 W PD connected) |
|---|
PERFORMANCE |
|---|
Switching Capacity | 176 Gbps |
|---|
Packet Forwarding Rate | 130.9 Mpps |
|---|
MAC Address Table | 16 K |
|---|
Packet Buffer Memory | 12 Mbit |
|---|
Jumbo Frame | 9 KB |
|---|
SOFTWARE FEATURES |
|---|
Quality of Service | 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
Bandwidth Control
- Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark |
|---|
L2 and L2+ Features | Link Aggregation
- static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups, containing 8 ports per group
Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, Root Protect
Loopback Detection
- Port based
- VLAN based
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both |
|---|
L2 Multicast | IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
IGMP Authentication
MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
MVR
Multicast Filtering: 256 profiles and 16 entries per profile |
|---|
VLAN | VLAN Group
- Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
Voice VLAN |
|---|
Access Control List | Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL apply to Port/VLAN |
|---|
Security | IP-MAC-Port Binding
- 512 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard: 100 Entries
IPv6-MAC-Port Binding
- 512 Entries
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard: 100 Entries
DoS Defend
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication andaccountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control |
|---|
IPv6 | IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP |
|---|
L3 Features | 16 IPv4/IPv6 Interfaces
Static Routing
- 48 static routes
Static ARP
- 128 Static Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
DHCP L2 Relay |
|---|
Advanced Features | Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
|
|---|
MIBs | MIB II (RFC1213)
Interface MIB (RFC2233)
Ethernet Interface MIB (RFC1643)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
RMON MIB (RFC2819)
RMON2 MIB (RFC2021)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIB |
|---|
MANAGEMENT |
|---|
Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
|---|

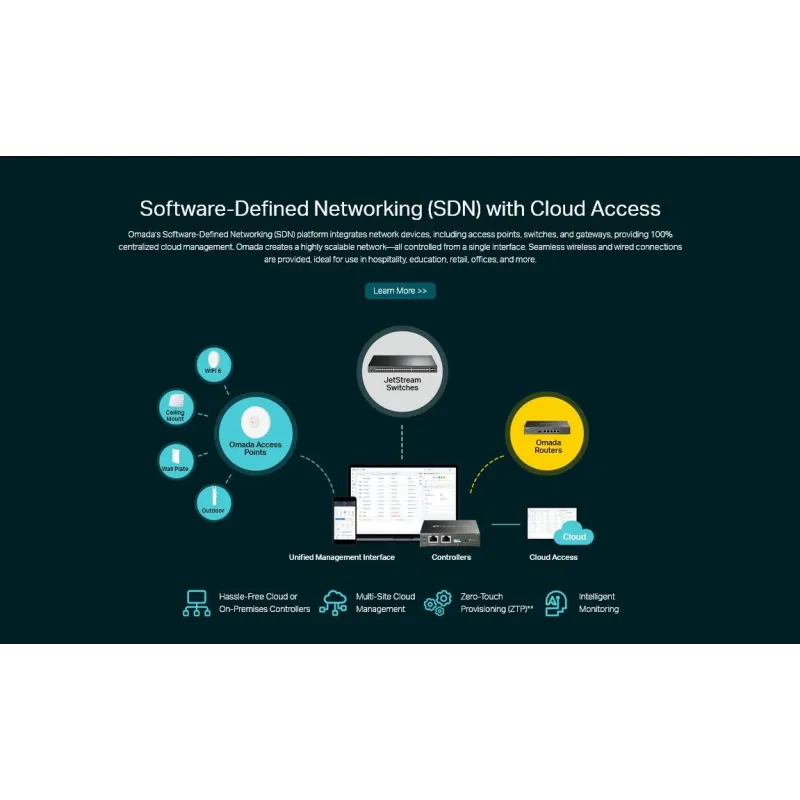

Centralized Management | Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller |
|---|
Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
|---|
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
|---|
Management Features | Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log |
|---|
OTHERS |
|---|
Certification | CE, FCC, RoHS |
|---|
Package Contents | TL-SG3452XP Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet |
|---|
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
|---|
Environment | Operating Temperature: 0–40 ℃ (32–104 ℉);
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing |
|---|
รับประกัน | Limited lifetime |
