รายละเอียด
TP-Link TL-SL5428E V3 Datasheet
คู่มือการ Config TP-Link Oma da Series
คู่มือการ Config VLAN TP-Link JetStream Switch

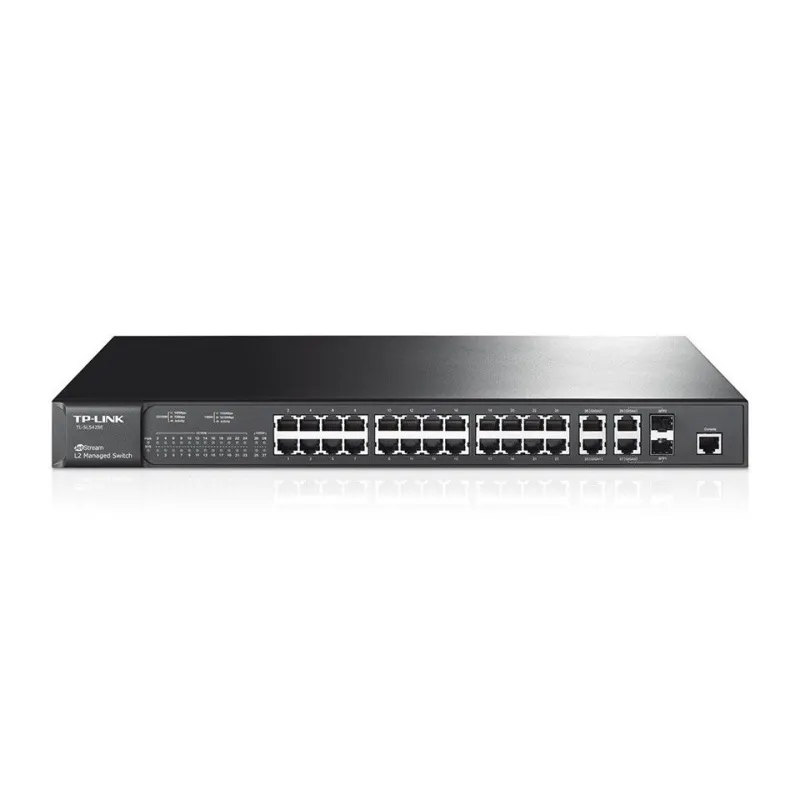

TP-Link TL-SL5428E JetStream 24-Port 10/100Mbps + 4-Port Gigabit L2 Managed Switch รองรับ 802.1Q tag VLAN, Port Mirroring, DHCP Snooping, Virtusl Stack 32 Units
ACL, 802.1X Authentication, Port Security, IP Filtering, Storm control, DHCP Snooping, IP Source Guard and DoS Defend provide you robust security strategy Single-IP-Management supports virtual stack of 32 units L2/L3/L4 QoS and IGMP snooping optimize voice and video application SNMP, RMON, WEB/CLI/Telnet Log-in bring abundant management policies
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface
24 10/100Mbps RJ45 Ports
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
Fan Quantity
Fanless
Power Supply
100~240VAC, 50/60Hz
Power Consumption
Maximum: 15W (220V/50Hz)
Dimensions ( W x D x H )
17.3*7.1*1.7 in.(440*180*44 mm)
PERFORMANCE
Stacking
32 Units Virtual Stacking
Bandwidth/Backplane
12.8Gbps
Packet Forwarding Rate
9.5Mpps
MAC Address Table
8k
Jumbo Frame
2048 Bytes
SOFTWARE FEATURES
Quality of Service
4 Queues/Port 802.1p/IP DSCP based COS,TOS
L2 Features
IGMP Snooping: V1/V2/V3
VLAN
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Access Control List
Packet Flow Filter; Packet Flow Redirection;
Security
IP-MAC-Port-VID Binding
IPv6
Dual IPv4/IPv6 stack
IPv6 Applications
DHCPv6 Client
Management
System Diagnose: VCT
OTHERS
Certification
CE, FCC, RoHS
Package Contents
Switch; Power Cord; Quick Installation Guide;
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment
Operating Temperature: 0~40C (32~104F);
รับประกัน
Limited lifetime
รายละเอียดสินค้า
สินค้ามีในสต็อค
10 รายการ
ข้อมูลสินค้า
ประเภท Switch
L2 Managed
ความเร็ว Port Lan
100Mbps
จำนวน Port Lan
24 Port
มี Uplink Port Lan Gigabit
Yes
