TL-SX105 TP-LINK 5-Port Multi-Gig 1/2.5/5/10G Desktop Switch

TL-SX105

TP-LINK TL-SX105  Unmanaged Switch 5-Port Desktop Switch ความเร็ว Multi-Gig 1Gbps/2.5Gbps/5Gbps/10Gbps เคสเหล็ก

฿10,450.00
ยังไม่ได้รวมภาษี
จำนวน


สอบถามรายละเอียดสินค้าเพิ่มเติม LINE:
@sysnet


รายละเอียด

TL-SX105(UN)_V1_Datasheet

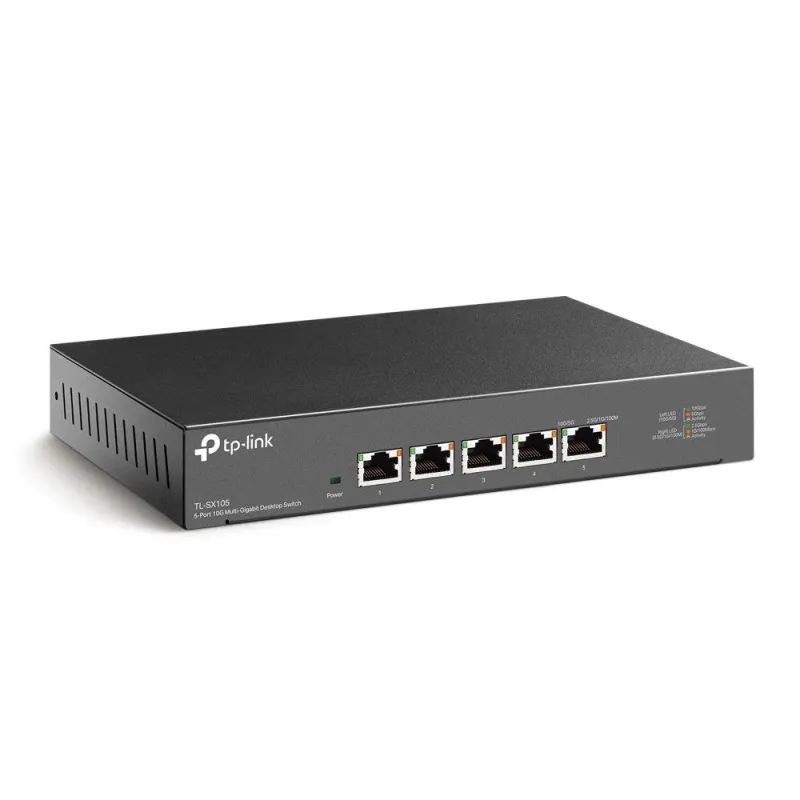

TP-LINK TL-SX105

5-Port 10G Desktop Switch

  • Five 10 Gbps Ports. 5× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 100 Gbps of switching capacity.
  • Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
  • Ideal for Various Scenarios. Built for lightning-fast connections in LAN parties, home entertainment, small and home offices, and workstations.
  • Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance.
  • Silent Operation. The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business.
  • Durable Metal Casing. Durable metal casing, desktop/wall-mounting, and professional heat dissipation design are well suited for different environments.

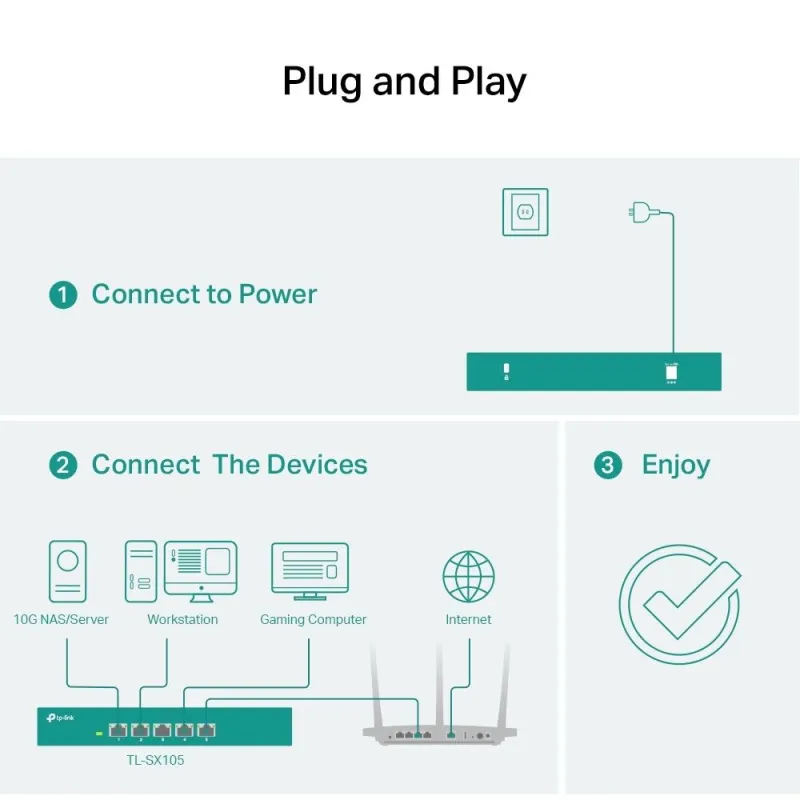

  • Plug and Play. Allows for easy deployment without the need for a technician.



Overview

TP-LINK TL-SX105  Unmanaged Switch 5-Port Desktop Switch ความเร็ว Multi-Gig 1Gbps/2.5Gbps/5Gbps/10Gbps เคสเหล็ก

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz

Interface

5× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity

Fanless

External Power Supply

External Power Adapter (Output: 12 VDC / 2.0 A)

LED Indicator

• System Power: 1
• Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port

Dimensions ( W x D x H )

8.9×5.2×1.4 in (226×131×35 mm)

Max Power Consumption

21.4 W

PERFORMANCE

Switching Capacity

100 Gbps

Packet Forwarding Rate

74.4 Mpps

MAC Address Table

32 K

Packet Buffer Memory

2 Mb

Jumbo Frame

10 KB

SOFTWARE FEATURES

Advanced Features

• 802.3X Flow Control
• 802.1p/DSCP QoS

Transfer Method

Store and Forward

OTHERS

Certification

CE, FCC ,RoHS

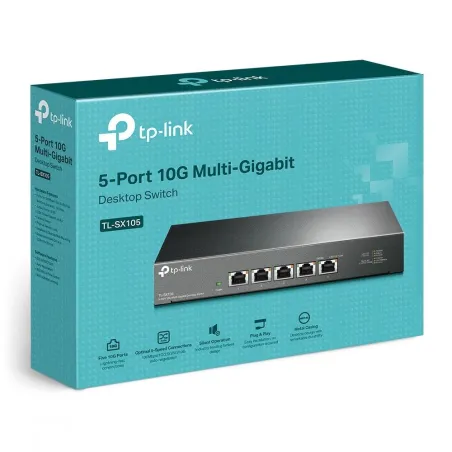

Package Contents

• 5-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX105
• Power Cord
• Installation Guide
• Rubber Feet

Environment

• Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

รับประกัน

Limited lifetime

รายละเอียดสินค้า
5 รายการ

ข้อมูลสินค้า

Layer Switch
UnManaged
ความเร็ว Port Lan
1Gbps (Gigabit)
2.5Gbps (Multi-Gigabit)
5Gbps (Multi-Gigabit)
จำนวน Port Lan
5 Port
