Product Specification

Overview

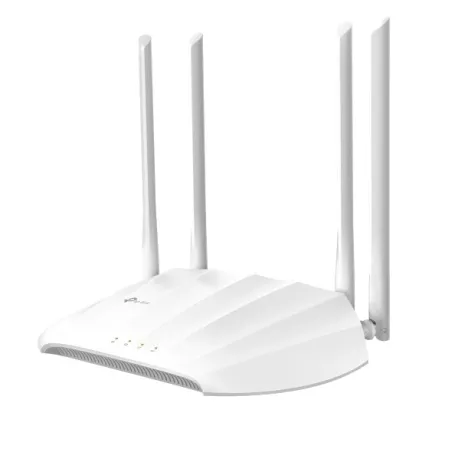

TP-LINK TL-WA1201 Wireless Access Point Dual-Radio กระจายสัญญาณ 2 ย่านความถี่ 2.4/5GHz มาตรฐาน AC ความเร็วสูงสุดรวม 1200Mbps เสาภายนอก 4 ต้นกระจายสัญญาณรอบทิศทาง , Captive portal, รองรับ POE

Interface

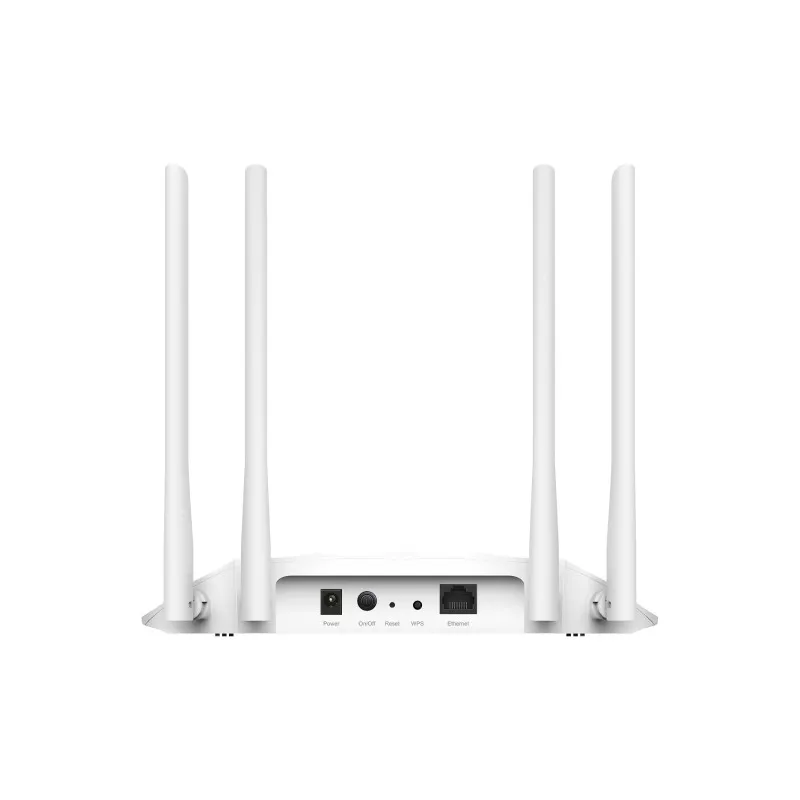

1× 10/100/1000 Mbps Ethernet Port
(Supports Passive PoE)

Button

Power On/Off Button, WPS Button, Reset Button

Power Supply

12V/1.5A

Dimensions

8.9 × 5.7 × 1.5 in (225×145.5×37 mm)

Antenna Type

4 Fixed High Performance Antennas

Wireless Standards

IEEE 802.11ac/n/g/b/a

Frequency

2.4GHz and 5GHz

Signal Rate

Version1/2: 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
Version3: 867 Mbps at 5 GHz, 400 Mbps at 2.4 GHz

Wireless Modes

Access Point, Range Extender, Client, Multi-SSID

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

Transmission Power

CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)
FCC: <30dBm(2.4GHz&5GHz))

DHCP

Server, DHCP Client List

Quality of Service

WMM

Advanced Functions

Captive Portal

Certification

CE, FCC, RoHS

Package Contents

Wireless Access Point TL-WA1201
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,
10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser

Environment

Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

รับประกัน

Limited lifetime
